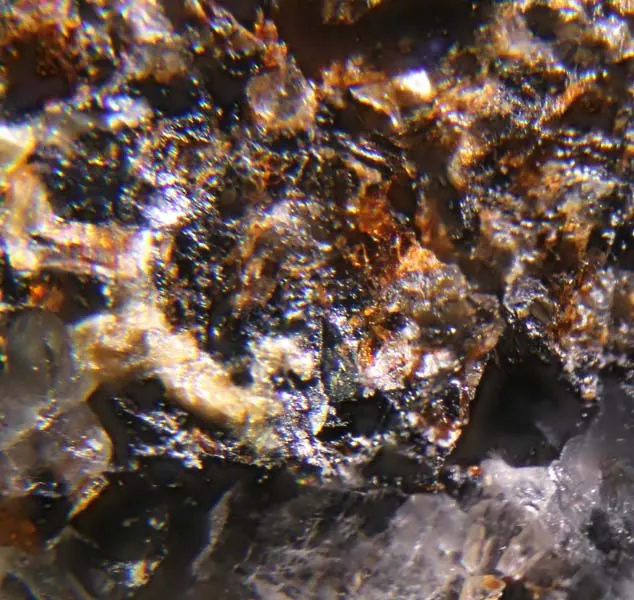

Alpeite

Ca4Mn3+2Al2(Mn3+Mg)(SiO4)2(Si3O10)(VO4)(OH)6
IMA status
  • Approved
IMA symbol
Apt
IMA approved
2016
Also known as
  • Alpeiet
  • Alpeitt
  • IMA2016-072

Where it forms, where it's found

Type locality
Monte Alpe Mine
  1. Mt. Alpe
  2. Maissana
  3. La Spezia Province
  4. Liguria
  5. Italy

44.3096°, 9.5205°

5recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105.5 – 6/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Brownish red
Streak
Beige
Tenacity
brittle
Cleavage
Perfect

Perfect cleavage on {1 0 0} and good cleavages on {0 1 0 and {0 0 1}

Density
3.374 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 73°
Refractive index
1.747 – 1.808
Surface relief
High
Principal indices
nα 1.747 · nβ 1.785 · nγ 1.808
Pleochroism
Visible

Y>Z>X in shades of reddish brown

Dispersion
r>v, strong
Michel-Lévy diagramhighlighted lineδ = 0.0610
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]610 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation610 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Orthorhombic
Space group
#69
Cell parameters
a = 8.942(1) Å · b = 6.0534(6) Å · c = 18.978(2) Å
Ratio a:b:c
1 : 0.677 : 2.122
Unit cell volume
1027.29 ų
Z
2
Morphology

Intergrowths of plates, flattened on {1 0 0} and exhibiting the forms {1 0 0}, {0 0 1}, {0 1 2} and {1 0 2}.

Parting
With a curved and stepped fracture
Type-locality form

Intergrowths of plates, flattened on {1 0 0} and exhibiting the forms {1 0 0}, {0 0 1}, {0 1 2} and {1 0 2}.

Comment

Space group setting is Pnmm

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen2815.999447.972
42.71%
25MnManganeseManganese354.938164.814
15.71%
20CaCalciumCalcium440.078160.312
15.29%
14SiSiliconSilicon528.085140.425
13.39%
13AlAluminiumAluminium226.98253.964
5.14%
23VVanadiumVanadium150.94250.942
4.86%
12MgMagnesiumMagnesium124.30524.305
2.32%
1HHydrogenHydrogen61.0086.048
0.58%
Total1048.782100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Alpeiet
  • Alpeitt
  • IMA2016-072

In other languages

German
Alpeit · IMA 2016-072

Classification

Strunz
10th ed.

9.BJ.40

  • 9SilicatesClass
  • 9.BSorosilicatesDivision
  • 9.BJSorosilicates with Si3O10, Si4O11, etc. anions; cations in octahedral [6] and greater coordinationGroup
  • 9.BJ.40AlpeiteSpecies

Group, growth & confusion

In the same group
3 members

Literature, links & citation

Citations
  1. 2016Hålenius, U., Hatert, F., Pasero, M., Mills, S. J. (2016) New minerals and nomenclature modifications approved in 2016, CNMNC Newsletter No 34. Mineralogical Magazine, 80 (7) 1315-1321 doi:10.1180/minmag.2016.080.086DOI: 10.1180/minmag.2016.080.086
  2. 2017Kampf, Anthony R., Carbone, Cristina, Belmonte, Donato, Nash, Barbara P., Chiappino, Luigi, Castellaro, Fabrizio (2017) Alpeite, Ca4Mn3+2Al2(Mn3+Mg)(SiO4)2(Si3O10)(V5+O4)(OH)6, a new ardennite-group mineral from Italy. European Journal of Mineralogy, 29 (5). 907-914 doi:10.1127/ejm/2017/0029-2636DOI: 10.1127/ejm/2017/0029-2636
  3. 2020(2020) Alpeite. Handbook of Mineralogy. Mineralogical Society of America
