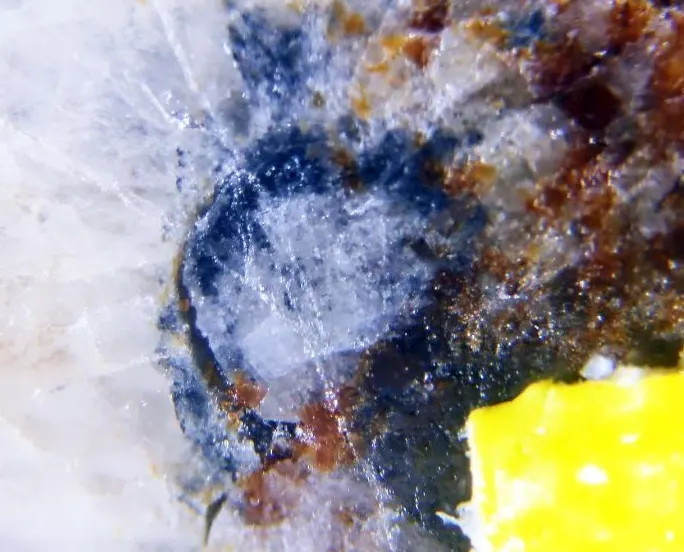

Alumotantite

AlTaO4
IMA status
  • Approved
IMA symbol
Atan
Discovered
1981
Also known as
  • Alumotantiet
  • Alumotantitt
  • IMA1980-025

Where it forms, where it's found

Geological setting

Albitized area of a highly fractionated rare element-enriched granite pegmatite.

In albitized areas of highly fractionated rare element-enriched granite pegmatites

Type locality
Vasin-Myl'k Mt
  1. Voron'i Tundry
  2. Murmansk Oblast
  3. Russia

68.3833°, 35.8633°

4recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789107.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Colourless to white
Streak
White
Cleavage
None Observed
Density
7.48 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 66°
Reflectance R%
(15.6%, 14.7%) 486 nm, (15.4%, 14.6%) 589 nm, (15.9%, 15.1%) 656 nm
UV response
Bright blue cathodoluminescence. No UV fluorescence.

Crystallography

Crystal system
Orthorhombic
Space group
#63
Cell parameters
a = 4.475 Å · b = 11.308 Å · c = 4.771 Å
Ratio a:b:c
1 : 2.527 : 1.066
Z
4
Morphology

As euhedral to subhedral, elongated crystals to 1 mm, with rhombic to rectangular cross-section. As rims and parallel oriented intergrowths on simpsonite, also rims around natrotantite, which in turn rims simpsonite crystals

Type-locality form

Forms rims around crystals of simpsonite and also rims natrotantite.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
73TaTantalumTantalum1180.948180.948
66.54%
8OOxygenOxygen415.99963.996
23.54%
13AlAluminiumAluminium126.98226.982
9.92%
Total271.926100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Sn

Synonyms

  • Alumotantiet
  • Alumotantitt
  • IMA1980-025

In other languages

German
Alumotantit · IMA 1980-025
Italian
alumotantite

Classification

Strunz
10th ed.

4.DB.55

  • 4OxidesClass
  • 4.DMetal: Oxygen = 1:2 and similarDivision
  • 4.DBWith medium-sized cations; chains of edge-sharing octahedraGroup
  • 4.DB.55AlumotantiteSpecies
Dana
8th ed.

08.01.07.01

  • 08Multiple Oxides Containing Niobium, Tantalum or TitaniumClass
  • 08.01ABO4Type
  • 08.01.07— unnamed intermediate level —Group
  • 08.01.07.01AlumotantiteSpecies
CIM

18.1.18

  • 18Niobates and TantalatesClass
  • 18.1Niobates and tantalates containing neither rare earths nor UGroup
  • 18.1.18AlumotantiteSpecies

Literature, links & citation

Citations
  1. 1981Voloshin, A.V., Men'shikov, Y.P., Pakhomovskii, Y.A. (1981) Alumotantite and natrotantite, new tantalum minerals in granitic pegmatites. Zapiski Vsesoyuznogo Mineralogicheskogo Obshchestva: 110: 338-345.
  2. 1981Voloshin, A.V., Men'shikov, Y.P., Pakhomovskii, Y.A. (1981) Alumotantite and natrotantite, new tantalum minerals in granitic pegmatites. Zapiski Vsesoyuznogo Mineralogicheskogo Obshchestva: 110: 338-345. [in Russian]
  3. 1982Fleischer, M., Burns, R.G., Cabri, L.J., Francis, C.A., Pabst, A. (1982) New mineral names. American Mineralogist, 67, 413-418.
  4. 1992Ercit, T. S., Hawthorne, F. C., Černý, P. (1992) The crystal structure of alumotantite: its relation to the structures of simpsonite and the (Al,Ga)(Ta,Nb)O4 compounds. The Canadian Mineralogist, 30 (3) 653-662
  5. 1993Jambor, L., Burke, Ernst A. J. (1993) New Mineral Names. American Mineralogist, 78 (7-8) 845-849
