Amstallite

CaAl[(Al,Si)4O8(OH)2](OH)2 · (H2O,Cl)
IMA status
  • Approved
IMA symbol
Ams
Discovered
1987
Also known as
  • Amstalliet
  • Amstallitt
  • IMA1986-030

Where it forms, where it's found

Geological setting

In open fissures cutting pegmatitic schlieren, in hydrothermally altered graphite-bearing metamorphic rocks.

Type locality
Graphite quarry
  1. Amstall
  2. Mühldorf
  3. Krems-Land District
  4. Lower Austria
  5. Austria

48.3775°, 15.3022°

1recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103 – 5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Colourless
Tenacity
brittle
Cleavage
Distinct/Good

good on (100)

Fracture
Conchoidal
Density
2.40 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 57 – 59° · 2V calc = 54°
Refractive index
1.533 – 1.538
Surface relief
Moderate
Principal indices
nα 1.533 · nβ 1.534 · nγ 1.538
Dispersion
r > v weak
Michel-Lévy diagramhighlighted lineδ = 0.0050
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]50 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation50 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
C2/c
Cell parameters
a = 18.83 Å · b = 11.51 Å · c = 5.19 Å
Cell angles
β = 100.86 °
Ratio a:b:c
1 : 0.611 : 0.276
Z
4
Morphology

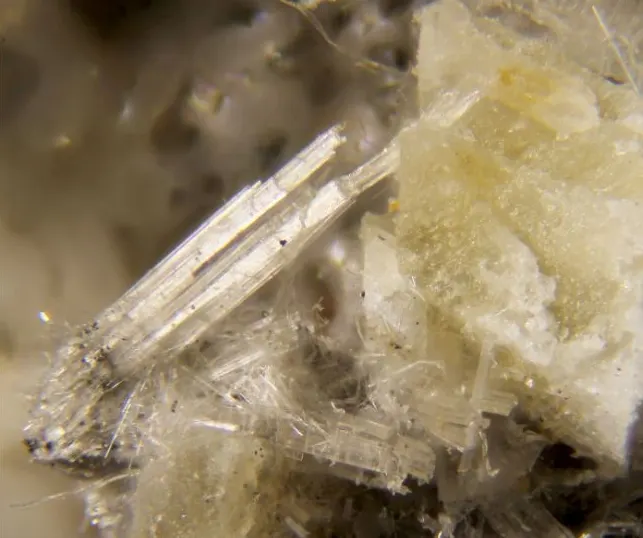

As acicular prismatic crystals, to 1 cm, elongated and commonly striated parallel to [001], with cross sections appearing rhombohedral or hexagonal.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1315.999207.987
38.74%
13AlAluminiumAluminium526.982134.910
25.13%
14SiSiliconSilicon428.085112.340
20.93%
20CaCalciumCalcium140.07840.078
7.47%
17ClChlorineChlorine135.45035.450
6.60%
1HHydrogenHydrogen61.0086.048
1.13%
Total536.813100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Amstalliet
  • Amstallitt
  • IMA1986-030

In other languages

German
Amstallit · IMA 1986-030
Italian
amstallite

Classification

Strunz
10th ed.

9.DP.25

  • 9SilicatesClass
  • 9.DInosilicatesDivision
  • 9.DPTransitional ino-phyllosilicate structuresGroup
  • 9.DP.25AmstalliteSpecies
Dana
8th ed.

72.01.04.01

  • 72Phyllosilicates Two-dimensional Infinite Sheets with Other Than Six-membered RingsClass
  • 72.01Two-Dimensional Infinite Sheets with Other Than Six-Membered Rings with 4-membered ringsType
  • 72.01.04— unnamed intermediate level —Group
  • 72.01.04.01AmstalliteSpecies
CIM

16.9.32

  • 16Silicates Containing Aluminum and other MetalsClass
  • 16.9Aluminosilicates of CaGroup
  • 16.9.32AmstalliteSpecies

Literature, links & citation

Citations
  1. 1987Quint, R. (1987): Description and crystal structure of amstallite, CaAl(OH)2[Al0.8Si3.2O8(OH)2]·[(H2O)0.8Cl0.2], a new mineral from Amstall, Austria. Neues Jahrbuch für Mineralogie, Monatshefte 1987, 253-262.
  2. 1988Jambor, John L., Ercit, Ernst A. J. Burke T. Scott, Grice, Joel D. (1988) New Mineral Names. American Mineralogist, 73 (11-12) 1492-1499
  3. 2001(2001) Amstallite. Handbook of Mineralogy. Mineralogical Society of America
