Anorthoyttrialite-(Y)

Y4(SiO4)(Si3O10)
IMA status
  • Approved
IMA symbol
Aytt-Y
IMA approved
2023
Also known as
  • Anorthoyttrialiet-(Y)
  • Anorthoyttrialit-(Y)
  • Anortoyttrialitt-(Y)

Where it forms, where it's found

Geological setting

inclusions in yttrian fluorite from the Stetind NYF pegmatite,

Type locality
Stetind pegmatite
  1. Narvik
  2. Nordland
  3. Norway

68.1736°, 16.5547°

2recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789104/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
colourless or white · yellow or brownish.
Streak
white
Tenacity
brittle
Cleavage
Distinct/Good

(001) cleavage plane

Fracture
Irregular/Uneven
Density
5.1 g/cm³

Optical

Optical type
Biaxial (-) · 2V calc = 39.09°
Refractive index
1.705 – 1.756
Surface relief
High
Principal indices
nα 1.705 · nβ 1.750 · nγ 1.756
Pleochroism
Non-pleochroic
Dispersion
none
Michel-Lévy diagramhighlighted lineδ = 0.0510
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]510 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation510 nm
Order1st order
XPL colour

Crystallography

Crystal system
Triclinic
Space group
#2
Cell parameters
a = 6.6107(4) Å · b = 6.7139(3) Å · c = 12.2034(9) Å
Cell angles
α = 94.819(3) ° · β = 90.583(3) ° · γ = 91.742(3) °
Ratio a:b:c
1 : 1.016 : 1.846
Z
2

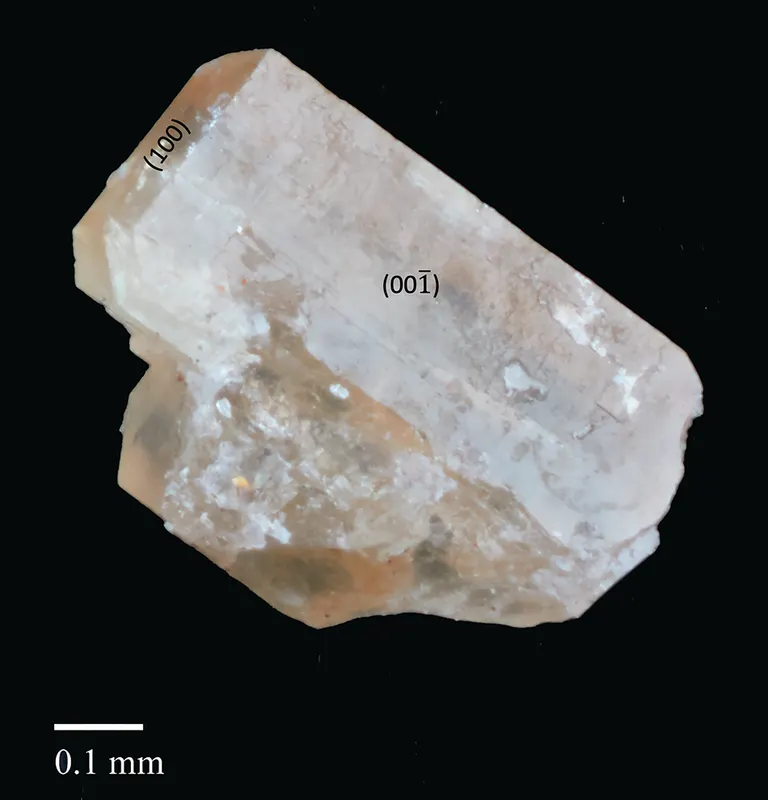

Type-locality form

tabular or needle shaped crystals sub- to euhedral crystals included in the fluorite aggregates, as well as euhedral crystals on the walls of small cavities in the fluorite. of maximum dimension 2 mm.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
39YYttriumYttrium488.906355.624
51.39%
8OOxygenOxygen1415.999223.986
32.37%
14SiSiliconSilicon428.085112.340
16.24%
Total691.950100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Anorthoyttrialiet-(Y)
  • Anorthoyttrialit-(Y)
  • Anortoyttrialitt-(Y)

In other languages

German
Anorthoyttrialith-(Y)

Classification

Strunz
10th ed.

9.BC

  • 9SilicatesClass
  • 9.BSorosilicatesDivision
  • 9.BCSi2O7 groups, without non-tetrahedral anions; cations in octahedral [6] and greater coordinationGroup
  • 9.BCAnorthoyttrialite-(Y)Species

Literature, links & citation

Citations
  1. 1970Felsche, J. (1970) Crystal data on the polymorphic disilicate Y2Si2O7. Die Naturwissenschaften, 57 (3). 127-128 doi:10.1007/bf00600051DOI: 10.1007/bf00600051
  2. 2008Dolan, M. D.; Harlan, B.; White, J. S.; Hall, M.; Misture, S. T.; Bancheri, S. C.; Bewlay, B. (2008) Structures and anisotropic thermal expansion of the α, β, γ, and δ polymorphs of Y2Si2O7. Powder Diffraction, 23 (1). 20-25 doi:10.1154/1.2825308DOI: 10.1154/1.2825308
  3. 2008Kahlenberg, V., Wertl, W., Többens, D. M., Kaindl, R., Schuster, P., Schottenberger, H. (2008) Rietveld Analysis and Raman Spectroscopic Investigations on α-Y2Si2O7. Zeitschrift für anorganische und allgemeine Chemie, 634. 1166-1172 doi:10.1002/zaac.200700548DOI: 10.1002/zaac.200700548
  4. 2023Bosi, Ferdinando, Hatert, Frédéric, Pasero, Marco, Mills, Stuart J. (2023) Newsletter 72. Mineralogical Magazine, 87 (3) 512-518 doi:10.1180/mgm.2023.21DOI: 10.1180/mgm.2023.21
  5. 2025Malcherek, Thomas; Schlüter, Jochen; Husdal, Tomas (2025) Anorthoyttrialite-(Y), Y4(SiO4)(Si3O10), a natural representative of B-type rare earth disilicates. Mineralogical Magazine, 89 (3). 428-442 doi:10.1180/mgm.2024.106DOI: 10.1180/mgm.2024.106
