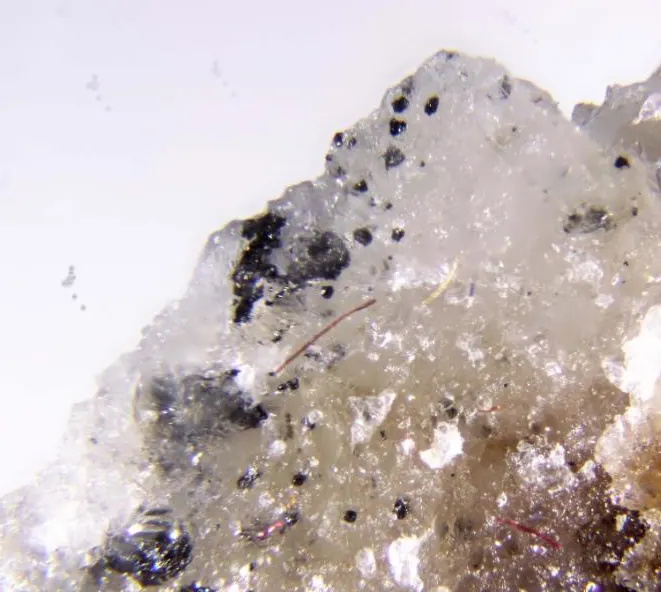

Armangite

Mn2+26[As3+6(OH)4O14][As3+6O18]2(CO3)
IMA status
  • Approved
  • Grandfathered
IMA symbol
Amg
Discovered
1920
Also known as
  • Armangiet
  • Armangitt

Where it forms, where it's found

Geological setting

Museum specimen collected from a metamorphosed Fe-Mn deposit

Type locality
Långban Mine
  1. Långban Ore District
  2. Filipstad
  3. Värmland County
  4. Sweden

59.8554°, 14.2648°

3recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789104/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Opaque
Colour
Black to pale brown · yellow to brown in transmitted light
Streak
Brown
Cleavage
Imperfect/Fair

Fair to poor on (0001).

Density
4.43 g/cm³

Optical

Optical type
Uniaxial (-)
Refractive index
1.99 – 2.01
Surface relief
Very high
Principal indices
nω 2.01 · nε 1.99
Pleochroism
Non-pleochroic
Michel-Lévy diagramhighlighted lineδ = 0.0200
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]200 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation200 nm
Order1st order
XPL colour

Crystallography

Crystal system
Trigonal
Space group
#79
Cell parameters
a = 13.491 Å · c = 8.855 Å
Z
1
Morphology

Crystals short hexagonal prisms, terminated by a trigonal pyramid

Twinning

on (1120).

Type-locality form

tiny prismatic crystals

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
25MnManganeseManganese2654.9381428.388
38.55%
33AsArsenicArsenic1874.9221348.596
36.40%
8OOxygenOxygen5715.999911.943
24.61%
6CCarbonCarbon112.01112.011
0.33%
1HHydrogenHydrogen41.0084.032
0.11%
Total3704.970100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Fe
  • Pb
  • Sb

Synonyms

  • Armangiet
  • Armangitt

In other languages

German
Armangit
Italian
Armangite

Classification

Strunz
10th ed.

4.JB.20

  • 4OxidesClass
  • 4.JArsenites, antimonites, bismuthites, sulfites, selenites, tellurites; iodatesDivision
  • 4.JBArsenites, antimonites, bismuthites; with additional anions, without H2OGroup
  • 4.JB.20ArmangiteSpecies
Dana
8th ed.

46.02.07.01

  • 46Antimonites and Arsenites Containing Hydroxyl or HalogenClass
  • 46.02MiscellaneousType
  • 46.02.07— unnamed intermediate level —Group
  • 46.02.07.01ArmangiteSpecies
CIM

23.17

  • 23ArsenitesClass
  • 23.17— unnamed intermediate level —Group
  • 23.17ArmangiteSpecies

Literature, links & citation

Citations
  1. 1920Aminoff, G., Mauzelius, R. (1920) Armangite, a new arsenite from Långbanshyttan. Geologiska Föreningen i Stockholm Förhandlingar, 42 (5) 301-309 doi:10.1080/11035892009444471DOI: 10.1080/11035892009444471
  2. 1921Wherry, E.T., Gordon, S.G., Foshag, W.F. (1921) New minerals. American Mineralogist: 6: 63-68.
  3. 1933Aminoff (1933) Svenska Vetenskapsakademien, Stockholm, Handlingar: [3], 11(4): 19.
  4. 1934Larsen, E.S.; Berman, H. (1934) The microscopic determination of the nonopaque minerals. Bulletin of the US Geological Survey Vol. 848. US Geological Survey p.1-266. doi:10.3133/b848 DOI: 10.3133/b848
  5. 1951Palache, Charles; Berman, Harry; Frondel, Clifford (1951) The System of Mineralogy (7th ed.) Vol. 2 - Halides, Nitrates, Borates, Carbonates, Sulfates, Phosphates, Arsenates, Tungstates, Molybdates, Etc. John Wiley and Sons.
