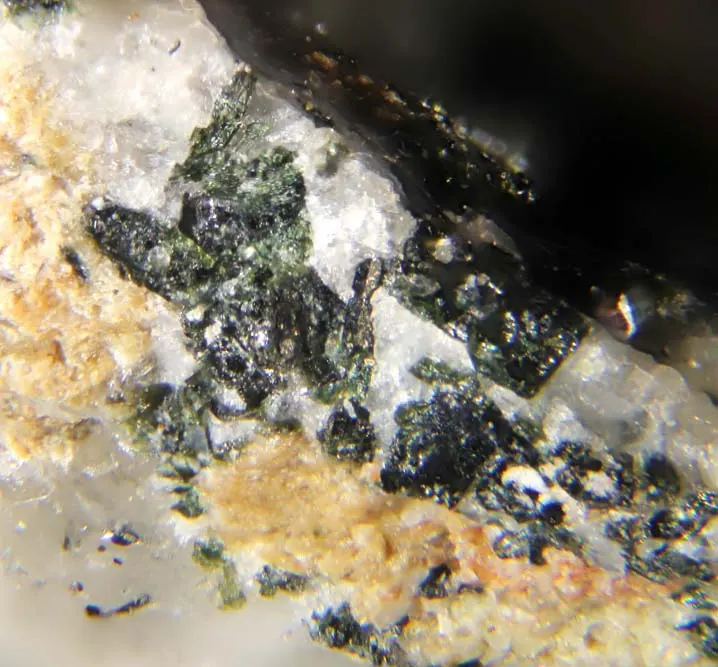

Armstrongite

CaZr(Si6O15) · 2H2O
IMA status
  • Approved
IMA symbol
Asg
Discovered
1973
Also known as
  • Armstrongiet
  • Armstrongitt
  • IMA1972-018

Where it forms, where it's found

Geological setting

In schlieren of alkalic granite pegmatite, at the contact of arfvedsonite-bearing granite with xenoliths of felsic volcanic rock.

Alkalic granites

Type locality
Dorozhnyi pegmatite
  1. Khan Bogd Peralkaline Granite
  2. Khanbogd District
  3. Ömnögovi Province
  4. Mongolia
7recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789104.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Dark to light brown
Streak
Brownish white
Tenacity
very brittle
Cleavage
Very Good

Perfect on (001) Good on (100)

Density
2.562 g/cm³

Optical

Optical type
Biaxial (-)
Refractive index
1.563 – 1.573
Surface relief
Moderate
Principal indices
nα 1.563 · nβ 1.569 · nγ 1.573
Dispersion
strong r < v
Michel-Lévy diagramhighlighted lineδ = 0.0100
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]100 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation100 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
C2/m
Cell parameters
a = 14.04 Å · b = 14.16 Å · c = 7.81 Å
Cell angles
β = 109.55 °
Ratio a:b:c
1 : 1.009 : 0.556
Z
4
Morphology

Crystals to 2cm, aggregates

Twinning

Polysynthetic, by rotation on [100]

Type-locality form

As columnar crystals elongated along [010], to 2 cm, and as tangled-fibrous aggregates

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1715.999271.983
47.23%
14SiSiliconSilicon628.085168.510
29.27%
40ZrZirconiumZirconium191.22491.224
15.84%
20CaCalciumCalcium140.07840.078
6.96%
1HHydrogenHydrogen41.0084.032
0.70%
Total575.827100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Ti
  • Al
  • Y
  • TR
  • Fe
  • Mg
  • Na
  • K

Synonyms

  • Armstrongiet
  • Armstrongitt
  • IMA1972-018

In other languages

German
Armstrongit · IMA 1972-018
Italian
Armstrongite
Chinese
水硅钙锆石
Russian
армстронгит

Classification

Strunz
10th ed.

9.EA.35

  • 9SilicatesClass
  • 9.EPhyllosilicatesDivision
  • 9.EASingle nets of tetrahedra with 4-, 5-, (6-), and 8-membered ringsGroup
  • 9.EA.35ArmstrongiteSpecies
Dana
8th ed.

72.05.04.01

  • 72Phyllosilicates Two-dimensional Infinite Sheets with Other Than Six-membered RingsClass
  • 72.05Two-Dimensional Infinite Sheets with Other Than Six-Membered Rings with corrugated and complex layersType
  • 72.05.04Elpidite/armstrongiteGroup
  • 72.05.04.01ArmstrongiteSpecies
CIM

14.10.22

  • 14Silicates not Containing AluminumClass
  • 14.10Silicates of Zr or HfGroup
  • 14.10.22ArmstrongiteSpecies

Literature, links & citation

Citations
  1. Soviet Physics – Crystallography: 23: 593.
  2. 1973Vladykin, N.V., Kovalenko, V.I., Kashaev, A.A., Sapozhnikov, A.N., Pisarskaya, V.A. (1973) A new silicate of calcium and zirconium – armstrongite. Doklady Akademii Nauk SSSR: 209: 1185-1188.
  3. 1974Fleischer, Michael (1974) New mineral names. American Mineralogist, 59 (1-2). 208-212
  4. 1987Jambor, John L.; Roberts, Andrew C.; Grice, Joel D. (1987) Armstrongite from the Strange Lake Alkalic Complex, on the Quebec – Labrador Boundary, Canada. Powder Diffraction, 2 (1). 2-4 doi:10.1017/s0885715600012148DOI: 10.1017/s0885715600012148
  5. 2000Pushcharovsky, D.Yu., Kabalov, K., Zubkova, N.V., Schneider, J., Sapozhnikov, A.N. (2000) Powder Rietveld refinement of armstrongite, CaZr[Si6O15]·3H2O. Zeitschrift für Kristallographie, 215 (12). 757-761 doi:10.1524/zkri.2000.215.12.757DOI: 10.1524/zkri.2000.215.12.757
