Arsenuranylite

Ca(UO2)4(AsO4)2(OH)4 · 6H2O
IMA status
  • Approved
  • Grandfathered
IMA symbol
Auy
Discovered
1958
Also known as
  • Arsenuranyliet
  • Arsenuranylita
  • Arsénuranylite
  • +1 more

Where it forms, where it's found

Geological setting

oxidized zone of a uranium deposit containing arsenic-bearing sulfides

Type locality
Cherkasar U Deposit
  1. Pop District
  2. Namangan Region
  3. Uzbekistan
6recorded occurrences
Source · OpenStreetMap

Radioactivity

Physical

Hardness
123456789102 – 3/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Orange
Cleavage
Perfect

One, perfect

Density
4.25 g/cm³

Optical

Optical type
Biaxial (-)
Refractive index
1.738 – 1.774
Surface relief
High
Principal indices
nα 1.738 · nβ 1.761 · nγ 1.774
Dispersion
r > v moderate
Notes

yellow in transmitted light.

Michel-Lévy diagramhighlighted lineδ = 0.0360
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]360 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation360 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Cell parameters
a = 15.40 Å · b = 17.40 Å · c = 13.77 Å
Ratio a:b:c
1 : 1.130 : 0.894
Z
6
Type-locality form

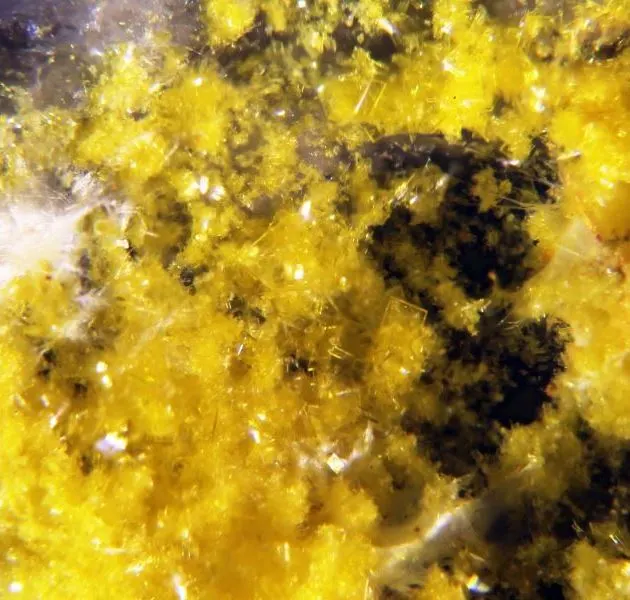

As fine scales and lichenlike incrustations of elongated crystals, to 0.5 mm.

Comment

Space Group: Bmmb.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
92UUraniumUranium4238.029952.116
60.48%
8OOxygenOxygen2615.999415.974
26.43%
33AsArsenicArsenic274.922149.844
9.52%
20CaCalciumCalcium140.07840.078
2.55%
1HHydrogenHydrogen161.00816.128
1.02%
Total1574.140100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Arsenuranyliet
  • Arsenuranylita
  • Arsénuranylite
  • Arsenuranylitt

In other languages

German
Arsenuranylit
Italian
arsenuranilite

Classification

Strunz
10th ed.

8.EC.10

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.EUranyl phosphates and arsenatesDivision
  • 8.ECUO2:RO4 = 3:2Group
  • 8.EC.10ArsenuranyliteSpecies
Dana
8th ed.

42.04.09.01

  • 42Hydrated Phosphates, Etc.containing Hydroxyl or HalogenClass
  • 42.04(AB)5(XO4)2Zq·xH2OType
  • 42.04.09Arsenuranylite GroupGroup
  • 42.04.09.01ArsenuranyliteSpecies
CIM

20.7.8

  • 20Arsenates (also arsenates with phosphate, but without other anions)Class
  • 20.7Arsenates of UGroup
  • 20.7.8ArsenuranyliteSpecies

Literature, links & citation

Citations
  1. American Mineralogist: 44: 208.
  2. 1958Belova, L. N. (1958): Arsenuranylite, the arsenic analog of phosphuranylite. Zapiski Vserossiiskogo Mineralogicheskogo Obshchestva 87, 598-602. (in Russian).
  3. 2005(2005) Arsenuranylite. Handbook of Mineralogy. Mineralogical Society of America
