Artroeite

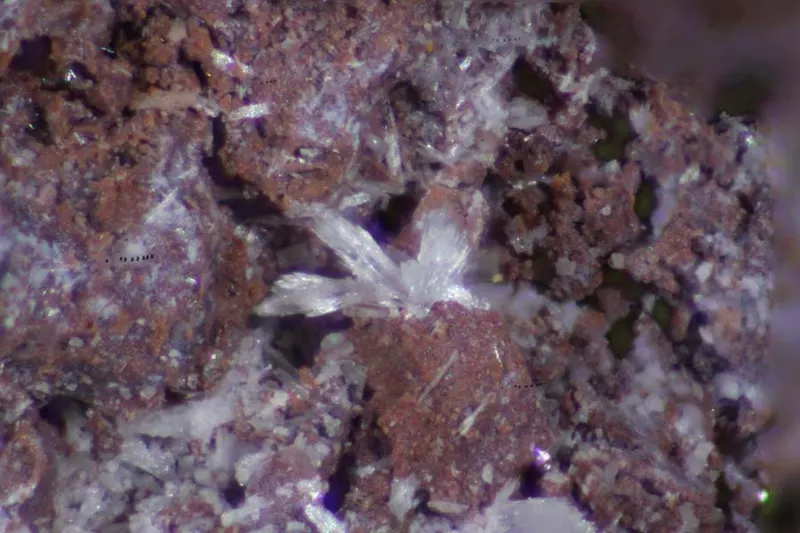

PbAlF3(OH)2
IMA status
  • Approved
IMA symbol
Ate
Discovered
1993
IMA approved
1993
Also known as
  • Artroeiet
  • Artroeitt
  • IMA1993-031

Where it forms, where it's found

Geological setting

Oxidized zone of an epithermal Cu-Pb-Ag deposit

Type locality
Grand Reef Mine
  1. Laurel Canyon
  2. Grand Reef Mountain
  3. Klondyke
  4. Aravaipa Mining District
  5. Graham County
  6. Arizona
  7. USA

32.8825°, -110.3175°

3recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789102.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous
Transparency
Translucent
Colour
Colourless
Streak
White
Tenacity
brittle
Cleavage
Perfect

on (100), good on (010)

Fracture
Conchoidal
Density
5.36 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 41 – 42° · 2V calc = 42°
Refractive index
1.629 – 1.691
Surface relief
High
Principal indices
nα 1.629 · nβ 1.682 · nγ 1.691
Dispersion
r > v, strong
Michel-Lévy diagramhighlighted lineδ = 0.0620
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]620 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation620 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Triclinic
Space group
#2
Cell parameters
a = 6.27 Å · b = 6.821 Å · c = 5.057 Å
Cell angles
α = 90.68 ° · β = 107.69 ° · γ = 104.46 °
Ratio a:b:c
1 : 1.088 : 0.807
Z
2
Morphology

Crystals bladed, flat tabular on (101), elongated along [010], with forms (100), (010), (001), (101), (011), (111) and (121)

Twinning

Common, by rotation about [010] with composition plane (100)

Type-locality form

Bladed, tabular crystals to 1 mm

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
82PbLeadLead1207.200207.200
63.72%
9FFluorineFluorine318.99856.994
17.52%
8OOxygenOxygen215.99931.998
9.84%
13AlAluminiumAluminium126.98226.982
8.30%
1HHydrogenHydrogen21.0082.016
0.62%
Total325.190100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Artroeiet
  • Artroeitt
  • IMA1993-031

In other languages

French
Artroeite
German
Artroeit · IMA 1993-031
Italian
Artroeite
Chinese
羟氟铝铅矿
Arabic
آرترويت · أرتروايت

Classification

Strunz
10th ed.

3.CC.15

  • 3HalidesClass
  • 3.CComplex halidesDivision
  • 3.CCSoro-aluminofluoridesGroup
  • 3.CC.15ArtroeiteSpecies
Dana
8th ed.

11.06.18.01

  • 11Halide ComplexesClass
  • 11.06Aluminofluorides - Isolated OctahedraType
  • 11.06.18— unnamed intermediate level —Group
  • 11.06.18.01ArtroeiteSpecies

Literature, links & citation

Citations
  1. 1995Kampf, Anthony R., Foord, Eugene E. (1995) Artroeite, PbAlF3(OH)2, a new mineral from the Grand Reef Mine, Graham County, Arizona; description and crystal structure. American Mineralogist, 80 (1) 179-183 doi:10.2138/am-1995-1-218 DOI: 10.2138/am-1995-1-218
  2. 1996Foord, Eugene E., Kampf, Anthony R. (1996) Calcioaravaipaite, a New Mineral, and Associated Lead Fluoride Minerals from the Grand Reef Mine, Graham County, Arizona. The Mineralogical Record, 27 (4) 293-300
  3. 1997Anthony, John Williams, Bideaux, Richard A., Bladh, Kenneth W., Nichols, Monte C. - Ed. (1997) Handbook of Mineralogy Vol. 3 - Halides, Hydroxides, Oxides. Mineral Data Publishing, Tucson, Arizona. p.1-682.
  4. 2005(2005) Artroeite. Handbook of Mineralogy. Mineralogical Society of America
