Asbecasite

Ca3TiAs6Be2Si2O20
IMA status
  • Approved
IMA symbol
Abc
Discovered
1963
IMA approved
1966
Also known as
  • Abbecasit
  • Abbecasita
  • Abbecasite
  • +2 more

Where it forms, where it's found

Geological setting

Alpine veins.

Type locality
Wanni glacier - Scherbadung area (Monte Cervandone)
  1. Binn
  2. Goms
  3. Valais
  4. Switzerland

46.3289°, 8.2164°

9recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789106.5 – 7/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Yellow · pale yellow
Streak
Pale yellow
Tenacity
brittle
Cleavage
Perfect

Rhombohedral (1011)

Density
3.70 g/cm³

Optical

Optical type
Uniaxial (-) · 2V measured = 17°
Refractive index
1.83 – 1.86
Surface relief
Very high
Principal indices
nω 1.86 · nε 1.83
Birefringence
0.03
Extinction
Parallel
UV response
Not fluorescent
Michel-Lévy diagramhighlighted lineδ = 0.0300
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]300 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation300 nm
Order1st order
XPL colour

Crystallography

Crystal system
Trigonal
Space group
#83
Cell parameters
a = 8.364 Å · c = 15.304 Å
Z
2
Morphology

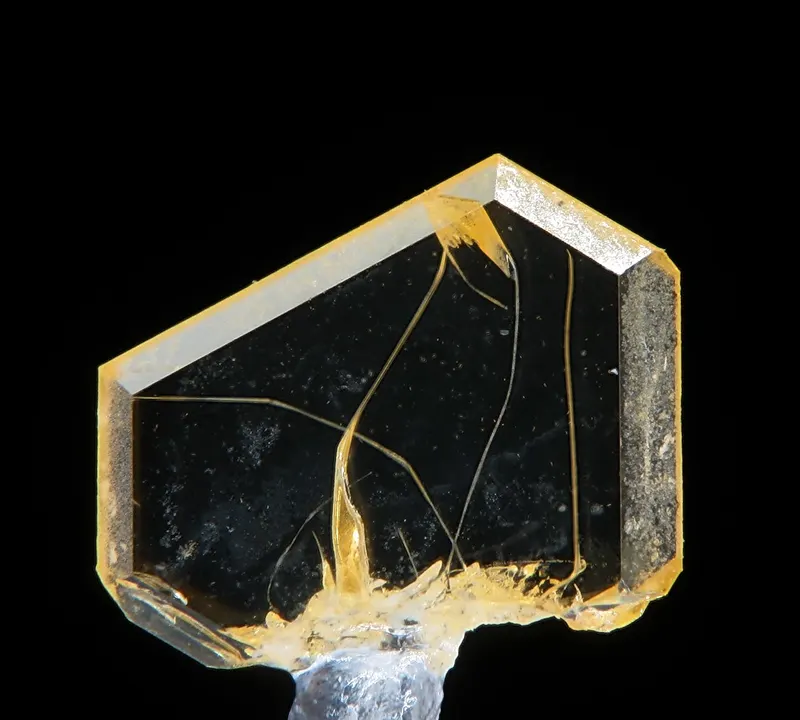

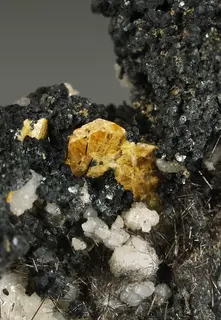

Tabular rhombohedral, sometimes equant.

Type-locality form

Rhombohedral crystals up to 5 mm in size.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
33AsArsenicArsenic674.922449.532
44.43%
8OOxygenOxygen2015.999319.980
31.63%
20CaCalciumCalcium340.078120.234
11.88%
14SiSiliconSilicon228.08556.170
5.55%
22TiTitaniumTitanium147.86747.867
4.73%
4BeBerylliumBeryllium29.01218.024
1.78%
Total1011.807100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Abbecasit
  • Abbecasita
  • Abbecasite
  • Asbecasiet
  • IMA1965-037

In other languages

German
Asbecasit · IMA1965-037
Italian
Asbecasite

Classification

Strunz
10th ed.

4.JB.30

  • 4OxidesClass
  • 4.JArsenites, antimonites, bismuthites, sulfites, selenites, tellurites; iodatesDivision
  • 4.JBArsenites, antimonites, bismuthites; with additional anions, without H2OGroup
  • 4.JB.30AsbecasiteSpecies
Dana
8th ed.

45.01.03.01

  • 45Acid and Normal Antimonites and ArsenitesClass
  • 45.01MiscellaneousType
  • 45.01.03— unnamed intermediate level —Group
  • 45.01.03.01AsbecasiteSpecies
CIM

17.7.9

  • 17Silicates Containing other AnionsClass
  • 17.7Silicates with vanadate, arsenate or antimonateGroup
  • 17.7.9AsbecasiteSpecies

Literature, links & citation

Citations
  1. 1966Graeser, S. (1966): Asbecasit und Cafarsit, zwei neue Mineralien aus dem Binnatal (Kt. Wallis). Schweizerische Mineralogische und Petrographische Mitteilungen 46, 367-375 (in German).
  2. 1967Fleischer, M. (1967) New Mineral Names. American Mineralogist, 52 (9-10) 1579-1589
  3. 1970Fleischer, M., Nickel, E.H. (1970) New mineral names. American Mineralogist: 55: 1810-1818.
  4. 1993Sacerdoti, M., Parodi, G.C., Mottana, A., Maras, A., Ventura, G.D. (1993) Asbecasite: crystal structure refinement and crystal chemistry. Mineralogical Magazine: 57: 315-322.
  5. 2001(2001) Asbecasite. Handbook of Mineralogy. Mineralogical Society of America
