Ashburtonite

HCu4Pb4Si4O12(HCO3)4(OH)4Cl
IMA status
  • Approved
IMA symbol
Ahb
Discovered
1991
Also known as
  • Ashburtoniet
  • Ashburtonitt
  • IMA1990-033

Where it forms, where it's found

Geological setting

An assemblage of secondary minerals in a weathered shear zone that cuts a series of shales and graywackes.

Type locality
Mineral Claim 84 Cu deposit (Anticline prospect)
  1. Ashburton Downs Station
  2. Ashburton Shire
  3. Western Australia
  4. Australia

-23.4119°, 116.9573°

5recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Lustre
Adamantine
Transparency
Transparent
Colour
Blue
Streak
Pale blue
Tenacity
very brittle
Cleavage
None Observed
Fracture
Conchoidal
Density
4.69 g/cm³

Optical

Optical type
Uniaxial (+)
Refractive index
1.786 – 1.8
Surface relief
High
Principal indices
nω 1.786 · nε 1.800
Michel-Lévy diagramhighlighted lineδ = 0.0140
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]140 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation140 nm
Order1st order
XPL colour

Crystallography

Crystal system
Tetragonal
Cell parameters
a = 14.234(7) Å · c = 6.103(5) Å
Z
2
Type-locality form

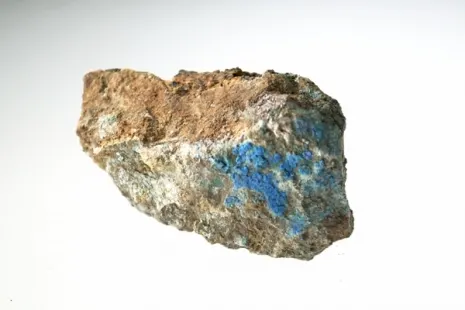

Clusters of clear blue, prismatic crystals up to 0.4 mm long.

Comment

I4/m, I4 and I_4

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
82PbLeadLead4207.200828.800
47.75%
8OOxygenOxygen2815.999447.972
25.81%
29CuCopperCopper463.546254.184
14.64%
14SiSiliconSilicon428.085112.340
6.47%
6CCarbonCarbon412.01148.044
2.77%
17ClChlorineChlorine135.45035.450
2.04%
1HHydrogenHydrogen91.0089.072
0.52%
Total1735.862100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Ashburtoniet
  • Ashburtonitt
  • IMA1990-033

In other languages

German
Ashburtonit · IMA 1990-033
Italian
Ashburtonite

Classification

Strunz
10th ed.

9.CF.05

  • 9SilicatesClass
  • 9.CCyclosilicatesDivision
  • 9.CF[Si4O12]8- 4-membered single rings, with insular complex anionsGroup
  • 9.CF.05AshburtoniteSpecies
Dana
8th ed.

78.04.02.01

  • 78Unclassified SilicatesClass
  • 78.04Unclassified silicates possible inosilicatesType
  • 78.04.02— unnamed intermediate level —Group
  • 78.04.02.01AshburtoniteSpecies
CIM

17.4.13

  • 17Silicates Containing other AnionsClass
  • 17.4Silicates with carbonatesGroup
  • 17.4.13AshburtoniteSpecies

Literature, links & citation

Citations
  1. 1991Grice, Joel D., Nickel, Ernest H., Gault, Robert A. (1991) Ashburtonite, a new bicarbonate-silicate mineral from Ashburton Downs, Western Australia: Description and structure determination. American Mineralogist, 76 (9-10) 1701-1707
  2. 1997Mandarino, Joseph A. (1997) New Minerals 1990-1994. The Mineralogical Record Inc., Tuscon, Arizona. 220pp.
  3. 2001(2001) Ashburtonite. Handbook of Mineralogy. Mineralogical Society of America
  4. 2013Kampf, A. R., Pluth, J. J., Chen, Y.-S., Roberts, A. C., Housley, R. M. (2013) Bobmeyerite, a new mineral from Tiger, Arizona, USA, structurally related to cerchiaraite and ashburtonite. Mineralogical Magazine, 77 (1) 81-91 doi:10.1180/minmag.2013.077.1.08 DOI: 10.1180/minmag.2013.077.1.08
