Attikaite

Ca3Cu2Al2(AsO4)4(OH)4 · 2H2O
IMA status
  • Approved
IMA symbol
Atk
IMA approved
2006
Also known as
  • Attikaiet
  • Attikaitt
  • IMA2006-017

Where it forms, where it's found

Type locality
Christiana Mine No. 132
  1. Mercati mines
  2. Agios Konstantinos (Kamariza)
  3. Lavreotiki
  4. East Attica
  5. Attica
  6. Greece

37.7337°, 24.0191°

4recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789102.5 – 3/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Colour
light blue · greenish blue
Streak
pale blue
Cleavage
Perfect

mica-like on (001)

Density
3.2 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 10°
Refractive index
1.642 – 1.644
Surface relief
Moderate
Principal indices
nα 1.642 · nβ 1.644 · nγ 1.644
Michel-Lévy diagramhighlighted lineδ = 0.0020
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]20 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation20 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Space group
#60
Cell parameters
a = 10.01(1) Å · b = 8.199(5) Å · c = 22.78(1) Å
Ratio a:b:c
1 : 0.819 : 2.276
Morphology

Spheroidal segregations (up to 0.3 mm in diameter) consisting of thin flexible crystals up to 3 x 20 x 80 μm in size.

Type-locality form

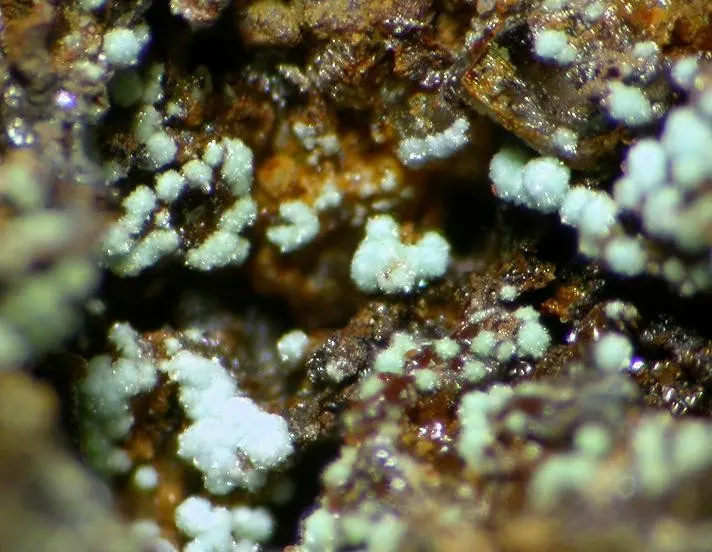

sparsely scattered, minute botryoids of pale green aggregates, comprised of submicroscopic, intergrown needles

Comment

Space group Pban, Pbam or Pba2.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen2215.999351.978
36.63%
33AsArsenicArsenic474.922299.688
31.18%
29CuCopperCopper263.546127.092
13.22%
20CaCalciumCalcium340.078120.234
12.51%
13AlAluminiumAluminium226.98253.964
5.62%
1HHydrogenHydrogen81.0088.064
0.84%
Total961.020100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Attikaiet
  • Attikaitt
  • IMA2006-017

In other languages

German
Attikait · IMA 2006-017
Italian
attikaite

Classification

Strunz
10th ed.

8.DJ.45

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.DPhosphates, etc. with additional anions, with H2ODivision
  • 8.DJWith large and medium-sized cations, (OH, etc.):RO4 = 1:1Group
  • 8.DJ.45AttikaiteSpecies
Dana
8th ed.

42.09.10

  • 42Hydrated Phosphates, Etc.containing Hydroxyl or HalogenClass
  • 42.09(AB)7(XO4)4Zq·xH2OType
  • 42.09.10— unnamed intermediate level —Group
  • 42.09.10AttikaiteSpecies

Literature, links & citation

Citations
  1. 2007Chukanov, N.V., Pekov, I.V., Zadov, A.E. (2007): Attikaite, Ca3Cu2Al2(AsO4)4(OH)4•2H2O, a new mineral. Proceedings of the Russian Mineralogical Society (Zapiski RMO), 136(2), 17-24 (in Russian). [American Mineralogist 94,1076 (2009) (abstract)]
  2. 2007Chukanov, N. V., Pekov, I. V., Zadov, A. E. (2007) Attikaite, Ca3Cu2Al2(AsO4)4(OH)4 · 2H2O, a new mineral species. Geology of Ore Deposits, 49 (8) 720-726 doi:10.1134/s1075701507080065DOI: 10.1134/s1075701507080065
  3. 2011(2011) Attikaite. Handbook of Mineralogy. Mineralogical Society of America
