Bahianite

Al5Sb5+3O14(OH)2
IMA status
  • Approved
IMA symbol
Bhi
Discovered
1978
Also known as
  • Bahianiet
  • IMA1974-027

Where it forms, where it's found

Geological setting

In potholes as stream-worn pebbles and as residual concentrates above weathered volcanic rock

Type locality
Pico das Almas river
  1. Paramirim das Crioulas
  2. Érico Cardoso
  3. Bahia
  4. Brazil
1recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789109/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Tan · cream · orange-brown · brown · crystals colourless · tan · pale violet · yellow internal reflections in transmitted light
Cleavage
Perfect

on (100)

Fracture
Irregular/Uneven
Density
4.78 g/cm³

Optical

Optical type
Biaxial (-)
Refractive index
1.81 – 1.92
Surface relief
Very high
Principal indices
nα 1.81 · nβ 1.87 · nγ 1.92
Pleochroism
Weak
Dispersion
r > v
Michel-Lévy diagramhighlighted lineδ = 0.1100
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]1100 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation1100 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
C2/m
Cell parameters
a = 9.406 Å · b = 11.541 Å · c = 4.41 Å
Cell angles
β = 90.94 °
Ratio a:b:c
1 : 1.227 : 0.469
Z
2
Morphology

Curved and striated crystals, diamond-shaped or rectangular

Twinning

Pseudohexagonal multiple contact twins, chrysoberyl-like

Type-locality form

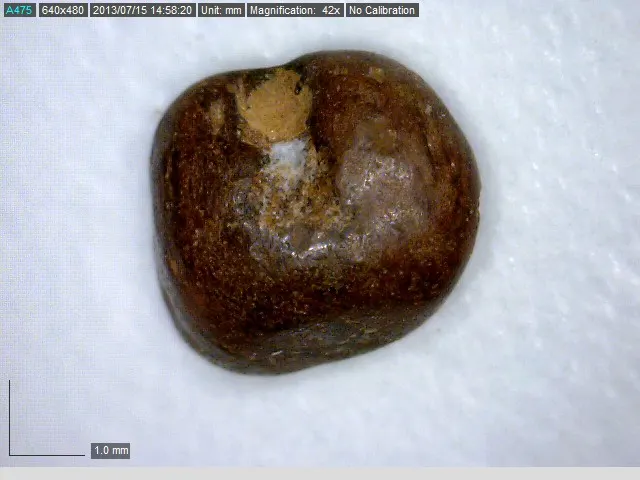

Water-worn, bean-shaped pebbles, to 10 cm, with polycrystalline or radial-fibrous structure; also as crystals, lining pockets in the pebbles

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
51SbAntimonyAntimony3121.760365.280
48.18%
8OOxygenOxygen1615.999255.984
33.76%
13AlAluminiumAluminium526.982134.910
17.79%
1HHydrogenHydrogen21.0082.016
0.27%
Total758.190100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Bahianiet
  • IMA1974-027

In other languages

German
Bahianit · IMA 1974-027
Spanish
Bahianita
Italian
Bahianite

Classification

Strunz
10th ed.

4.DC.05

  • 4OxidesClass
  • 4.DMetal: Oxygen = 1:2 and similarDivision
  • 4.DCWith medium-sized cations; sheets of edge-sharing octahedraGroup
  • 4.DC.05BahianiteSpecies
Dana
8th ed.

44.03.07.01

  • 44AntimonatesClass
  • 44.03MiscellaneousType
  • 44.03.07— unnamed intermediate level —Group
  • 44.03.07.01BahianiteSpecies
CIM

7.13.7

  • 7Oxides and HydroxidesClass
  • 7.13Oxides of As, Sb and BiGroup
  • 7.13.7BahianiteSpecies

Literature, links & citation

Citations
  1. 1976Moore, P. B. and Araki, T. (1976) Bahianite, Al6Sb3O14(O,OH)2, a novel hexagonal close-packed oxide structure. Neues Jahrbuch für Mineralogie, Abhandlungen: 126: 113-125.
  2. 1978Moore, Paul B., Carlos do Prado Barbosa, , Gaines, Richard V. (1978) Bahianite, Sb3Al5O14(OH)2, a new species. Mineralogical Magazine, 42 (322) 179-182 doi:10.1180/minmag.1978.042.322.02 DOI: 10.1180/minmag.1978.042.322.02
  3. 1979Fleischer, Michael, Chao, George Y., Pabst, and Adolf (1979) New Mineral Names. American Mineralogist, 64 (3-4) 464-467
  4. 1985Cassedanne, Jacques P. (1985) Bahianite from Brazil. The Mineralogical Record, 16 (2) 111-115
  5. 1997Anthony, J. W. et al. (1997) Handbook of Mineralogy, Vol. 3, 34.
