Bannermanite

(Na,K)xV4+xV5+6-xO15 (0.5<x<0.9)
IMA status
  • Approved
IMA symbol
Bnm
Discovered
1983
Also known as
  • Bannermaniet
  • Bannermanite (of Hughes et al.)
  • IMA1980-010

Where it forms, where it's found

Geological setting

Vanadium-bearing sublimates in fumaroles on a basaltic volcanic cone

Type locality
Izalco Volcano
  1. Sonsonate Department
  2. El Salvador

13.8137°, -89.6326°

5recorded occurrences
Source · OpenStreetMap

Physical

Lustre
Submetallic
Transparency
Opaque
Colour
Black · light brown on thin edges in transmitted light
Streak
Dark grey-black
Tenacity
brittle
Cleavage
Perfect

on (100), fair on (010)

Density
3.5 g/cm³

Optical

Optical type
Biaxial
Refractive index
2.2
Surface relief
Very high
Principal indices
nβ 2.2
Dispersion
relatively strong

Crystallography

Crystal system
Monoclinic
Space group
C2/m
Cell parameters
a = 15.413 Å · b = 3.615 Å · c = 10.066 Å
Cell angles
β = 109.29 °
Ratio a:b:c
1 : 0.235 : 0.653
Z
2
Morphology

Subhedral to euhedral lathlike crystals, flattened on (001) and elongated along [010].

Type-locality form

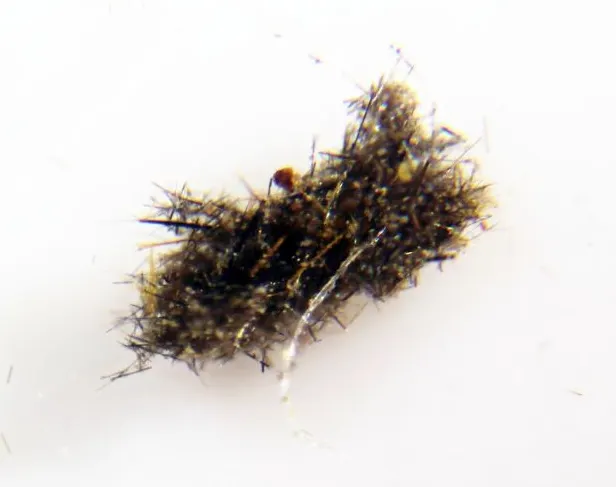

Incrustations of subhedral to euhedral lathlike crystals of up to 250 µm

Crystal structure

Synonyms

  • Bannermaniet
  • Bannermanite (of Hughes et al.)
  • IMA1980-010

In other languages

German
Bannermanit · IMA 1980-010
Italian
Bannermanite
Chinese
碱钒石

Classification

Strunz
10th ed.

4.HF.05

  • 4OxidesClass
  • 4.HV[5,6] VanadatesDivision
  • 4.HFTektovanadatesGroup
  • 4.HF.05BannermaniteSpecies
Dana
8th ed.

47.03.05.01

  • 47Vanadium OxysaltsClass
  • 47.03Hydrated Normal Vanadium OxysaltsType
  • 47.03.05— unnamed intermediate level —Group
  • 47.03.05.01BannermaniteSpecies
CIM

21.1.4

  • 21Vanadates (and vanadates with arsenate or phosphate)Class
  • 21.1Vanadates of the alkalis and CuGroup
  • 21.1.4BannermaniteSpecies

Group, growth & confusion

Often grow together
1 mineral

Literature, links & citation

Citations
  1. 1958Ozerov, R.P., Gol’der, G.A., Zhdanov, G.S. (1958) X-ray diffraction study of sodium and potassium oxygen vanadium bronzes Me0.33V2O5. Soviet Physics - Crystallography: 2: 211-218.
  2. 1983Hughes, John M., Finger, Larry W. (1983) Bannermanite, a new sodium-potassium vanadate isostructural with β-NaxV6O15. American Mineralogist, 68 (5-6) 634-641
  3. 1983Dunn, Pete J., Fleischer, Michael (1983) New mineral names. American Mineralogist, 68 (5-6) 642-645
  4. 1990Evans, Howard T., Jr.,, Hughes, John M. (1990) Crystal chemistry of the natural vanadium bronzes. American Mineralogist, 75 (5-6) 508-521
  5. 1997Anthony, J. W. et al. (1997): Handbook of Mineralogy, Vol. 3, 36.
