Barahonaite-(Fe)

(Ca,Cu,Na,Fe3+,Al)12Fe3+2(AsO4)8(OH,Cl)x · nH2O
IMA status
  • Approved
IMA symbol
Bho-Fe
IMA approved
2006
Also known as
  • Barahonaiet-(Fe)
  • Barahonite-(Fe)
  • IMA2006-052

Where it forms, where it's found

Geological setting

An oxidation mineral occurring as coatings and within closely spaced fractures in weathered siliceous and micaceous host-rocks.

Type locality
La Reconquistada claim
  1. Pastrana
  2. Mazarrón
  3. Murcia
  4. Spain

Safety & handling

Physical

Transparency
Transparent · Translucent
Colour
Greenish-yellow
Streak
White to pale yellow
Tenacity
brittle

Optical

Optical type
Biaxial (-) · 2V measured = 45 – 80°
Refractive index
1.664 – 1.677
Surface relief
High
Principal indices
nα 1.664 · nβ 1.677 · nγ 1.677
Pleochroism
Not Visible
Dispersion
None observed.
Extinction
X is perpendicular to the crystal plates, and Y and Z are within the plates.
UV response
Not fluorescent.
Notes

The β value above is not given, but rather the relation β ≈ γ.

Michel-Lévy diagramhighlighted lineδ = 0.0130
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]130 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation130 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
#12
Cell parameters
a = 10.172 Å · b = 22.43 Å · c = 5.286 Å
Cell angles
β = 93.09 °
Ratio a:b:c
1 : 2.205 : 0.520
Type-locality form

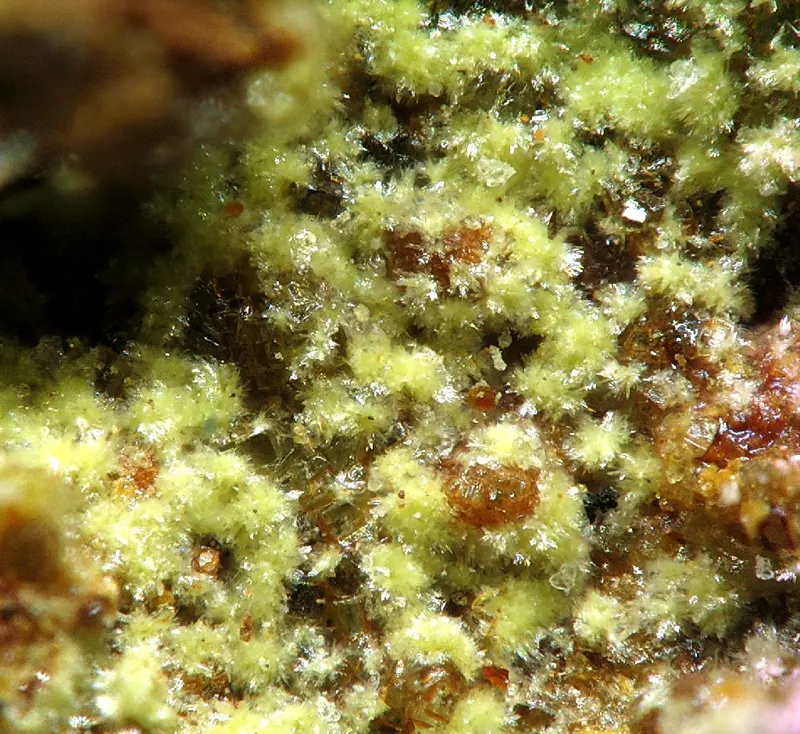

Isolated, rosette-like beads, up to about 200 µm in diameter. Sparse coatings on fracture surfaces and coalescences of glittering beads. The beads consist of razor-thin, tabular, composite crystals whose maximum length is about 20 µm.

Synonyms

  • Barahonaiet-(Fe)
  • Barahonite-(Fe)
  • IMA2006-052

In other languages

German
Barahonait-(Fe) · IMA 2006-052
Spanish
Barahonaíta- · Barahonaíta-(Fe)
Italian
Barahonaite- · Barahonaite-(Fe)

Classification

Strunz
10th ed.

8.CH.60

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.CPhosphates without additional anions, with H2ODivision
  • 8.CHWith large and medium-sized cations, RO4:H2O < 1:1Group
  • 8.CH.60Barahonaite-(Fe)Species
Dana
8th ed.

40.06.04.01

  • 40Hydrated Normal Phosphates, Arsenates and VanadatesClass
  • 40.06(AB)5(XO4)4·xH2OType
  • 40.06.04— unnamed intermediate level —Group
  • 40.06.04.01Barahonaite-(Fe)Species

Literature, links & citation

Citations
  1. 2008Viñals, J., Jambor, J. L., Raudsepp, M., Roberts, A. C., Grice, J. D., Kokinos, M., Wise, W. S. (2008) Barahonaite-(Al) and barahonaite-(Fe), new Ca-Cu arsenate mineral species, from Murcia Province, southeastern Spain, and Gold Hill, Utah. The Canadian Mineralogist, 46 (1) 205-217 doi:10.3749/canmin.46.1.205 DOI: 10.3749/canmin.46.1.205
  2. 2022(2022) Barahonaite-(Fe). Handbook of Mineralogy. Mineralogical Society of America
