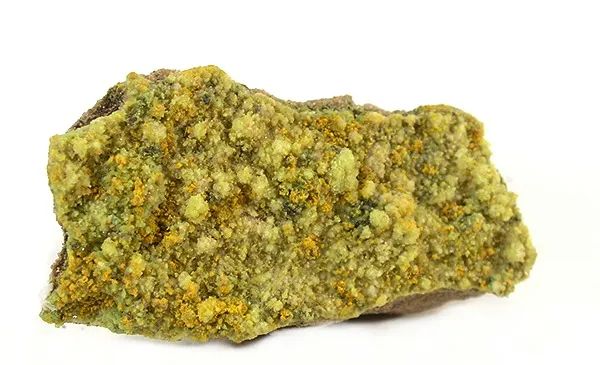

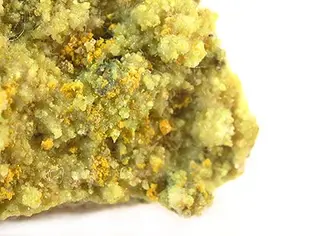

Bayleyite

Mg2(UO2)(CO3)3 · 18H2O
IMA status
  • Approved
  • Grandfathered
IMA symbol
Byy
Discovered
1948
Also known as
  • Bayleyiet

Where it forms, where it's found

Geological setting

Post-mining efforescent coatings on mine walls.

Type locality
Hillside Mine
  1. Bozarth Mesa
  2. Bagdad
  3. Eureka Mining District
  4. Yavapai County
  5. Arizona
  6. USA

34.6328°, -113.2097°

33recorded occurrences
Source · OpenStreetMap

Radioactivity

Physical

Hardness
123456789102 – 2.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Yellow · whitish yellow
Fracture
Conchoidal
Density
2.05 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 30°
Refractive index
1.453 – 1.502
Surface relief
Low
Principal indices
nα 1.453 – 1.455 · nβ 1.49 – 1.492 · nγ 1.498 – 1.502
Pleochroism
Visible

X = Pinkish Y = Light yellow Z = Light yellow

Dispersion
r > v distinct
UV response
Weakly fluorescent yellow-green to pale greenish in LW and SW UV.
Michel-Lévy diagramhighlighted lineδ = 0.0460
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]460 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation460 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
P21/a
Cell parameters
a = 26.65(5) Å · b = 15.31(5) Å · c = 6.53(2) Å
Cell angles
β = 93.07 °
Ratio a:b:c
1 : 0.574 : 0.245
Z
4
Morphology

Crystals minute, short-prismatic; also acicular; in divergent groups (artificial material).

Type-locality form

As crust on gypsum and mica schist

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen2915.999463.971
56.38%
92UUraniumUranium1238.029238.029
28.92%
12MgMagnesiumMagnesium224.30548.610
5.91%
1HHydrogenHydrogen361.00836.288
4.41%
6CCarbonCarbon312.01136.033
4.38%
Total822.931100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Bayleyiet

In other languages

French
Bayleyite
German
Bayleyit
Italian
Bayleyite
Chinese
碳镁铀矿

Classification

Strunz
10th ed.

5.ED.05

  • 5CarbonatesClass
  • 5.EUranyl CarbonatesDivision
  • 5.EDUO2:CO3 = 1:3Group
  • 5.ED.05BayleyiteSpecies
Dana
8th ed.

15.03.03.01

  • 15Hydrated Normal CarbonatesClass
  • 15.03AmBn(XO3)p·xH2O, with (m+n):p = 1:1Type
  • 15.03.03— unnamed intermediate level —Group
  • 15.03.03.01BayleyiteSpecies
CIM

11.11.5

  • 11CarbonatesClass
  • 11.11Carbonates of Cr and UGroup
  • 11.11.5BayleyiteSpecies

Group, growth & confusion

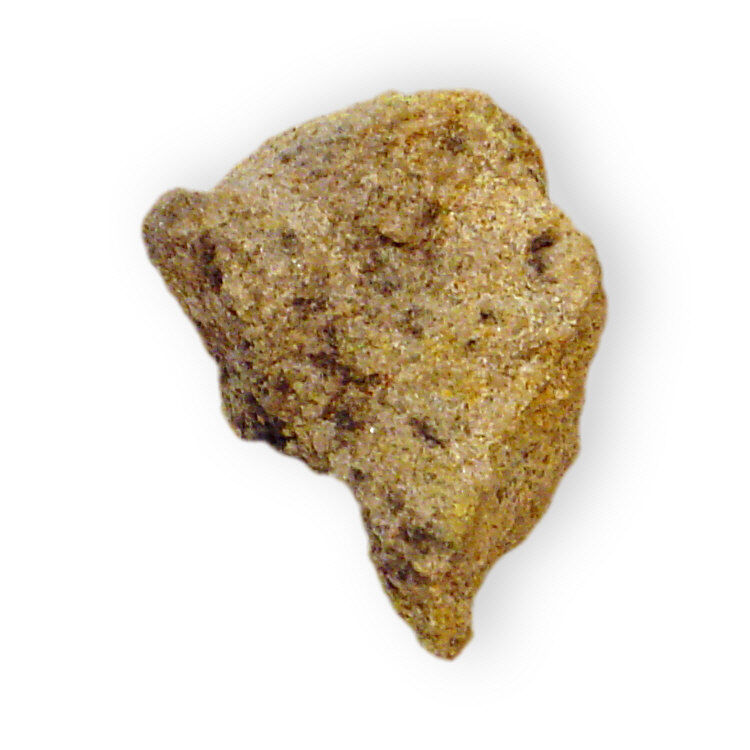

Often grow together
1 mineral

Literature, links & citation

Citations
  1. 1948Axelrod et. al (1948) Bulletin of the Geological Society of America: 59: 1310.
  2. 1951Axelrod, Joseph M., Grimaldi, Frank S., Milton, Charles, Murata, and K. J. (1951) The uranium minerals from the Hillside Mine, Yavapai County, Arizona. American Mineralogist, 36 (1-2) 1-22
  3. 1951Palache, Charles; Berman, Harry; Frondel, Clifford (1951) The System of Mineralogy (7th ed.) Vol. 2 - Halides, Nitrates, Borates, Carbonates, Sulfates, Phosphates, Arsenates, Tungstates, Molybdates, Etc. John Wiley and Sons.
  4. 1986Mayer, H., Mereiter, K. (1986) Synthetic bayleyite, Mg2[UO2(CO3)3]·18H2O: Thermochemistry, crystallography and crystal structure. TMPM Tschermaks Mineralogische und Petrographische Mitteilungen, 35 (2) 133-146 doi:10.1007/bf01140845DOI: 10.1007/bf01140845
  5. 2005(2005) Bayleyite. Handbook of Mineralogy. Mineralogical Society of America
