Belkovite

Ba3Nb6(Si2O7)2O12
IMA status
  • Approved
IMA symbol
Bkv
Discovered
1991
Also known as
  • Belkoviet
  • IMA1989-053

Where it forms, where it's found

Geological setting

Dolomite-calcite carbonatites.

Type locality
Vuoriyarvi alkaline-ultrabasic massif
  1. Northern Karelia
  2. Murmansk Oblast
  3. Russia
3recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789106 – 7/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Brown
Streak
White
Tenacity
brittle
Fracture
Irregular/Uneven
Density
4.16 g/cm³

Optical

Optical type
Uniaxial (+)
Refractive index
1.928 – 2.002
Surface relief
Very high
Principal indices
nω 1.928 · nε 2.002
Notes

anomalously biaxial.

Michel-Lévy diagramhighlighted lineδ = 0.0740
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]740 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation740 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Hexagonal
Space group
#110
Cell parameters
a = 8.966(3) Å · c = 7.799(3) Å
Z
1
Type-locality form

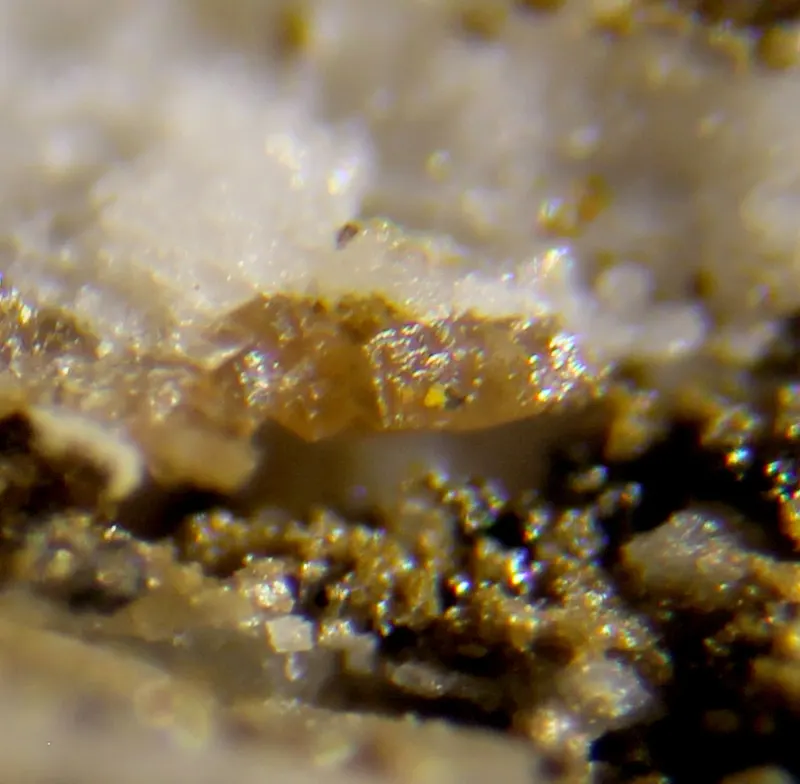

Thin rims on barian pyrochlore and as barrel-shaped crystals up to 1.0 mm.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
41NbNiobiumNiobium692.906557.436
37.22%
8OOxygenOxygen2615.999415.974
27.77%
56BaBariumBarium3137.327411.981
27.51%
14SiSiliconSilicon428.085112.340
7.50%
Total1497.731100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Zr
  • Al
  • Fe
  • Ta
  • Ca
  • Na
  • K

Synonyms

  • Belkoviet
  • IMA1989-053

In other languages

German
Belkovit · IMA 1989-053
Italian
Belkovite
Chinese
硅钡铌石

Classification

Strunz
10th ed.

9.BE.75

  • 9SilicatesClass
  • 9.BSorosilicatesDivision
  • 9.BESi2O7 groups, with additional anions; cations in octahedral [6] and greater coordinationGroup
  • 9.BE.75BelkoviteSpecies
CIM

17.8.11

  • 17Silicates Containing other AnionsClass
  • 17.8Silicates with niobate or tantalateGroup
  • 17.8.11BelkoviteSpecies

Literature, links & citation

Citations
  1. 1976Choisnet, J., Nguyen, N., Groult, D., Raveau, B. (1976) De nouveaux oxydes a reseau forme d'octaedres NbO6 (TaO6) et de groupes Si2O7: Les phases A3Ta6Si4O26 (A = Ba, Sr) et K6M6Si4O26 (M = Nb, Ta). Materials Research Bulletin: 11: 887-894.
  2. 1991Jambor, John L., Puziewicz, Jacek (1991) New Mineral Names. American Mineralogist, 76 (9-10) 1728-1735
  3. 1991Voloshin, A.V., Subbotin, V.V., Pakhomovskii, Y.A., Bakhchisaraitsev, A.Y., Yamnova, N.A., Pushcharovskii, D.Y. (1991) Belkovite - a new barium-niobium silicate from carbonatites of the Vuoriyarvi massif (Kola Peninsula, USSR). Neues Jahrbuch für Mineralogie, Monatshefte: 1991: 23-31.
  4. 1997Mandarino, Joseph A. (1997) New Minerals 1990-1994. The Mineralogical Record Inc., Tuscon, Arizona. 220pp.
  5. 2001(2001) Belkovite. Handbook of Mineralogy. Mineralogical Society of America
