Bellingerite

Cu3(IO3)6 · 2H2O
IMA status
  • Approved
  • Grandfathered
IMA symbol
Blg
Discovered
1940
Also known as
  • Bellingeriet

Where it forms, where it's found

Type locality
Chuquicamata Mine
  1. Chuquicamata District
  2. Calama
  3. El Loa Province
  4. Antofagasta
  5. Chile

-22.2894°, -68.9011°

1recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789104/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond

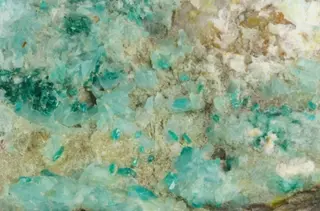

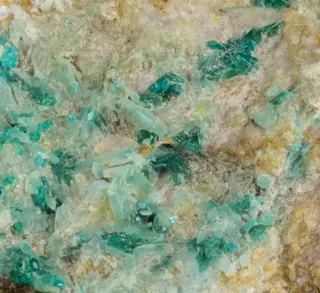

Colour
Green · light green · light bluish green in transmitted light

Photographs of bellingerite are frequently bluer than the natural material, similar to how the green colors of dioptase and emerald may appear in photographs.

Streak
Very light green
Tenacity
brittle
Fracture
Sub-Conchoidal
Density
4.88 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 50° · 2V calc = 40°
Refractive index
1.89 – 1.99
Surface relief
Very high
Principal indices
nα 1.89 · nβ 1.900 · nγ 1.99
Birefringence
0.10
Pleochroism
Visible

X = Light bluish green; Y = Light bluish green; Z = Blue-green

Dispersion
r > v strong
Extinction
X (70°,–70°); Y (38°,175°); Z (59°,34°) [with c (0°,0°) and b∗ (0°,90°) using (φ,ρ)].
Notes

Absorption: Z > X = Y.

Michel-Lévy diagramhighlighted lineδ = 0.1000
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]1000 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation1000 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Triclinic
Space group
#2
Cell parameters
a = 7.22 Å · b = 7.82 Å · c = 7.94 Å
Cell angles
α = 105 ° · β = 96.98 ° · γ = 92.94 °
Ratio a:b:c
1 : 1.083 : 1.100

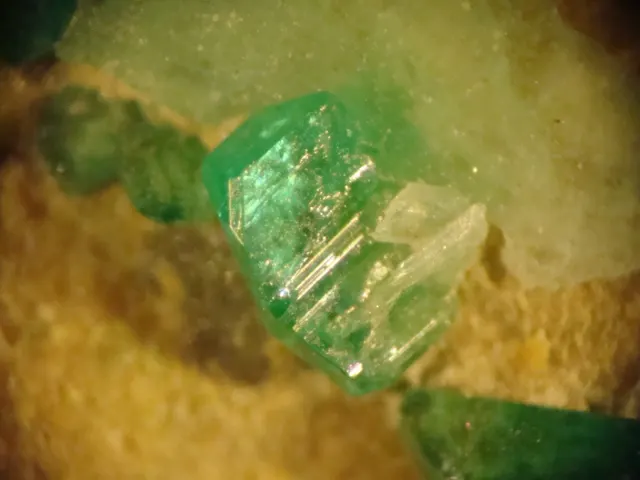

Morphology

Crystals prismatic [001] and rather tabular (100). (100) striated parallel to [001].

Twinning

On (101). Reentrant angles may, or may not, be present.

Type-locality form

Veinlets in altered granitic rock; tiny isolated crystals.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
53IIodineIodine6126.904761.424
59.67%
8OOxygenOxygen2015.999319.980
25.07%
29CuCopperCopper363.546190.638
14.94%
1HHydrogenHydrogen41.0084.032
0.32%
Total1276.074100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Bellingeriet

In other languages

French
bellingerite
German
Bellingerit
Italian
Bellingerite
Portuguese
bellingerite

Classification

Strunz
10th ed.

4.KC.05

  • 4OxidesClass
  • 4.KIodates: Trigonal [IO3] pyramids (mostly).Division
  • 4.KCIodates without additional anions, with H2OGroup
  • 4.KC.05BellingeriteSpecies
Dana
8th ed.

21.01.03.01

  • 21Normal IodatesClass
  • 21.01MiscellaneousType
  • 21.01.03— unnamed intermediate level —Group
  • 21.01.03.01BellingeriteSpecies
CIM

29.2

  • 29IodatesClass
  • 29.2— unnamed intermediate level —Group
  • 29.2BellingeriteSpecies

Literature, links & citation

Citations
  1. 1940Berman, Harry, Wolfe, C. W. (1940) Bellingerite, a new mineral from Chuquicamata, Chile. American Mineralogist, 25 (8) 505-512
  2. 1941Motter, W.D.B. Jr. (1941) Herman Carl Bellinger. Bolitin Minero de la Sociadad Nacional de la Mineria: 53: 392-393.
  3. 1951Palache, Charles; Berman, Harry; Frondel, Clifford (1951) The System of Mineralogy (7th ed.) Vol. 2 - Halides, Nitrates, Borates, Carbonates, Sulfates, Phosphates, Arsenates, Tungstates, Molybdates, Etc. John Wiley and Sons.
  4. 1974Ghose, S., Wan, C. (1974) Structural chemistry of copper and zinc minerals. II. Stereochemistry of copper(II) and iodine(V) in bellingerite, 3Cu(IO3)2·2H2O. Acta Crystallographica: B30: 965-974.
  5. 2005(2005) Bellingerite. Handbook of Mineralogy. Mineralogical Society of America
