Bobkingite

Cu5Cl2(OH)8 · 2H2O
IMA status
  • Approved
IMA symbol
Bkg
Discovered
2000
IMA approved
2000
Also known as
  • Bobkingiet
  • IMA2000-029

Where it forms, where it's found

Geological setting

In veins in diorite.

Type locality
New Cliffe Hill Quarry
  1. Cliffe Hill Quarry
  2. Stanton under Bardon
  3. Hinckley and Bosworth
  4. Leicestershire
  5. England
  6. UK

52.6933°, -1.3231°

3recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Soft pale blue
Streak
Pale blue
Tenacity
brittle
Cleavage
Perfect

(001) perfect and (100) fair

Fracture
Conchoidal
Density
3.25 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 33° · 2V calc = 52°
Refractive index
1.724 – 1.75
Surface relief
High
Principal indices
nα 1.724 · nβ 1.745 · nγ 1.75
Pleochroism
Visible

X = Very pale blue; Z = Pale greenish blue

Dispersion
Not mentioned
Extinction
X ∧ a = 22° in obtuse angle β; Y ≈ c; Z = b.
Michel-Lévy diagramhighlighted lineδ = 0.0260
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]260 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation260 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
C2/m
Cell parameters
a = 10.301 Å · b = 6.758 Å · c = 8.835 Å
Cell angles
β = 111.53 °
Ratio a:b:c
1 : 0.656 : 0.858
Unit cell volume
572.1 ų
Z
2
Morphology

(001) dominant with (100) and (110) minor.

Twinning

None mentioned.

Type-locality form

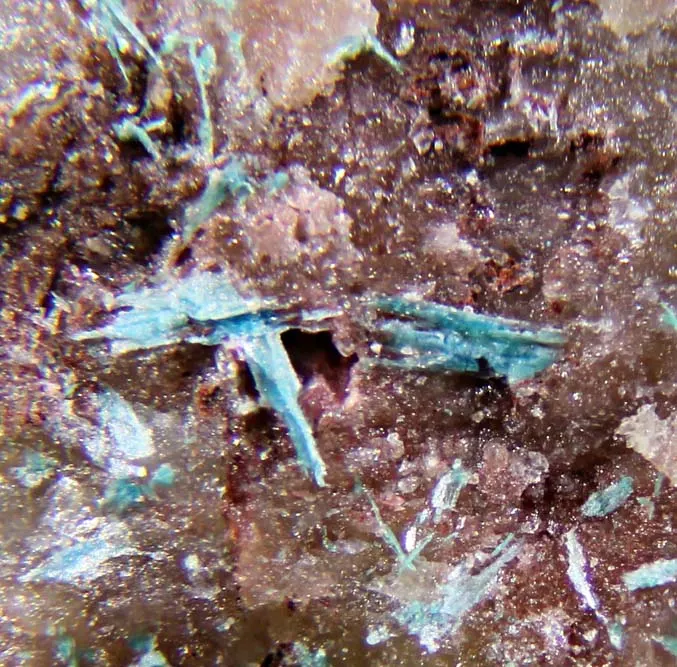

Parallel growths of thin platy crystals to 0.2 mm across and less than 5 µm thick.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
29CuCopperCopper563.546317.730
56.67%
8OOxygenOxygen1015.999159.990
28.53%
17ClChlorineChlorine235.45070.900
12.64%
1HHydrogenHydrogen121.00812.096
2.16%
Total560.716100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Bobkingiet
  • IMA2000-029

In other languages

German
Bobkingit · IMA 2000-029
Spanish
Bobkingita
Italian
Bobkingite

Classification

Strunz
10th ed.

3.DA.50

  • 3HalidesClass
  • 3.DOxyhalides, hydroxyhalides and related double halidesDivision
  • 3.DAWith Cu, etc., without PbGroup
  • 3.DA.50BobkingiteSpecies

Literature, links & citation

Citations
  1. 2002Hawthorne, F. C., Cooper, M. A., Grice, J. D., Roberts, A. C., Hubbard, N. (2002) Description and crystal structure of bobkingite, Cu2+5Cl2(OH)8(H2O)2, a new mineral from New Cliffe Hill Quarry, Stanton-under-Bardon, Leicestershire, UK. Mineralogical Magazine, 66 (2) 301-311 doi:10.1180/0026461026620030 DOI: 10.1180/0026461026620030
  2. 2003Mandarino, Joseph A. (2003) Abstracts of New Mineral Descriptions. The Mineralogical Record, 34 (2) 202-205
  3. 2021(2021) Bobkingite. Handbook of Mineralogy. Mineralogical Society of America
