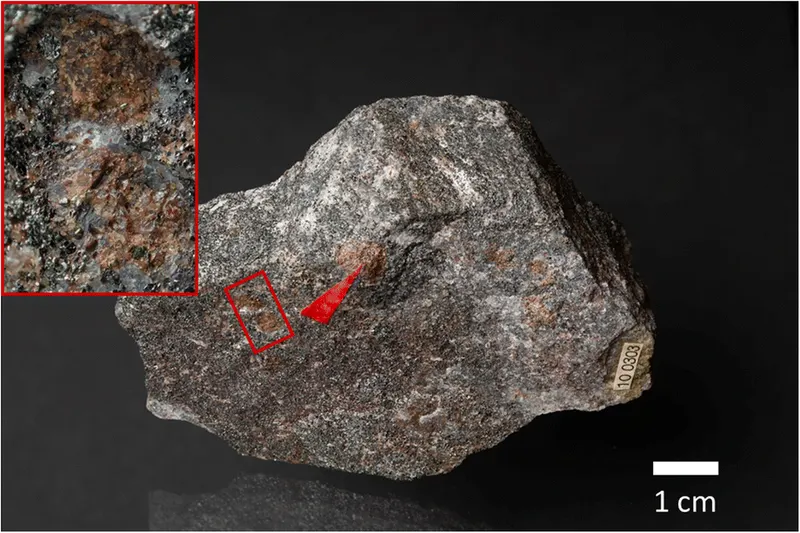

Brattforsite

Mn19As12O36Cl2
IMA status
  • Approved
IMA symbol
Bf
Also known as
  • Brattforsiet

Where it forms, where it's found

Geological setting

Late-stage mineralization in fissures and druses in a Långban-type deposit. May have replaced a Mn-rich precursor mineral in the skarn mass, from alteration by a late- or post-metamorphic, As- and Cl-bearing fluid.

Type locality
Brattfors Mine
  1. Nordmark Odal Field
  2. Filipstad
  3. Värmland County
  4. Sweden

59.8333°, 14.1247°

1recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789103 – 4/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Orange to reddish-brown
Streak
White
Tenacity
brittle
Cleavage
None Observed
Fracture
Irregular/Uneven · Sub-Conchoidal
Density
4.49 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 44°
Pleochroism
Weak

Very weak, in yellow hues

Dispersion
Weak, with v > r
UV response
No fluorescence
Notes

Mean refractive index of 1.981

Crystallography

Crystal system
Monoclinic
Space group
C2/c
Cell parameters
a = 19.5806(7) Å · b = 19.5763(7) Å · c = 19.7595(7) Å
Cell angles
β = 90.393(3) °
Ratio a:b:c
1 : 1.000 : 1.009
Unit cell volume
7573.9 ų
Z
8
Morphology

Pseudotetragonal

Twinning

Polysynthetic twinning has been observed in a couple of grains.

Type-locality form

Subhedral crystals, somewhat irregular in shape but essentially equant, and up to 0.5 mm in size.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
25MnManganeseManganese1954.9381043.822
40.30%
33AsArsenicArsenic1274.922899.064
34.72%
8OOxygenOxygen3615.999575.964
22.24%
17ClChlorineChlorine235.45070.900
2.74%
Total2589.750100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Brattforsiet

In other languages

German
Brattforsit · IMA 2019-127

Classification

Strunz
10th ed.

4.JB

  • 4OxidesClass
  • 4.JArsenites, antimonites, bismuthites, sulfites, selenites, tellurites; iodatesDivision
  • 4.JBArsenites, antimonites, bismuthites; with additional anions, without H2OGroup
  • 4.JBBrattforsiteSpecies

Literature, links & citation

Citations
  1. 2020Miyawaki, Ritsuro, Hatert, Frédéric, Pasero, Marco, Mills, Stuart J. (2020) IMA Commission on New Minerals, Nomenclature and Classification (CNMNC) - Newsletter 54. European Journal of Mineralogy, 32 (2) 275-283 doi:10.5194/ejm-32-275-2020 DOI: 10.5194/ejm-32-275-2020
  2. 2021Holtstam, Dan, Biagioni, Cristian, Hålenius, Ulf (2021) Brattforsite, Mn19(AsO3)12Cl2, a new arsenite mineral related to magnussonite, from Brattforsgruvan, Nordmark, Värmland, Sweden. Mineralogy and Petrology, 115 (5) 595-609 doi:10.1007/s00710-021-00749-9DOI: 10.1007/s00710-021-00749-9
  3. 2022(2022) Brattforsite. Handbook of Mineralogy. Mineralogical Society of America
