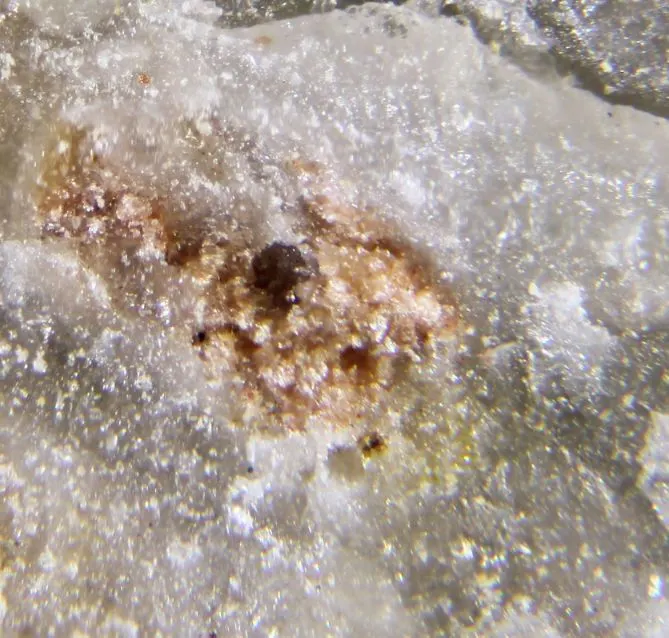

Burckhardtite

Pb2(Fe3+Te6+)(AlSi3O8)O6
IMA status
  • Approved
IMA symbol
Bkd
Discovered
1976
IMA approved
1976
Also known as
  • Burckhardtiet
  • IMA1976-052

Where it forms, where it's found

Geological setting

Oxidized zone on 2nd and 3rd levels of an oxidized tellurium deposit.

Type locality
Moctezuma Mine
  1. Moctezuma
  2. Moctezuma Municipality
  3. Sonora
  4. Mexico

29.6942°, -109.7125°

8recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789102/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Carmine-red to violet-red · pink · brown (Mn-poor)

Pink when very tiny

Streak
Pale red
Tenacity
brittle
Cleavage
Perfect

basal (001)

Density
4.96 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 5°
Refractive index
1.82 – 1.85
Surface relief
Very high
Principal indices
nα 1.82 · nβ 1.85 · nγ 1.85
Birefringence
0.03
Pleochroism
Weak

e = pale magenta, o = carmine

Dispersion
2V = small
UV response
Not Fluorescent in UV
Michel-Lévy diagramhighlighted lineδ = 0.0300
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]300 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation300 nm
Order1st order
XPL colour

Crystallography

Crystal system
Trigonal
Space group
#95
Cell parameters
a = 5.2566(5) Å · c = 13.0221(10) Å
Unit cell volume
311.62 ų
Z
1
Morphology

Equant crystals, also rosettes of plates.

Type-locality form

Minute rosettes of carmine-red crystals averaging 0.1mm. Also as hexagonal platelets.

Comment

ICDD 33-730; data here updated after Christy et al. (2014)

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
82PbLeadLead2207.200414.400
44.41%
8OOxygenOxygen1415.999223.986
24.01%
52TeTelluriumTellurium1127.600127.600
13.68%
14SiSiliconSilicon328.08584.255
9.03%
26FeIronIron155.84555.845
5.98%
13AlAluminiumAluminium126.98226.982
2.89%
Total933.068100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Burckhardtiet
  • IMA1976-052

In other languages

German
Burckhardtit · IMA 1976-052
Italian
burckhardtite
Chinese
硅碲铁铅石

Classification

Strunz
10th ed.

9.EC.70

  • 9SilicatesClass
  • 9.EPhyllosilicatesDivision
  • 9.ECPhyllosilicates with mica sheets, composed of tetrahedral and octahedral netsGroup
  • 9.EC.70BurckhardtiteSpecies
Dana
8th ed.

78.05.03.01

  • 78Unclassified SilicatesClass
  • 78.05Unclassified silicates possible phyllosilicatesType
  • 78.05.03— unnamed intermediate level —Group
  • 78.05.03.01BurckhardtiteSpecies
CIM

16.14.17

  • 16Silicates Containing Aluminum and other MetalsClass
  • 16.14Aluminosilicates of Ti, Zr, Sn and PbGroup
  • 16.14.17BurckhardtiteSpecies

Literature, links & citation

Citations
  1. 1979Gaines, Richard,V., Leavens, Peter B., Nelen, Joseph A. (1979) Burckhardtite, a new silicate-tellurite from Mexico. American Mineralogist, 64 (3-4) 355-358
  2. 2001(2001) Burckhardtite. Handbook of Mineralogy. Mineralogical Society of America
  3. 2014Christy, Andrew G., Kampf, Anthony R., Mills, Stuart J., Housley, Robert M., Thorne, Brent (2014) Crystal structure and revised chemical formula for burckhardtite, Pb2(Fe3+Te6+)[AlSi3O8]O6: a double-sheet silicate with intercalated phyllotellurate layers. Mineralogical Magazine, 78 (7) 1763-1773 doi:10.1180/minmag.2014.078.7.18DOI: 10.1180/minmag.2014.078.7.18
