Calcioveatchite

SrCaB11O16(OH)5 · H2O
IMA status
  • Approved
IMA symbol
Cvea
Also known as
  • Calcioveatchiet
  • IMA2020-011

Where it forms, where it's found

Geological setting

Evaporite salt deposit

Type locality
Nepskoe K salt deposit
  1. Nepa River basin
  2. Lower Tunguska
  3. Irkutsk Oblast
  4. Russia

59.0300°, 108.0000°

1recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789102/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
colourless
Streak
white
Tenacity
brittle
Cleavage
Perfect

on (010)

Fracture
Step-Like
Density
2.58 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 30° · 2V calc = 35°
Refractive index
1.543 – 1.626
Surface relief
Moderate
Principal indices
nα 1.543 · nβ 1.550 · nγ 1.626
Pleochroism
Non-pleochroic
UV response
non-fluorescent under both ultraviolet rays and an electron beam
Michel-Lévy diagramhighlighted lineδ = 0.0830
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]830 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation830 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
P21
Cell parameters
a = 6.7030(3) Å · b = 20.6438(9) Å · c = 6.6056(3) Å
Cell angles
β = 119.153(7) °
Ratio a:b:c
1 : 3.080 : 0.985
Z
2
Twinning

Simple twins with contact face (010)

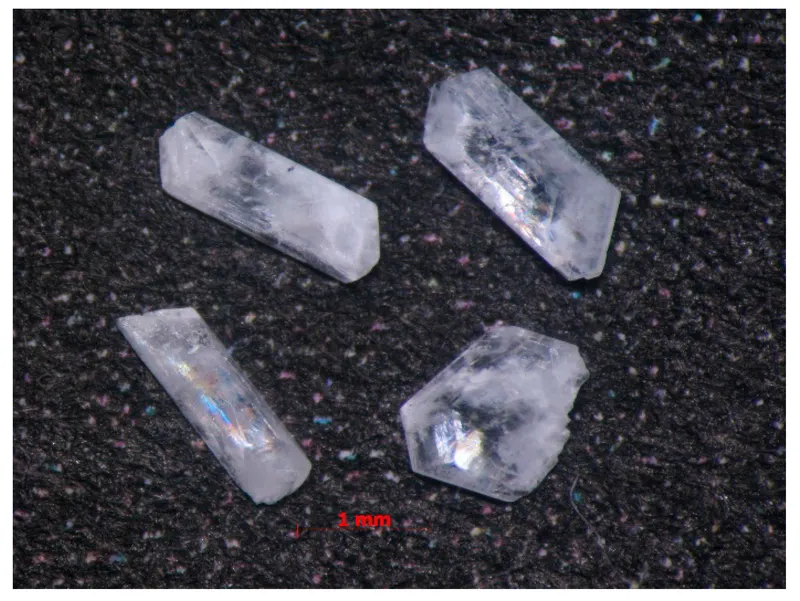

Type-locality form

prismatic or tabular crystals up to 1 × 1.5 × 3 mm3 and crystal clusters up to 3 mm

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen2215.999351.978
58.12%
5BBoronBoron1110.810118.910
19.63%
38SrStrontiumStrontium187.62087.620
14.47%
20CaCalciumCalcium140.07840.078
6.62%
1HHydrogenHydrogen71.0087.056
1.16%
Total605.642100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Calcioveatchiet
  • IMA2020-011

In other languages

German
Calcioveatchit · IMA 2020-011

Classification

Strunz
10th ed.

6.EC

  • 6BoratesClass
  • 6.EPentaboratesDivision
  • 6.ECPhyllo-pentaboratesGroup
  • 6.ECCalcioveatchiteSpecies

Literature, links & citation

Citations
  1. 2020Miyawaki, Ritsuro, Hatert, Frédéric, Pasero, Marco, Mills, Stuart J. (2020) IMA Commission on New Minerals, Nomenclature and Classification (CNMNC) – Newsletter 56. European Journal of Mineralogy, 32 (4) 443-448 doi:10.5194/ejm-32-443-2020 DOI: 10.5194/ejm-32-443-2020
  2. 2022(2022) Calcioveatchite. Handbook of Mineralogy. Mineralogical Society of America
  3. 2024Pekov, Igor V., Zubkova, Natalia V., Apollonov, Vladimir N., Yapaskupt, Vasiliy O., Britvin, Sergey N., Pushcharovsky, Dmitry Yu. (2024) A New Mineral Calcioveatchite, SrCaB11O16(OH)5·H2O, and the Veatchite–Calcioveatchite Isomorphous Series. Minerals, 14 (9). doi:10.3390/min14090901DOI: 10.3390/min14090901
