Capranicaite

KCaNaAl4B4Si2O18
IMA status
  • Approved
IMA symbol
Cpc
IMA approved
2010
Also known as
  • Capranicaiet
  • IMA2009-086

Where it forms, where it's found

Geological setting

It occurs in miarolitic cavities of a feldspathoid-bearing syenite ejectum and formed by late-stage metasomatic processes related to the activity of the Vico volcano.

Type locality
Capranica
  1. Viterbo Province
  2. Lazio
  3. Italy

Physical

Transparency
Transparent
Colour
Colourless
Streak
White
Tenacity
brittle
Cleavage
Distinct/Good

Good on (001)

Fracture
Splintery
Density
2.41 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 7.3° · 2V calc = 16.0°
Refractive index
1.495 – 1.544
Surface relief
Moderate
Principal indices
nα 1.495 · nβ 1.543 · nγ 1.544
Birefringence
0.049
Pleochroism
Non-pleochroic
Dispersion
None
UV response
None
Michel-Lévy diagramhighlighted lineδ = 0.0490
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]490 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation490 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
#15
Cell parameters
a = 4.8507(2) Å · b = 16.6156(2) Å · c = 20.5445(7) Å
Cell angles
β = 90.245(1) °
Ratio a:b:c
1 : 3.425 : 4.235
Unit cell volume
1655.82 ų
Z
4
Type-locality form

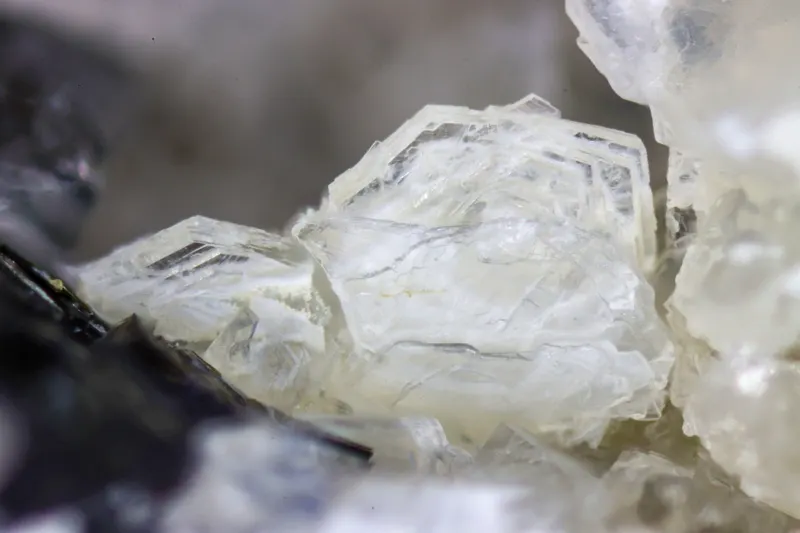

Thin, tabular crystals no larger than 0.1 mm.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1815.999287.982
48.20%
13AlAluminiumAluminium426.982107.928
18.06%
14SiSiliconSilicon228.08556.170
9.40%
5BBoronBoron410.81043.240
7.24%
20CaCalciumCalcium140.07840.078
6.71%
19KPotassiumPotassium139.09839.098
6.54%
11NaSodiumSodium122.99022.990
3.85%
Total597.486100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Capranicaiet
  • IMA2009-086

In other languages

German
Capranicait · IMA 2009-086
Italian
capranicaite

Classification

Strunz
10th ed.

9.DB.50

  • 9SilicatesClass
  • 9.DInosilicatesDivision
  • 9.DBInosilicates with 2-periodic single chains, Si2O6; Pyroxene-related mineralsGroup
  • 9.DB.50CapranicaiteSpecies
Dana
8th ed.

65.01.12

  • 65Inosilicates Single-width, Unbranched Chains, (w=1)Class
  • 65.01Single-Width Unbranched Chains, W=1 with chains P=2Type
  • 65.01.12— unnamed intermediate level —Group
  • 65.01.12CapranicaiteSpecies

Literature, links & citation

Citations
  1. 2010Callegari, A.M., et al. (2010) Capranicaite: a new mineral from Capranica, Viterbo, Italy. 20th General Meeting of the IMA (IMA2010), Budapest, Hungary, August 21-27, CD of Abstracts, p. 495.
  2. 2011Callegari, A.M., Boiocchi, M., Bellatreccia, F., Caprilli, E., Medenbach, O., Cavallo, A. (2011) Capranicaite, (K,◻)(Ca,Na)Al4B4Si2O18: a new inosilicate from Capranica, Italy, with a peculiar topology of the periodic single chain [Si2O6]. Mineralogical Magazine: 75: 33-43.
  3. 2015(2015) Capranicaite. Handbook of Mineralogy. Mineralogical Society of America
