Carlfriesite

CaTe4+2Te6+O8
IMA status
  • Approved
IMA symbol
Clf
Discovered
1975
Also known as
  • Carlfriesiet
  • Carlsfriesit
  • Carlsfriesita
  • +2 more

Where it forms, where it's found

Geological setting

Cavities in oxidized hydrothermal Au-Te deposit.

Type locality
Bambollita Mine
  1. Moctezuma
  2. Moctezuma Municipality
  3. Sonora
  4. Mexico

29.6925°, -109.7081°

9recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Yellow
Streak
Very pale yellow
Tenacity
brittle
Cleavage
Imperfect/Fair

Fair on (010)

Density
6.3 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 80° · 2V calc = 79°
Refractive index
1.982 – 2.19
Surface relief
Very high
Principal indices
nα 1.982 · nβ 2.095 · nγ 2.19
Pleochroism
Weak

In yellows.

Dispersion
strong
Extinction
Y = b; X ∧ c = 28°.
Notes

Absorption: X = Y < Z.

Michel-Lévy diagramhighlighted lineδ = 0.2080
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]2080 nm4th order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation2080 nm
Order4th order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
#10
Cell parameters
a = 12.576(2) Å · b = 5.662(3) Å · c = 9.994(2) Å
Cell angles
β = 115.56(3) °
Ratio a:b:c
1 : 0.450 : 0.795
Z
4

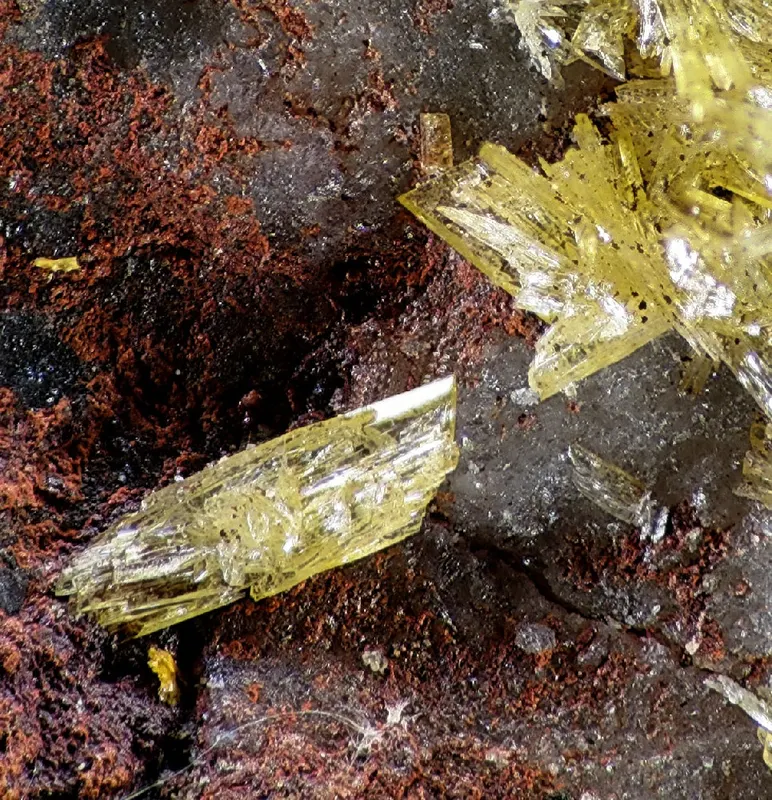

Morphology

Axe head shaped crystals, radial sprays, botyroidal crusts.

Type-locality form

Botryoidal crusts and less frequently as tiny sprays of sharply euhedral crystals.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
52TeTelluriumTellurium3127.600382.800
69.49%
8OOxygenOxygen815.999127.992
23.23%
20CaCalciumCalcium140.07840.078
7.28%
Total550.870100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Carlfriesiet
  • Carlsfriesit
  • Carlsfriesita
  • Carlsfriesite
  • IMA1973-013

In other languages

German
Carlfriesit · IMA 1973-013
Italian
Carlfriesite
Chinese
碲钙石

Classification

Strunz
10th ed.

4.JK.25

  • 4OxidesClass
  • 4.JArsenites, antimonites, bismuthites, sulfites, selenites, tellurites; iodatesDivision
  • 4.JKTellurites without additional anions, without H2OGroup
  • 4.JK.25CarlfriesiteSpecies
Dana
8th ed.

34.05.03.01

  • 34Selenites, Tellurites and SulfitesClass
  • 34.05A(X3O8)Type
  • 34.05.03— unnamed intermediate level —Group
  • 34.05.03.01CarlfriesiteSpecies
CIM

28.4.2

  • 28Selenites, Selenates, Tellurites, and TelluratesClass
  • 28.4TelluratesGroup
  • 28.4.2CarlfriesiteSpecies

Literature, links & citation

Citations
  1. 1975Williams, Sidney A., Gaines, Richard V. (1975) Carlfriesite, H4Ca(TeO3)3, a new mineral from Moctezuma, Sonora, Mexico. Mineralogical Magazine, 40 (310) 127-130 doi:10.1180/minmag.1975.040.310.02 DOI: 10.1180/minmag.1975.040.310.02
  2. 1976Fleischer, Michael, Pabst, Adolf, Cabri, Louis J. (1976) New Mineral Names. American Mineralogist, 61 (9-10) 1053-1056
  3. 1978Effenberger, Herta, Zemann, Josef, Mater, Helmut (1978) Carlfriesite: crystal structure, revision of chemical formula, and synthesis. American Mineralogist, 63 (9-10) 847-852
  4. 2005(2005) Carlfriesite. Handbook of Mineralogy. Mineralogical Society of America
  5. 2009Frost, Ray L., Dickfos, Marilla J., Keeffe, Eloise C. (2009) Raman spectroscopic study of the tellurite minerals: Carlfriesite and spiroffite. Spectrochimica Acta Part A: Molecular and Biomolecular Spectroscopy, 71 (5) 1663-1666 doi:10.1016/j.saa.2008.06.014DOI: 10.1016/j.saa.2008.06.014
