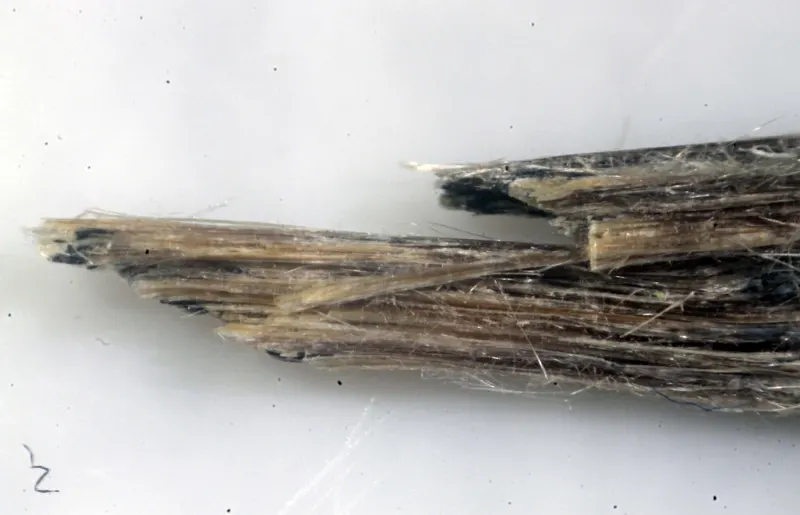

Carlosturanite

(Mg,Fe2+,Ti)21(Si,Al)12O28(OH)34 · H2O
IMA status
  • Approved
IMA symbol
Csr
Discovered
1985
IMA approved
1984
Also known as
  • Carlosturaniet
  • IMA1984-009

Where it forms, where it's found

Geological setting

veins crosscutting a metamorphic antigorite serpentinite, in an ophiolite.

Type locality
Auriol Mine
  1. Casteldelfino
  2. Cuneo Province
  3. Piedmont
  4. Italy

44.5867°, 7.1189°

13recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789102.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Light brown
Streak
Whitish
Tenacity
flexible
Cleavage
Very Good

(001)

Density
2.63 g/cm³

Optical

Optical type
Biaxial
Refractive index
1.605
Surface relief
Moderate
Principal indices
nβ 1.605
Pleochroism
Weak

Orange-brown parallel [010]; pale orange-brown perpendicular [010].

Dispersion
r > v

Crystallography

Crystal system
Monoclinic
Space group
Cm
Cell parameters
a = 36.70 Å · b = 9.41 Å · c = 7.29 Å
Cell angles
β = 101.1 °
Ratio a:b:c
1 : 0.256 : 0.199
Z
2
Parting
(010)

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
26FeIronIron2155.8451172.745
26.69%
8OOxygenOxygen6315.9991007.937
22.94%
22TiTitaniumTitanium2147.8671005.207
22.88%
12MgMagnesiumMagnesium2124.305510.405
11.62%
14SiSiliconSilicon1228.085337.020
7.67%
13AlAluminiumAluminium1226.982323.784
7.37%
1HHydrogenHydrogen361.00836.288
0.83%
Total4393.386100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Mn
  • Cr

Synonyms

  • Carlosturaniet
  • IMA1984-009

In other languages

German
Carlosturanit · IMA 1984-009
Italian
Carlosturanite
Chinese
卡硅铁镁石

Classification

Strunz
10th ed.

9.DJ.25

  • 9SilicatesClass
  • 9.DInosilicatesDivision
  • 9.DJInosilicates with 4-periodic double and triple chainsGroup
  • 9.DJ.25CarlosturaniteSpecies
Dana
8th ed.

67.01.02.01

  • 67Inosilicates Unbranched Chains with W > 2Class
  • 67.01Unbranched Chains with W>2 with W=3Type
  • 67.01.02— unnamed intermediate level —Group
  • 67.01.02.01CarlosturaniteSpecies
CIM

16.14.11

  • 16Silicates Containing Aluminum and other MetalsClass
  • 16.14Aluminosilicates of Ti, Zr, Sn and PbGroup
  • 16.14.11CarlosturaniteSpecies

Literature, links & citation

Citations
  1. 1985Compagnoni, Roberto, Ferraris, Giovanni, Mellini, Marcello (1985) Carlosturanite, a new asbestiform rock-forming silicate from Val Varaita, Italy. American Mineralogist, 70 (7-8) 767-772
  2. 1985Mellini, Marcello, Ferraris, Giovanni, Compagnoni, Roberto (1985) Carlosturanite: HRTEM evidence of a polysomatic series including serpentine. American Mineralogist, 70 (7-8) 773-781
  3. 1991Belluso, Elena, Ferraris, Giovanni (1991) New data on balangeroite and carlosturanite from alpine serpentinites. European Journal of Mineralogy, 3 (3) 559-566 doi:10.1127/ejm/3/3/0559DOI: 10.1127/ejm/3/3/0559
  4. 2001(2001) Carlosturanite. Handbook of Mineralogy. Mineralogical Society of America
  5. 2007Belluso, E.; Fornero, E.; Cairo, S.; Albertazzi, G.; Rinaudo, C. (2007) The application of micro-Raman spectroscopy to distinguish carlosturanite from serpentine-group minerals. The Canadian Mineralogist, 45 (6). 1495-1500 doi:10.3749/canmin.45.6.1495DOI: 10.3749/canmin.45.6.1495
