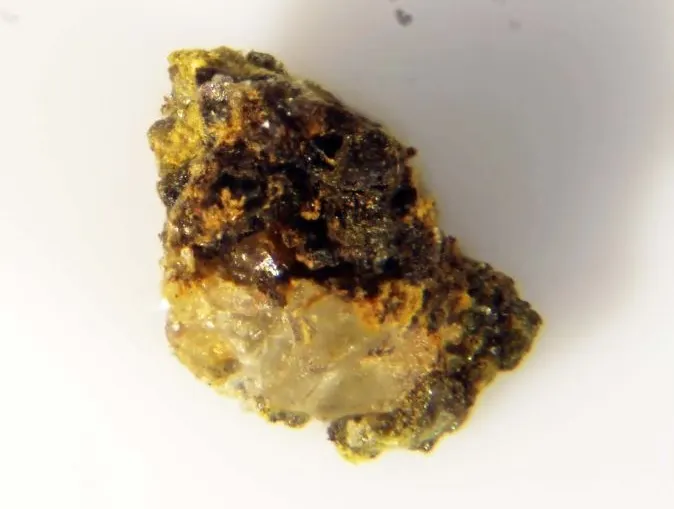

Cassedanneite

Pb5(VO4)2(CrO4)2 · H2O
IMA status
  • Approved
IMA symbol
Cda
IMA approved
1984
Also known as
  • Cassedanneiet
  • IMA1984-063

Where it forms, where it's found

Geological setting

Oxidized zone of gold-bearing quartz veins.

Type locality
Berezovsk deposit
  1. Beryozovsky
  2. Sverdlovsk Oblast
  3. Russia

56.9000°, 60.7833°

5recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789103.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Resinous
Transparency
Translucent
Colour
Orange-red
Streak
Yellow-orange
Tenacity
brittle
Cleavage
None Observed
Density
6.37 g/cm³

Optical

Optical type
Biaxial (-)
Refractive index
2.26 – 2.395
Surface relief
Very high
Principal indices
nα 2.395 · nγ 2.260
Birefringence
0.135
Reflectance R%
(2.88) 440, (2.75) 460, (2.66) 480, (2.58) 500, (2.51) 520, (2.46) 540, (2.41) 560, (2.40) 580, (2.39) 600, (2.37) 620, (2.36) 640, (2.35) 660, (2.33) 680, (2.33) 700, (2.33) 720, (2.36) 740, (2.35) 760, (2.37) 780
UV response
Not fluorescent in UV
Reflected-light panel
2.5 %isotropic · single curve
Specimen sRGB 59, 39, 20
White reference100 % reflector under same lamp

Crystallography

Crystal system
Monoclinic
Cell parameters
a = 7.6938 Å · b = 5.7636 Å · c = 9.7958 Å
Cell angles
β = 115.93 °
Ratio a:b:c
1 : 0.749 : 1.273
Z
1
Morphology

Platy on (010).

Twinning

Plates are hexagonal in outline due to twinning.

Type-locality form

Round aggregates of small crystals.

Comment

Space Group: A2/m, A2, or Am

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
82PbLeadLead5207.2001036.000
68.35%
8OOxygenOxygen1715.999271.983
17.94%
24CrChromiumChromium251.996103.992
6.86%
23VVanadiumVanadium250.942101.884
6.72%
1HHydrogenHydrogen21.0082.016
0.13%
Total1515.875100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Cu
  • Zn
  • P

Synonyms

  • Cassedanneiet
  • IMA1984-063

In other languages

German
Cassedanneit · IMA 1984-063
Italian
Cassedanneite
Chinese
水铅钒铬矿

Classification

Strunz
10th ed.

7.FC.20

  • 7SulfatesClass
  • 7.FChromatesDivision
  • 7.FCWith PO4, AsO4, SiO4Group
  • 7.FC.20CassedanneiteSpecies
Dana
8th ed.

43.03.02.02

  • 43Compound Phosphates, Etc.Class
  • 43.03Hydrated Normal Compound Phosphates, etc·Type
  • 43.03.02— unnamed intermediate level —Group
  • 43.03.02.02CassedanneiteSpecies
CIM

22.5.3

  • 22Phosphates, Arsenates or Vanadates with other AnionsClass
  • 22.5Phosphates, arsenates or vanadates with chromate, molybdate, niobate or tantalateGroup
  • 22.5.3CassedanneiteSpecies

Literature, links & citation

Citations
  1. 1988Jambor, John L., Ercit, Ernst A. J. Burke T. Scott, Grice, Joel D. (1988) New Mineral Names. American Mineralogist, 73 (11-12) 1492-1499
  2. 1988Cesbron, F., Giraud, R., Pillard, F., Poullen, J.F. (1988) Le cassedanneite, nouveau chromo-vanadate de plomb de Beresovsk (Oural). Comptes Rendus de l'Academie des Sciences, Paris, Series II: 306(2): 125-127.
  3. 2005(2005) Cassedanneite. Handbook of Mineralogy. Mineralogical Society of America
