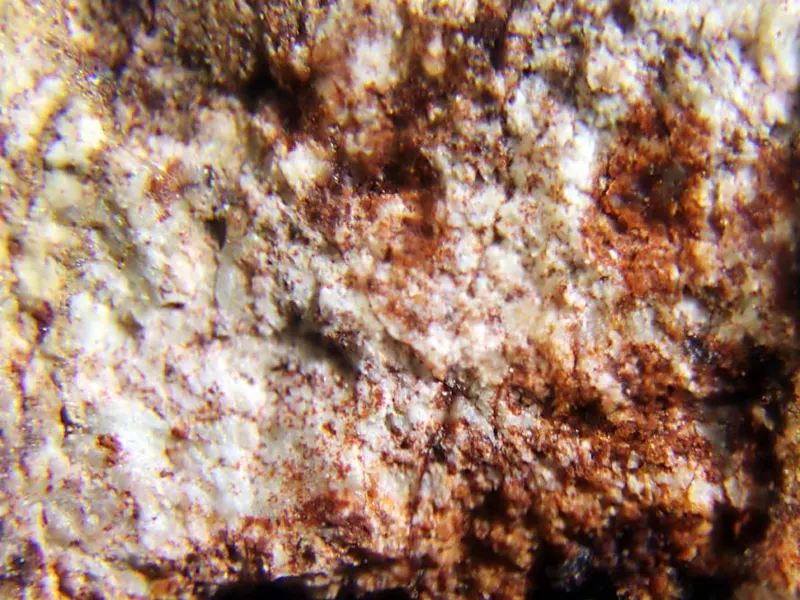

Caysichite-(Y)

(Ca,Yb,Er)4Y4(Si8O20)(CO3)6(OH) · 7H2O
IMA status
  • Approved
IMA symbol
Cay-Y
Discovered
1969
Also known as
  • Caysichiet-(Y)
  • IMA1973-044

Where it forms, where it's found

Geological setting

Granite pegmatite.

Type locality
Evans-Lou Mine
  1. Lake Saint-Pierre
  2. Saint-Pierre-de-Wakefield
  3. Val-des-Monts
  4. Les Collines-de-l'Outaouais RCM
  5. Outaouais
  6. Québec
  7. Canada

45.7611°, -75.7015°

10recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789104.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Colourless · white · pale yellow · rarely greenish
Streak
White
Density
3.03 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 61° · 2V calc = 52 – 60°
Refractive index
1.586 – 1.626
Surface relief
Moderate
Principal indices
nα 1.586 – 1.589 · nβ 1.614 – 1.616 · nγ 1.621 – 1.626
Dispersion
r > v
Extinction
X = b; Y = a; Z = c.
UV response
Not fluorescent in LW or SW UV.
Michel-Lévy diagramhighlighted lineδ = 0.0360
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]360 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation360 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Space group
#21
Cell parameters
a = 13.2693(3) Å · b = 13.9455(4) Å · c = 9.7384(2) Å
Ratio a:b:c
1 : 1.051 : 0.734
Z
4
Type-locality form

Coating on fractures or as incrustations with a divergent columnar structure. Rare terminated crystals.

Comment

Non-standard space-group setting Ccm21.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen4615.999735.954
25.16%
70YbYtterbiumYtterbium4173.045692.180
23.67%
68ErErbiumErbium4167.259669.036
22.87%
39YYttriumYttrium488.906355.624
12.16%
14SiSiliconSilicon828.085224.680
7.68%
20CaCalciumCalcium440.078160.312
5.48%
6CCarbonCarbon612.01172.066
2.46%
1HHydrogenHydrogen151.00815.120
0.52%
Total2924.972100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Caysichiet-(Y)
  • IMA1973-044

In other languages

German
Caysichit-(Y) · IMA 1973-044
Italian
Caysichite- · Caysichite-(Y)

Classification

Strunz
10th ed.

9.DJ.15

  • 9SilicatesClass
  • 9.DInosilicatesDivision
  • 9.DJInosilicates with 4-periodic double and triple chainsGroup
  • 9.DJ.15Caysichite-(Y)Species
Dana
8th ed.

70.01.02.02

  • 70Inosilicates Column or Tube StructuresClass
  • 70.01Column or Tube Structures with columnar silicate unitsType
  • 70.01.02Double crankshaft chainsGroup
  • 70.01.02.02Caysichite-(Y)Species
CIM

17.4.11

  • 17Silicates Containing other AnionsClass
  • 17.4Silicates with carbonatesGroup
  • 17.4.11Caysichite-(Y)Species

Literature, links & citation

Citations
  1. 1974Hogarth, D.D., Chao, G.Y., Plant. G.A., Steacy, H.R. (1974): Caysichite, a new silico-carbonate of yttrium and calcium. Canadian Mineralogist 12: 293-298.
  2. 1976Fleischer, Michael, Pabst, Adolf, Mandarino, Joseph A., Chao, George Y., Cabri, Louis, J. (1976) New Mineral Names. American Mineralogist, 61 (1-2) 174-186
  3. 1978Mellini, M., Merlino, S. (1978) Caysichite: a double crankshaft chain structure. Canadian Mineralogist: 16: 81-88.
  4. 1987Nickel, Ernest H., Mandarino, Joseph A. (1987) Procedures involving the IMA Commission on New Minerals and Mineral Names and guidelines on mineral nomenclature. American Mineralogist, 72 (9-10) 1031-1042
  5. 2001(2001) Caysichite-(Y). Handbook of Mineralogy. Mineralogical Society of America
