Cervandonite-(Ce)

(Ce,Nd,La)(Fe3+,Ti,Fe2+,Al)3O2(Si2O7)1-x+y(AsO3)1+x-y(OH)3x-3y
IMA status
  • Approved
IMA symbol
Cvd-Ce
Also known as
  • Cervandoniet-(Ce)
  • Cervandonit
  • Cervandonita
  • +2 more

Where it forms, where it's found

Geological setting

Narrow fissures.

Type locality
Monte Cervandone area
  1. Devero Alp
  2. Baceno
  3. Verbano-Cusio-Ossola Province
  4. Piedmont
  5. Italy

46.3242°, 8.2231°

6recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789105/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent · Opaque
Colour
Black

Translucent in thin splinters.

Streak
Brownish black
Tenacity
brittle
Cleavage
Poor/Indistinct

On (001)

Fracture
Conchoidal
Density
4.9 g/cm³

Optical

Optical type
Biaxial
Refractive index
1.99 – 2
Surface relief
Very high
Principal indices
nα 1.99 · nγ 2
Dispersion
r > v
Notes

Refractive indices are ~1.99 parallel to a direction in which the grain is yellowish, reddish brown, and ~2.0 where black.

Michel-Lévy diagramhighlighted lineδ = 0.0100
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]100 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation100 nm
Order1st order
XPL colour

Crystallography

Crystal system
Trigonal
Space group
#86
Cell parameters
a = 6.508(1) Å · c = 18.520(3) Å
Unit cell volume
679.4 ų
Z
3
Morphology

Rosette-like aggregates.

Type-locality form

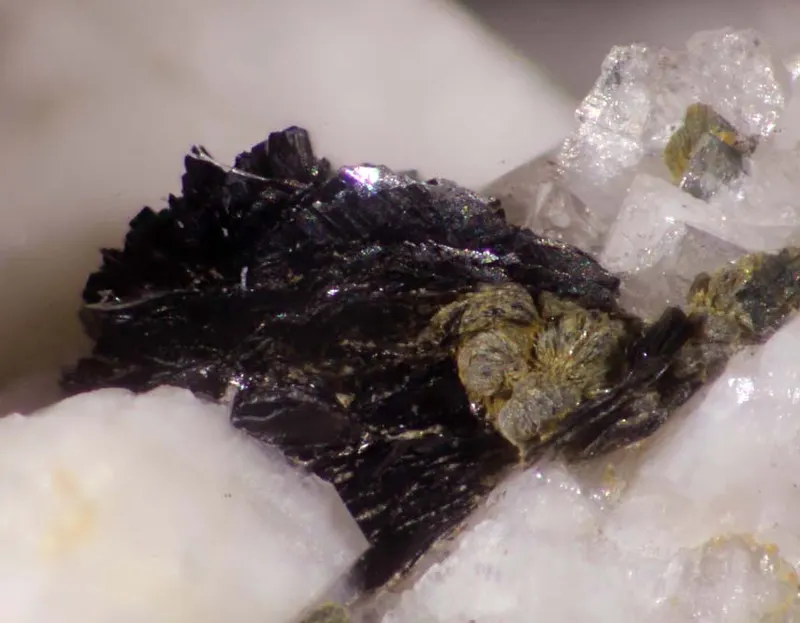

Black, rosettelike aggregates up to 4 mm in diameter.

Comment

Monoclinic supercell (Z = 6)

Crystal structure

Synonyms

  • Cervandoniet-(Ce)
  • Cervandonit
  • Cervandonita
  • Cervandonite
  • IMA1986-044

In other languages

German
Cervandonit-(Ce) · IMA 1986-044
Italian
Cervandonite- · Cervandonite-(Ce)

Classification

Strunz
10th ed.

9.BE.92

  • 9SilicatesClass
  • 9.BSorosilicatesDivision
  • 9.BESi2O7 groups, with additional anions; cations in octahedral [6] and greater coordinationGroup
  • 9.BE.92Cervandonite-(Ce)Species
Dana
8th ed.

43.04.12.01

  • 43Compound Phosphates, Etc.Class
  • 43.04Anhydrous Compound Phosphates, etc·, Containing Hydroxyl or HalogenType
  • 43.04.12— unnamed intermediate level —Group
  • 43.04.12.01Cervandonite-(Ce)Species
CIM

17.7.21

  • 17Silicates Containing other AnionsClass
  • 17.7Silicates with vanadate, arsenate or antimonateGroup
  • 17.7.21Cervandonite-(Ce)Species

Literature, links & citation

Citations
  1. 1988Armbruster, T., Bühler, C., Graeser, S., Stalder, H.A., Amthauer, G. (1988) Cervandonite-(Ce), (Ce,Nd,La)(Fe3+,Fe2+,Ti4+,Al)3SiAs(Si,As)O13, a new alpine fissure mineral. Schweizerische Mineralogische und Petrographische Mitteilungen: 68: 125-132.
  2. 1990Jambor, John L., Grew, Edward S. (1990) New Mineral Names. American Mineralogist, 75 (7-8) 931-937
  3. 2001(2001) Cervandonite-(Ce). Handbook of Mineralogy. Mineralogical Society of America
  4. 2007Roth, P. (2007) Minerals first discovered in Switzerland and minerals named after Swiss individuals, Kristallografik Verlag (Achberg Germany), 50-51.
  5. 2008Demartin, F.; Gramaccioli, C. M.; Graeser, S. (2008) The crystal structure of cervandonite-(Ce), an interesting example of As3+ → Si diadochy. The Canadian Mineralogist, 46 (2). 423-430 doi:10.3749/canmin.46.2.423 DOI: 10.3749/canmin.46.2.423
