Chanabayaite

Cu2Cl(N3C2H2)2(NH3,Cl,H2O,◻)4
IMA status
  • Approved
IMA symbol
Cba
IMA approved
2013
Also known as
  • Chanabayaiet
  • IMA2013-065

Where it forms, where it's found

Geological setting

Found in a guano deposit.

Type locality
Pabellón de Pica
  1. Chanabaya
  2. Iquique
  3. Iquique Province
  4. Tarapacá
  5. Chile

-20.9089°, -70.1381°

1recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789102/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Blue
Tenacity
brittle
Cleavage
Perfect

Perfect cleavage on (001) and imperfect cleavage on (100) and (010).

Density
1.48 g/cm³

Optical

Optical type
Biaxial (-)
Refractive index
1.561 – 1.62
Surface relief
Moderate
Principal indices
nα 1.561 · nβ 1.615 · nγ 1.620
Pleochroism
Strong

Z ~ Y = deep blue, X = pale gray-blue.

Dispersion
Moderate, r > v.
Extinction
X = c.
Notes

Absorption: Z = Y >> X.

Michel-Lévy diagramhighlighted lineδ = 0.0590
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]590 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation590 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Orthorhombic
Space group
Imma
Cell parameters
a = 19.484(3) Å · b = 7.2136(10) Å · c = 11.999(4) Å
Ratio a:b:c
1 : 0.370 : 0.616
Unit cell volume
1686.5 ų
Z
2
Morphology

Prismatic

Type-locality form

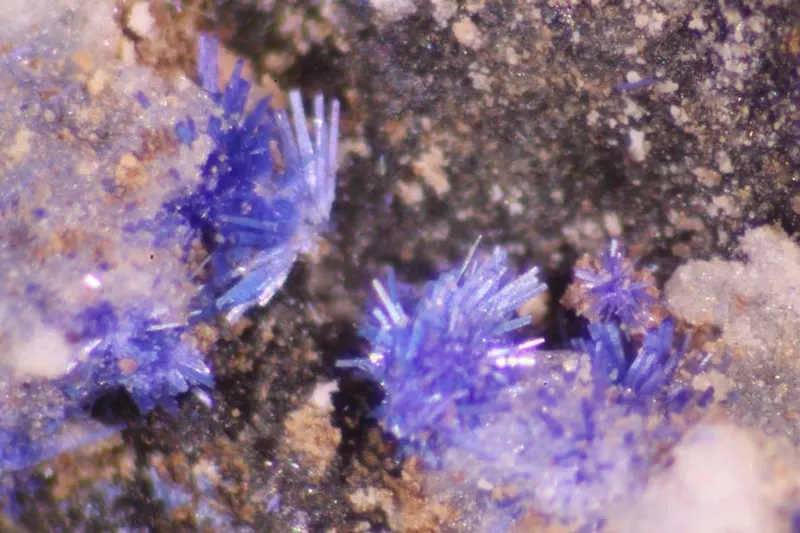

Blue translucent imperfect prismatic crystals up to 0.05 x 0.1 x 0.5 mm in size and their radial aggregates.

Synonyms

  • Chanabayaiet
  • IMA2013-065

In other languages

German
Chanabayait · IMA 2013-065
Italian
chanabayaite

Classification

Strunz
10th ed.

10.CA.45

  • 10Organic CompoundsClass
  • 10.CMiscellaneous Organic MineralsDivision
  • 10.CAMiscellaneous Organic MineralsGroup
  • 10.CA.45ChanabayaiteSpecies

Literature, links & citation

Citations
  1. 2013Williams, P. A., Hatert, F., Pasero, M., Mills, S. J. (2013) New minerals and nomenclature modifications approved in 2013. CNMNC Newsletter No.17. Mineralogical Magazine, 77 (7) 2997-3005 doi:10.1180/minmag.2013.077.7.09DOI: 10.1180/minmag.2013.077.7.09
  2. 2015Chukanov, N.V., Zubkova, N.V., Mohn, G., Pekov, I.V., Pushcharovsky, D.Yu., Zadov, A.E. (2015): Chanabayaite, Cu2(N3C2H2)2Cl(NH3Cl,H2О,□)4 a new mineral containing triazolate anion. Zapiski RMO, 144(2), 36-47.
  3. 2015Zubkova, Natalia V., Chukanov, Nikita V., Pekov, Igor V., Möhn, Gerhard, Giester, Gerald, Yapaskurt, Vasiliy O., Lykova, Inna S., Pushcharovsky, Dmitry Yu. (2015) The crystal structure of the natural 1,2,4-triazolate compound NaCu2Cl3[N3C2H2]2[NH3]2·4H2O. Zeitschrift für Kristallographie - Crystalline Materials, 231 (1). 47-53 doi:10.1515/zkri-2015-1861DOI: 10.1515/zkri-2015-1861
  4. 2016(2016) Chanabayaite. Handbook of Mineralogy. Mineralogical Society of America
  5. 2023Košek, Filip, Němec, Ivan, Jehlička, Jan (2023) Raman study of several Cu‐bearing complex minerals from the guano deposit at Pabellón de Pica, Tarapaca region, Chile. Journal of Raman Spectroscopy, 54 (11) 1172-1182 doi:10.1002/jrs.6506DOI: 10.1002/jrs.6506
