Chenowethite

Mg(H2O)6[(UO2)2(SO4)2(OH)2] · 5H2O
IMA status
  • Approved
IMA symbol
Chw
IMA approved
2022
Also known as
  • Chenowethiet
  • IMA2022-063

Where it forms, where it's found

Geological setting

Efflorescence crusts on tunnel walls.

Type locality
Blue Lizard Mine
  1. Red Canyon Mining District
  2. San Juan County
  3. Utah
  4. USA

37.5572°, -110.2968°

4recorded occurrences
Source · OpenStreetMap

Radioactivity

Physical

Hardness
123456789102/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
pale green yellow
Streak
white
Tenacity
brittle
Cleavage
Perfect

two cleavages: (010) perfect and (001) good

Fracture
Splintery · Step-Like
Density
3.05 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 72°
Refractive index
1.53 – 1.565
Surface relief
Moderate
Principal indices
nα 1.530 · nβ 1.553 · nγ 1.565
Pleochroism
Weak

exhibits weak pleochroism in shades of pale green yellow: X < Y < Z.

Dispersion
r > v (slight)
UV response
nonfluorescent in both long- and short-wave ultraviolet illumination
Michel-Lévy diagramhighlighted lineδ = 0.0350
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]350 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation350 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Space group
Cmcm
Cell parameters
a = 6.951(2) Å · b = 19.053(6) Å · c = 16.372(5) Å
Ratio a:b:c
1 : 2.741 : 2.355
Z
4
Twinning

None

Type-locality form

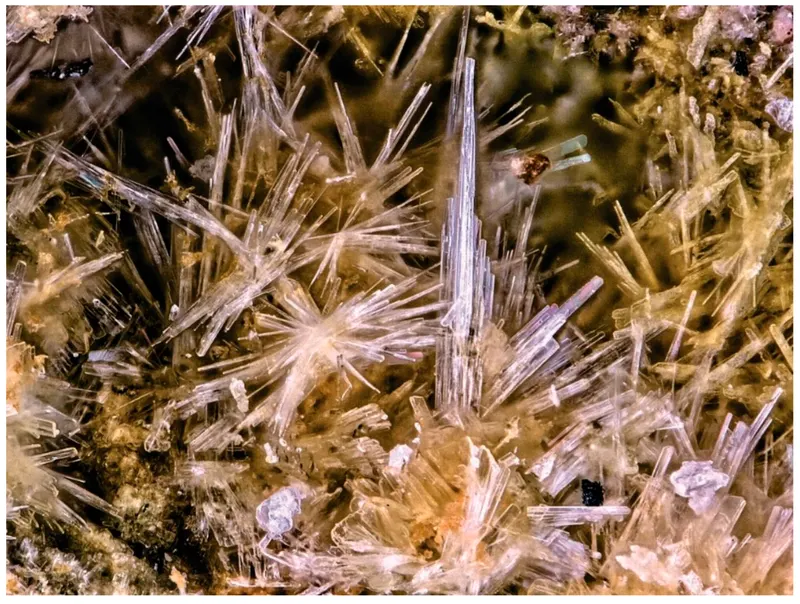

Crystals are long, thin blades up to about 0.5 mm long, occurring in irregular sprays and subparallel groups.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
92UUraniumUranium2238.029476.058
48.15%
8OOxygenOxygen2515.999399.975
40.46%
16SSulfurSulfur232.06064.120
6.48%
12MgMagnesiumMagnesium124.30524.305
2.46%
1HHydrogenHydrogen241.00824.192
2.45%
Total988.650100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Chenowethiet
  • IMA2022-063

In other languages

German
Chenowethit

Classification

Strunz
10th ed.

7.EB

  • 7SulfatesClass
  • 7.EUranyl sulfatesDivision
  • 7.EBWith medium-sized cationsGroup
  • 7.EBChenowethiteSpecies

Literature, links & citation

Citations
  1. 2022Miyawaki, Ritsuro, Hatert, Frédéric, Pasero, Marco, Mills, Stuart J. (2022) IMA Commission on New Minerals, Nomenclature and Classification (CNMNC) – Newsletter 70. European Journal of Mineralogy, 34 (6) 591-601 doi:10.5194/ejm-34-591-2022 DOI: 10.5194/ejm-34-591-2022
  2. 2022Kampf, Anthony R., Plášil, Jakub, Olds, Travis A., Ma, Chi, Marty, Joe (2022) Chenowethite, Mg(H2O)6[(UO2)2(SO4)2(OH)2]·5H2O, a new mineral with uranyl-sulfate sheets from Red Canyon, Utah, USA. Minerals, 12 (12) 1594 doi:10.3390/min12121594 DOI: 10.3390/min12121594
  3. 2024Sejkora, Jiří; Plášil, Jakub (2024) Chenowethite, rare Mg-uranyl-sulphate, from the Jáchymov ore district, Krušné hory Mountains (Czech Republic) - description and Raman spectroscopy. Bulletin Mineralogie Petrologie, 32 (1). 37-44 doi:10.46861/bmp.32.037DOI: 10.46861/bmp.32.037
