Chervetite

Pb2V5+2O7
IMA status
  • Approved
IMA symbol
Crv
Discovered
1963
Also known as
  • Chervetiet

Where it forms, where it's found

Geological setting

Oxidation zone of uranium deposit

Type locality
Mounana Mine
  1. Mounana
  2. Léboumbi-Leyou Department
  3. Haut-Ogooué Province
  4. Gabon

-1.4333°, 13.1500°

6recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789102 – 2.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Gray to brown
Streak
White
Cleavage
Distinct/Good

(100) and (010)

Density
6.30 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 50°
Refractive index
2.25 – 2.41
Surface relief
Very high
Principal indices
nα 2.250 · nβ 2.382 · nγ 2.410
Pleochroism
Weak

X == light brownish; Z == brownish.

Dispersion
r > v very strong
Michel-Lévy diagramhighlighted lineδ = 0.1600
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]1600 nm3rd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation1600 nm
Order3rd order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
P21/a
Cell parameters
a = 13.3 Å · b = 7.14 Å · c = 7.08 Å
Cell angles
β = 106 °
Ratio a:b:c
1 : 0.537 : 0.532
Z
4
Twinning

Commonly twinned on (100) contact twins or finely polysynthetic lamellae.

Type-locality form

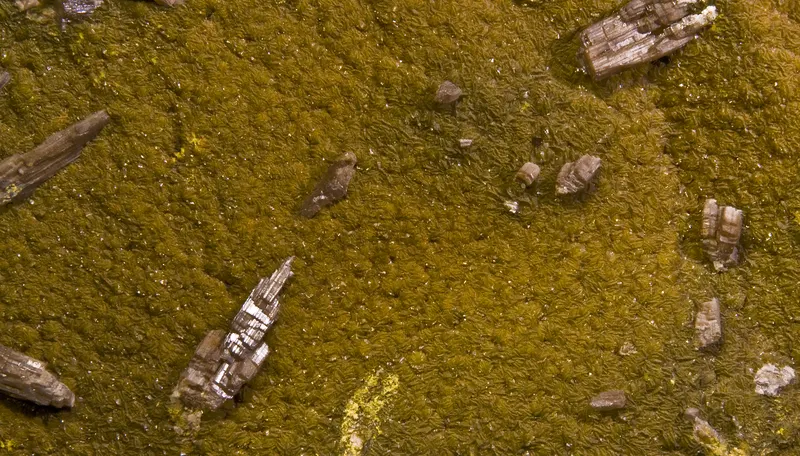

Crystals from less than a mm to several cm, always twinned. Also as pseudomorphs after francevillite.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
82PbLeadLead2207.200414.400
65.96%
8OOxygenOxygen715.999111.993
17.82%
23VVanadiumVanadium250.942101.884
16.22%
Total628.277100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Chervetiet

In other languages

French
Chervétite
German
Chervetit
Italian
Chervetite
Chinese
斜钒铅矿

Classification

Strunz
10th ed.

8.FA.15

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.FPolyphosphates, Polyarsenates, [4]-PolyvanadatesDivision
  • 8.FAPolyphosphates, etc., without OH and H2O; dimers of corner-sharing RO4 tetrahedra.Group
  • 8.FA.15ChervetiteSpecies
Dana
8th ed.

38.05.05.01

  • 38Anhydrous Normal Phosphates, Arsenates, and VanadatesClass
  • 38.05MiscellaneousType
  • 38.05.05— unnamed intermediate level —Group
  • 38.05.05.01ChervetiteSpecies
CIM

21.3.9

  • 21Vanadates (and vanadates with arsenate or phosphate)Class
  • 21.3Vanadates of Al, rare earths, Pb, V or BiGroup
  • 21.3.9ChervetiteSpecies

Literature, links & citation

Citations
  1. 1963Bariand, Pierre; Chantret, Francis; Pouget, R.; Rimsky, Alexandre (1963) Une nouvelle espèce minérale : la chervetite, pyrovanadate de plomb Pb2V2O7. Bulletin de la Société française de Minéralogie et de Cristallographie, 86 (2). 117-120 doi:10.3406/bulmi.1963.5629DOI: 10.3406/bulmi.1963.5629
  2. 1963Fleischer, Michael (1963) New Mineral Names. American Mineralogist, 48 (11-12) 1413-1421
  3. 1965Cesbron, Fabien (1965) Données nouvelles sur la chervétite. Bulletin de Minéralogie, 88 (1) 126-129 doi:10.3406/bulmi.1965.5813DOI: 10.3406/bulmi.1965.5813
  4. 1967Kawahara, Akira (1967) La structure cristalline de la chervétite. Bulletin de Minéralogie, 90 (3) 279-284 doi:10.3406/bulmi.1967.6123DOI: 10.3406/bulmi.1967.6123
  5. 1967IMA (1967) International Mineralogical Association: Commission on New Minerals and Mineral Names. Mineralogical Magazine and Journal of the Mineralogical Society, 36 (277) 131-136 doi:10.1180/minmag.1967.036.277.20 DOI: 10.1180/minmag.1967.036.277.20
