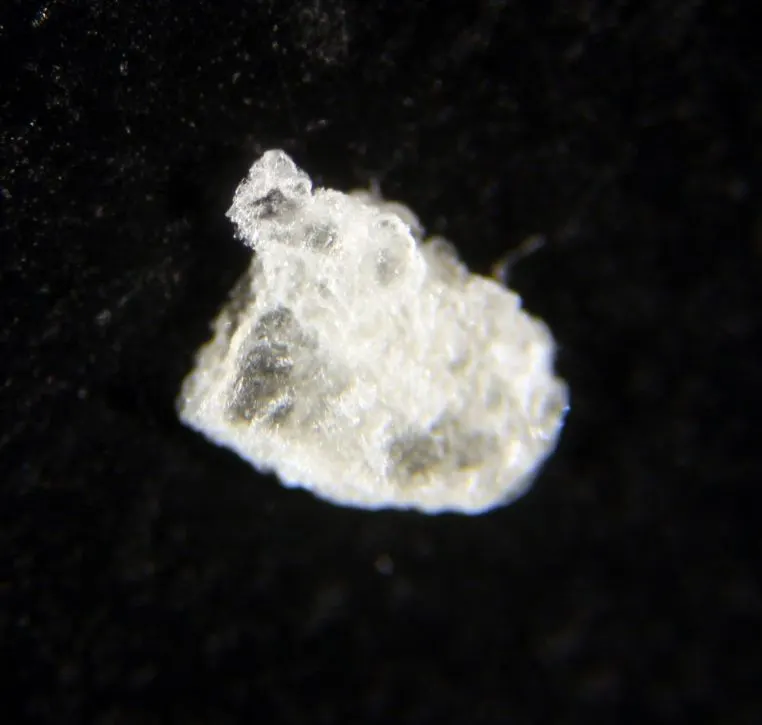

Chesterite

Mg17Si20O54(OH)6
IMA status
  • Approved
IMA symbol
Chs
Discovered
1977
IMA approved
1977
Also known as
  • Chesteriet
  • IMA1977-010

Where it forms, where it's found

Geological setting

'Blackwall zone' or the chlorite- or biotite-bearing metasomatic reaction zone sometimes found at the boundary of a metamorphosed ultramafic body.

Type locality
Carlton Quarry
  1. Chester
  2. Windsor County
  3. Vermont
  4. USA

43.2722°, -72.6332°

7recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789102 – 2.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
colorless to very light pinkish brown

colorless in thin section

Cleavage
Perfect

(110)

Density
3.08 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 71° · 2V calc = 70°
Refractive index
1.617 – 1.64
Surface relief
Moderate
Principal indices
nα 1.617 · nβ 1.632 · nγ 1.64
Dispersion
r < v
Michel-Lévy diagramhighlighted lineδ = 0.0230
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]230 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation230 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Cell parameters
a = 18.614 Å · b = 45.306 Å · c = 5.296 Å
Ratio a:b:c
1 : 2.434 : 0.285
Z
4
Parting
breakage along (100) and (010) may be due to parting.
Type-locality form

Intergrowths in anthophyllite and cummingtonite. Radiating sprays of prismatic crystals to 5 cm.

Comment

Space Group: A21ma:

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen6015.999959.940
49.46%
14SiSiliconSilicon2028.085561.700
28.94%
12MgMagnesiumMagnesium1724.305413.185
21.29%
1HHydrogenHydrogen61.0086.048
0.31%
Total1940.873100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Al
  • Mn
  • Ca
  • Na

Synonyms

  • Chesteriet
  • IMA1977-010

In other languages

French
Chesterite
German
Chesterit · IMA 1977-010
Italian
Chesterite

Classification

Strunz
10th ed.

9.DF.05

  • 9SilicatesClass
  • 9.DInosilicatesDivision
  • 9.DFInosilicates with 2-periodic multiple chainsGroup
  • 9.DF.05ChesteriteSpecies
Dana
8th ed.

68.01.01.01

  • 68Inosilicates Structures with Chains of More Than One WidthClass
  • 68.01Structures with Chains of More Than One WidthType
  • 68.01.01— unnamed intermediate level —Group
  • 68.01.01.01ChesteriteSpecies
CIM

14.21.10

  • 14Silicates not Containing AluminumClass
  • 14.21Silicates of Fe and MgGroup
  • 14.21.10ChesteriteSpecies

Literature, links & citation

Citations
  1. 1978Veblen, David R., Burnham, Charles W. (1978) New biopyriboles from Chester, Vermont: I. Descriptive mineralogy. American Mineralogist, 63 (9-10) 1000-1009
  2. 1978Veblen, David R., Burnham, Charles W. (1978) New biopyriboles from Chester, Vermont: II. The crystal chemistry of jimthompsonite, clinojimthompsonite, and chesterite, and the amphibole-mica reaction. American Mineralogist, 63 (11-12) 1053-1073
  3. 2001(2001) Chesterite. Handbook of Mineralogy. Mineralogical Society of America
