Chinleite-(Y)

NaY(SO4)2 · H2O
IMA status
  • Approved
IMA symbol
Chi-Y
IMA approved
2016
Also known as
  • Chinleiet-(Y)
  • IMA2016-017

Where it forms, where it's found

Geological setting

Secondary alteration mineral

Type locality
Blue Lizard Mine
  1. Red Canyon Mining District
  2. San Juan County
  3. Utah
  4. USA

37.5572°, -110.2968°

2recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789102.5 – 3/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Colourless
Streak
White
Tenacity
brittle
Cleavage
Distinct/Good

Good parallel to [001], probably (100)

Fracture
Splintery
Density
3.385 g/cm³

Optical

Optical type
Uniaxial (+)
Refractive index
1.565 – 1.603
Surface relief
Moderate
Principal indices
nω 1.565 · nε 1.603
UV response
Nonfluorescent
Michel-Lévy diagramhighlighted lineδ = 0.0380
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]380 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation380 nm
Order1st order
XPL colour

Crystallography

Crystal system
Trigonal
Cell parameters
a = 6.890(2) Å · c = 12.767(2) Å
Unit cell volume
524.9 ų
Z
3
Type-locality form

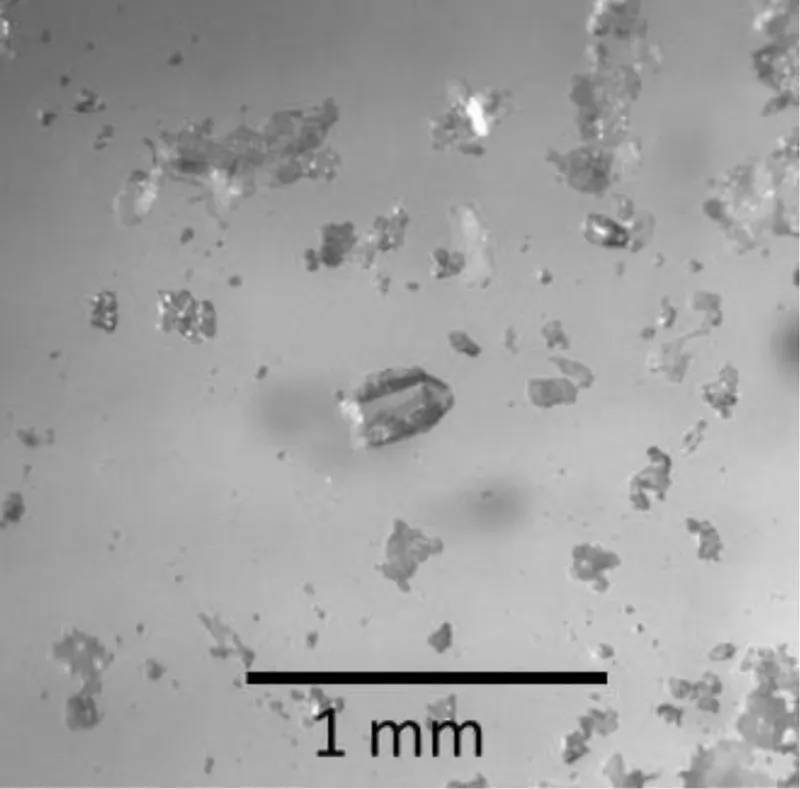

Thin, hexagonal (100) prisms, up to 0.3 mm, having pyramidal terminations consisting of the (101) and (011) forms; spray-like intergrowths and bow-tie aggregates were observed

Comment

R3221

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen915.999143.991
44.71%
39YYttriumYttrium188.90688.906
27.61%
16SSulfurSulfur232.06064.120
19.91%
11NaSodiumSodium122.99022.990
7.14%
1HHydrogenHydrogen21.0082.016
0.63%
Total322.023100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Chinleiet-(Y)
  • IMA2016-017

In other languages

German
Chinleit- · Chinleit-(Y) · IMA 2016-017

Classification

Strunz
10th ed.

7.CD.45

  • 7SulfatesClass
  • 7.CSulfates (selenates, etc.) without additional anions, with H2ODivision
  • 7.CDWith only large cationsGroup
  • 7.CD.45Chinleite-(Y)Species

Literature, links & citation

Citations
  1. 2011Yanhua Song, Haifeng Zou, Ye Sheng, Keyan Zheng, and Hongpeng You (2011) 3D Hierarchical Architectures of Sodium Lanthanide Sulfates: Hydrothermal Synthesis, Formation Mechanisms, and Luminescence Properties. Journal of Physical Chemistry C: 115: 19463–19469.
  2. 2016Hålenius, U., Hatert, F., Pasero, M., Mills, S. J. (2016) New minerals and nomenclature modifications approved in 2016, CNMNC Newsletter 32. Mineralogical Magazine, 80 (5) 915-922 doi:10.1180/minmag.2016.080.084DOI: 10.1180/minmag.2016.080.084
  3. 2017(2017) Chinleite-(Y). Handbook of Mineralogy. Mineralogical Society of America
  4. 2017Kampf, Anthony R., Nash, Barbara P., Marty, Joe (2017) Chinleite-(Y), NaY(SO4)2·H2O, a new rare-earth sulfate mineral structurally related to bassanite. Mineralogical Magazine, 81 (4) 909-916 doi:10.1180/minmag.2016.080.140 DOI: 10.1180/minmag.2016.080.140
