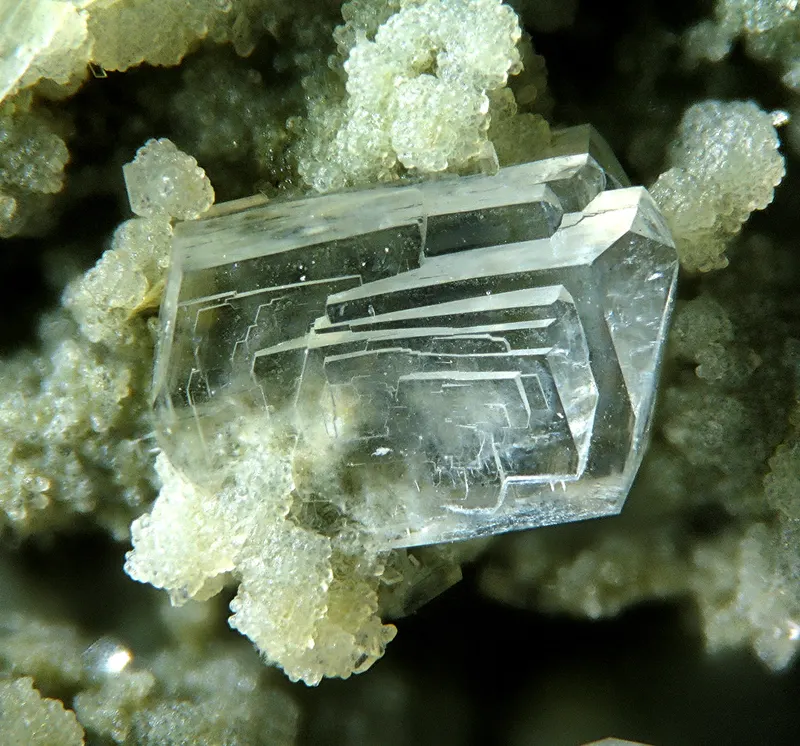

Clinoptilolite-Na

Na6(Si30Al6)O72 · 20H2O
IMA status
  • Approved
IMA symbol
Cpt-Na
Also known as
  • Clinoptiloliet-Na

Where it forms, where it's found

Type locality
Barstow Formation
  1. Rainbow Basin
  2. Mud Hills (Strontium Hills)
  3. Barstow Mining District
  4. San Bernardino County
  5. California
  6. USA

35.0194°, -117.0036°

26recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103.5 – 4/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous
Colour
Colorless to white · pale orange · pale grey-pink · pale brownish

Optical

Optical type
Biaxial (+/-) · 2V measured = 31 – 48° · 2V calc = 72°
Refractive index
1.476 – 1.497
Surface relief
Low
Principal indices
nα 1.476 – 1.491 · nβ 1.479 – 1.493 · nγ 1.479 – 1.497
Dispersion
r > v to r < v strong
Michel-Lévy diagramhighlighted lineδ = 0.0045
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]45 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation45 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
#11
Cell parameters
a = 17.627 Å · b = 17.955 Å · c = 7.399 Å
Cell angles
β = 116.29 °
Ratio a:b:c
1 : 1.019 : 0.420
Comment

space group C2/m, C2, or Cm

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen9215.9991471.908
55.45%
14SiSiliconSilicon3028.085842.550
31.74%
13AlAluminiumAluminium626.982161.892
6.10%
11NaSodiumSodium622.990137.940
5.19%
1HHydrogenHydrogen401.00840.320
1.52%
Total2654.610100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Clinoptiloliet-Na

In other languages

German
Klinoptilolith-Na
Italian
Clinoptilolite-Na

Classification

Strunz
10th ed.

9.GE.05

  • 9SilicatesClass
  • 9.GTektosilicates with zeolitic H2O; zeolite familyDivision
  • 9.GEChains of T10O20 TetrahedraGroup
  • 9.GE.05Clinoptilolite-NaSpecies

Group, growth & confusion

In the same group
2 members

Literature, links & citation

Citations
  1. 1972Alberti, A. (1972) On the crystal structure of the zeolite heulandite. TMPM Tschermaks Mineralogische und Petrographische Mitteilungen, 18 (2). 129-146 doi:10.1007/bf01081798DOI: 10.1007/bf01081798
  2. 1977Koyama, Kazutoshi, Takéuchi, Y. (1977) Clinoptilolite: the distribution of potassium atoms and its role in thermal stability. Zeitschrift für Kristallographie, 145 (3-4). 216-239 doi:10.1524/zkri.1977.145.3-4.216 DOI: 10.1524/zkri.1977.145.3-4.216
  3. 1993Armbruster, Thomas (1993) Dehydration mechanism of clinoptilolite and heulandite: Single-crystal X-ray study of Na-poor, Ca-, K-, Mg-rich clinoptilolite at 100 K. American Mineralogist, 78 (3-4) 260-264
  4. 1997Coombs, Douglas S., Alberti, Alberto, Armbruster, Thomas, Artioli, Gilberto, Colella, Carmine, Galli, Ermanno, Grice, Joel D., Liebau, Friedrich, Mandarino, Joseph A., Minato, Hideo, et al. (1997) Recommended nomenclature for zeolite minerals; report of the Subcommittee on Zeolites of the International Mineralogical Association, Commission on New Minerals and Mineral Names. The Canadian Mineralogist, 35 (6). 1571-1606
  5. 1998Esenli, Fahri, Kumbasar, Isik (1998) X-Ray Diffraction Intensity Ratios I(111)/I(3¯11) of Natural Heulandites and Clinoptilolites. Clays and Clay Minerals, 46 (6) 679-686 doi:10.1346/ccmn.1998.0460608DOI: 10.1346/ccmn.1998.0460608
