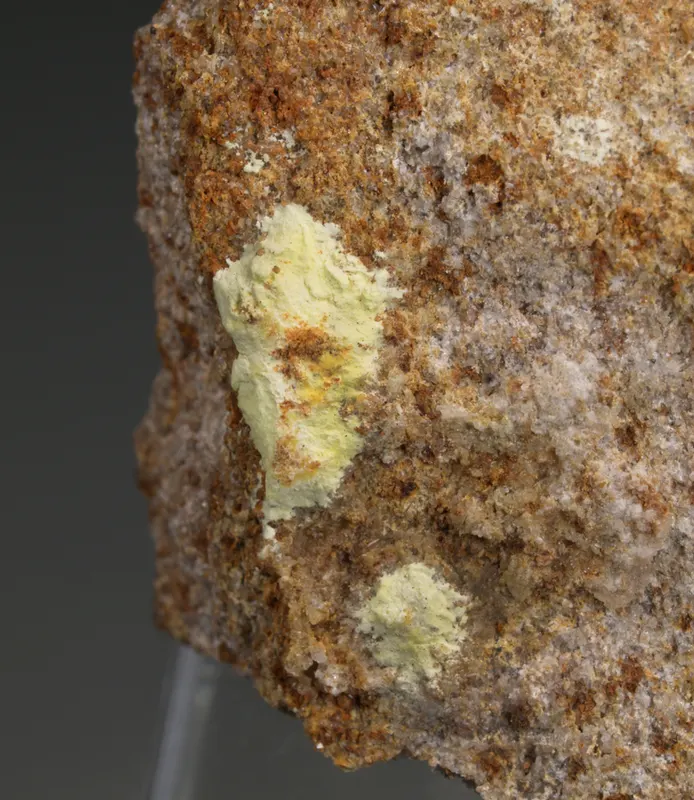

Coconinoite

Fe3+2Al2(UO2)2(PO4)4(SO4)(OH)2 · 20H2O
IMA status
  • Approved
IMA symbol
Coc
Discovered
1965
IMA approved
1965
Also known as
  • Coconinoiet
  • IMA1965-003

Where it forms, where it's found

Geological setting

In seams 1 mm or less thick, mostly along bedding planes of a light-colored, arkosic, fine-grained, poorly sorted & thinly bedded sandstone.

Type locality
Jomac Mine
  1. White Canyon Mining District
  2. San Juan County
  3. Utah
  4. USA

37.8619°, -110.3194°

8recorded occurrences
Source · OpenStreetMap

Radioactivity

Physical

Transparency
Translucent
Colour
Pale creamy yellow
Density
2.70 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 28 – 43° · 2V calc = 24°
Refractive index
1.55 – 1.59
Surface relief
Moderate
Principal indices
nα 1.550 · nβ 1.588 · nγ 1.590
Pleochroism
Visible

X= colorless Y=Z= pale yellow

Dispersion
r < v strong
Michel-Lévy diagramhighlighted lineδ = 0.0400
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]400 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation400 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Cell parameters
a = 12.45(6) Å · b = 12.96(3) Å · c = 17.22(5) Å
Cell angles
β = 105.7 °
Ratio a:b:c
1 : 1.041 : 1.383
Morphology

Lathlike to platy grains, microcrystalline aggregates, seams, crusts.

Comment

Tentative cell (from Belova et al., 1993); probable space group: C2/c or Cc.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen4615.999735.954
46.70%
92UUraniumUranium2238.029476.058
30.21%
15PPhosphorusPhosphorus430.974123.896
7.86%
26FeIronIron255.845111.690
7.09%
13AlAluminiumAluminium226.98253.964
3.42%
1HHydrogenHydrogen421.00842.336
2.69%
16SSulfurSulfur132.06032.060
2.03%
Total1575.958100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Fe
  • Cr

Synonyms

  • Coconinoiet
  • IMA1965-003

In other languages

French
coconinoïte
German
Coconinoit · IMA 1965-003
Italian
Coconinoite

Classification

Strunz
10th ed.

8.EB.35

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.EUranyl phosphates and arsenatesDivision
  • 8.EBUO2:RO4 = 1:1Group
  • 8.EB.35CoconinoiteSpecies
Dana
8th ed.

43.05.05.01

  • 43Compound Phosphates, Etc.Class
  • 43.05Hydrated Compound Phosphates, etc·, Containing Hydroxyl or HalogenType
  • 43.05.05— unnamed intermediate level —Group
  • 43.05.05.01CoconinoiteSpecies
CIM

22.3.20

  • 22Phosphates, Arsenates or Vanadates with other AnionsClass
  • 22.3Phosphates, arsenates or vanadates with sulphatesGroup
  • 22.3.20CoconinoiteSpecies

Literature, links & citation

Citations
  1. 1966Young, E. J., Weeks, A. D., Meyrowitz, Robert (1966) Coconinoite, a new uranium mineral from Utah and Arizona. American Mineralogist, 51 (5-6) 651-663
  2. 1969Fleischer, Michael (1969) New Mineral Names. American Mineralogist, 54 (1-2) 326-330
  3. 1993Belova, L. N.; Gorshkov, A. I.; Doinikova, O. A.; Mokhov, A. V.; Trubkin, N. V.; Sivtsov, A. V. (1993) New data on coconinoite. Doklady Akademii Nauk: 329: 772-775. (In Russian)
  4. 1995Jambor, J.L., Puziewicz, J., Roberts, A.C. (1995) New mineral names. American Mineralogist, 80 (3-4). 404-409
  5. 2006Doynikova, O. A., Siderenko, G. A. (2006) Coconinoite and related alumouranyl phosphates. New Data on Minerals, 41. 108-117
