Cornetite

Cu3(PO4)(OH)3
IMA status
  • Approved
  • Grandfathered
IMA symbol
Cne
Discovered
1916

Where it forms, where it's found

Geological setting

Oxidized zone of a hydrothermal copper deposit.

Type locality
L'Etoile du Congo Mine
  1. Lubumbashi
  2. Haut-Katanga
  3. DR Congo

-11.6344°, 27.5808°

36recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789104.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Dark blue to green-blue · green-blue in transmitted light.

May exhibit colour zoning in shades of green-blue.

Cleavage
None Observed
Density
4.10 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 33° · 2V calc = 48°
Refractive index
1.765 – 1.82
Surface relief
High
Principal indices
nα 1.765 · nβ 1.81 · nγ 1.82
Pleochroism
Non-pleochroic
Dispersion
none
Extinction
X = b; Y = a; Z = c.
Michel-Lévy diagramhighlighted lineδ = 0.0550
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]550 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation550 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Space group
#61
Cell parameters
a = 10.88 Å · b = 14.1 Å · c = 7.11 Å
Ratio a:b:c
1 : 1.296 : 0.653
Morphology

Crystals short prismatic [001] to equant. Face (210) commonly rounded. May also show large (021), (221). Crusts of minute crystals.

Twinning

Reported on {h0l}.

Type-locality form

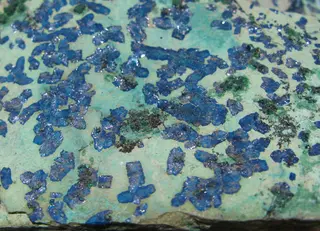

Blue crystals, either isolated or grouped, on sandstone. Square prisms with ocathedral terminations.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
29CuCopperCopper363.546190.638
56.63%
8OOxygenOxygen715.999111.993
33.27%
15PPhosphorusPhosphorus130.97430.974
9.20%
1HHydrogenHydrogen31.0083.024
0.90%
Total336.629100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Co

In other languages

French
Cornétite
German
Cornetit
Italian
Cornetite
Chinese
蓝磷铜矿
Russian
Корнетит

Classification

Strunz
10th ed.

8.BE.15

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.BPhosphates, etc., with additional anions, without H2ODivision
  • 8.BEWith only medium-sized cations, (OH, etc.):RO4 > 2:1Group
  • 8.BE.15CornetiteSpecies
Dana
8th ed.

41.03.02.01

  • 41Anhydrous Phosphates, Etc.containing Hydroxyl or HalogenClass
  • 41.03(AB)3(XO4)ZqType
  • 41.03.02— unnamed intermediate level —Group
  • 41.03.02.01CornetiteSpecies
CIM

19.2.2

  • 19PhosphatesClass
  • 19.2Phosphates of CuGroup
  • 19.2.2CornetiteSpecies

Literature, links & citation

Citations
  1. 1912Cesàro, G. (1912) Sur un nouveau minéral du Katanga. Annales de la Société Géologique de Belgique, 39, B241-B242.
  2. 1913Hutchinson, A., Macgregor, A.M. (1913) A crystalline basic copper phosphate from Rhodesia. Nature: 92: 364.
  3. 1916Buttgenbach, H. (1916) Cornètite. in Les Minéraux et les Roches, Liège: 452-453.
  4. 1920Gordon, S.G., Wherry, E.T. (1920) New minerals. American Mineralogist: 5: 15-18 (17).
  5. 1921Hutchinson, A., MacGregor, A. M. (1921) On Cornetite from Bwana Mkubwa, Northern Rhodesia. Mineralogical Magazine and Journal of the Mineralogical Society, 19 (95). 225-232 doi:10.1180/minmag.1921.019.95.01DOI: 10.1180/minmag.1921.019.95.01
