Crednerite

CuMnO2
IMA status
  • Approved
  • Grandfathered
IMA symbol
Cnr
Discovered
1847
Also known as
  • Copper-manganese
  • Credneriet
  • Kupferhaltige manganerz
  • +8 more

Where it forms, where it's found

Geological setting

low-temperature secondary mineral

Type locality
Glücksstern Mine
  1. Gottlob Hill
  2. Friedrichroda
  3. Gotha District
  4. Thuringia
  5. Germany

50.8518°, 10.5695°

41recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789104/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Opaque
Colour
Bright gray to iron black
Streak
Brownish-black
Tenacity
brittle
Cleavage
Perfect

In the plane of the plate; along the striae and inclined about 76° to the plate - less perfect. perfect (001); also (100), perfect, (111), prominent, (111) and (212), poor.

Density
4.98 g/cm³

Optical

Optical colour
cream white
Anisotropism
strong
Bireflectance
Strong; pale yellow to brownish gray
Tropism
Anisotropic
Reflectance R%
(28.3,28.6) 400, (27.4,30.1) 420, (26.5,31.6) 440, (25.8,32.9) 460, (25.1,33.7) 480, (24.5,34.0) 500, (24.1,34.3) 520, (23.8,34.2) 540, (23.5,34.1) 560, (23.3,33.7) 580, (23.1,33.1) 600, (22.9,32.6) 620, (22.7,32.0) 640, (22.5,31.2) 660, (22.4,30.5) 680, (22.2,29.9) 700
UV response
None
Reflected-light panel
24.3 %anisotropic · dual curve
Specimen sRGB 175, 124, 72
White reference100 % reflector under same lamp
R₁ R₂
Mode
Bireflectance
Strong; pale yellow to brownish gray
Anisotropism
strong
Reflected colour
cream white

Crystallography

Crystal system
Monoclinic
Space group
C1 2/m 1
Cell parameters
a = 5.58 Å · b = 2.87 Å · c = 5.87 Å
Cell angles
β = 104 °
Ratio a:b:c
1 : 0.514 : 1.052
Z
2
Morphology

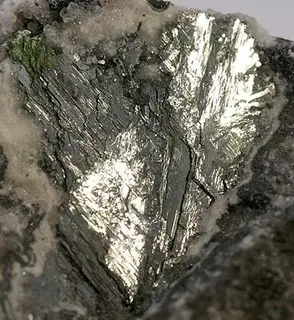

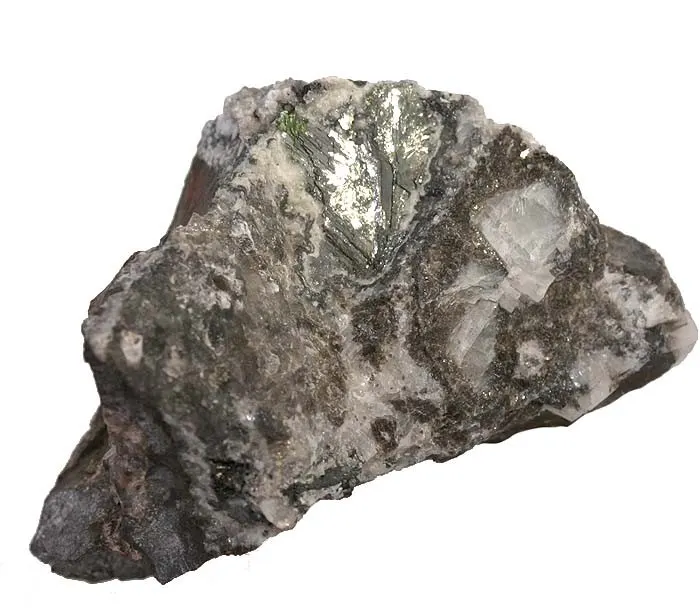

Occurs in thin six-sided plates; radiating, hemispherical or spherulitic aggregates. Earthy coatings.

Twinning

Three-fold set of striae intersecting on the plate at about 60° may represent twin lamellae. Polysynthetic twinning noted in polished sections at times.

Comment

on synthetic material

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
29CuCopperCopper163.54663.546
42.23%
25MnManganeseManganese154.93854.938
36.51%
8OOxygenOxygen215.99931.998
21.26%
Total150.482100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Copper-manganese
  • Credneriet
  • Kupferhaltige manganerz
  • Kupferhaltiges manganerz
  • Kupfermangan
  • Kupfermanganerz
  • Kupfermanganschwärze
  • Lepidophäit
  • Lepidophäite
  • Mangankupfererz
  • Mangankupferoxyd

In other languages

German
Crednerit
Spanish
Crednerita
Italian
Crednerite
Chinese
锰铜矿

Classification

Strunz
10th ed.

4.AB.05

  • 4OxidesClass
  • 4.AMetal: Oxygen = 2:1 and 1:1Division
  • 4.ABM:O = 1:1 (and up to 1:1.25); with small to medium-sized cations onlyGroup
  • 4.AB.05CredneriteSpecies
Dana
8th ed.

07.01.02.01

  • 07Multiple OxidesClass
  • 07.01ABX2Type
  • 07.01.02— unnamed intermediate level —Group
  • 07.01.02.01CredneriteSpecies
CIM

7.3.5

  • 7Oxides and HydroxidesClass
  • 7.3Oxides of CuGroup
  • 7.3.5CredneriteSpecies

Group, growth & confusion

Often grow together
1 mineral

Literature, links & citation

Citations
  1. 1847Credner, C.F.H. (1847) Uber das Vorkommen von vanadinsaurem Kupfer-Oxyd und Kupfer-Manganerz bei Friedrichrode im Thuringer Wald. Neues Jahrbuch für Mineralogie, Geognosie, Geologie und Petrefaktenkunde: 1-7. (as Kupferhaltige Manganerz).
  2. 1847Hausmann (1847) 1582 (as Mangankupferoxyd).
  3. 1847Credner, C.F.H. (1847) Uber das Vorkommen von vanadinsaurem Kupfer-Oxyd und Kupfer-Manganerz bei Friedrichrode im Thuringer Wald. Neues Jahrbuch für Mineralogie, Geognosie, Geologie und Petrefaktenkunde: 1-7.
  4. 1848Rammelsberg, C. (1848) Ueber das Mangankupfererz von Friedrichsrode, Zusatz zu der vorhergehenden Abhandlung. Poggendorffs Annalen der Physik und Chemie, 150. 559-562 doi:10.1002/andp.18481500808DOI: 10.1002/andp.18481500808
  5. 1923Spencer, L. J. (1923) New lead-copper minerals from the Mendip Hills (Somerset) Mineralogical Magazine and Journal of the Mineralogical Society, 20 (102) 67-92 doi:10.1180/minmag.1923.020.102.01 DOI: 10.1180/minmag.1923.020.102.01
