Dickthomssenite

MgV2O6 · 7H2O
IMA status
  • Approved
IMA symbol
Dth
IMA approved
2000
Also known as
  • Dickthomsseniet
  • IMA2000-047

Where it forms, where it's found

Geological setting

Coating on sandstone.

Type locality
Firefly–Pigmay Mine
  1. La Sal Creek Mining District
  2. San Juan County
  3. Utah
  4. USA

38.3319°, -109.0987°

8recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789102.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Light golden brown
Streak
White
Tenacity
brittle
Cleavage
Perfect

(100)

Fracture
Hackly
Density
1.96 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 74° · 2V calc = 73°
Refractive index
1.6124 – 1.7104
Surface relief
High
Principal indices
nα 1.6124 · nβ 1.674 · nγ 1.7104
Pleochroism
Non-pleochroic
Dispersion
r < v
Extinction
Z = b; Y ∧ c = 17°.
UV response
Not fluorescent.
Michel-Lévy diagramhighlighted lineδ = 0.0980
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]980 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation980 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
#10
Cell parameters
a = 38.954 Å · b = 7.201 Å · c = 16.3465 Å
Cell angles
β = 97.602 °
Ratio a:b:c
1 : 0.185 : 0.420
Unit cell volume
4544 ų
Z
16
Twinning

None mentioned

Type-locality form

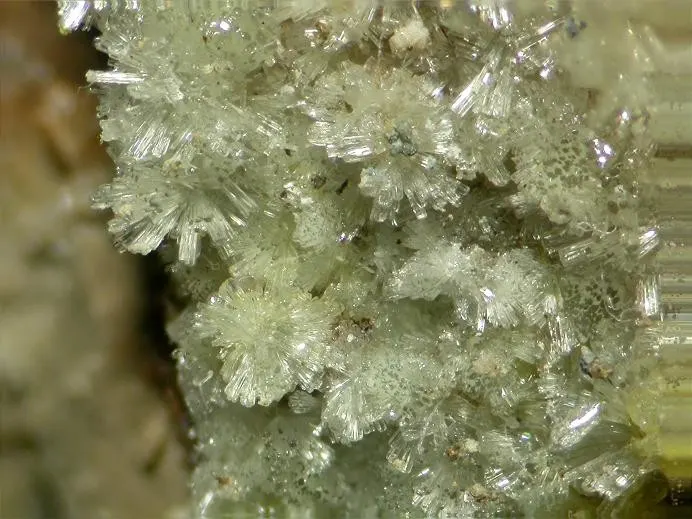

Crystals ranging from 0.25-mm needle-like to 0.5 x 1.5 mm platy, prismatic crystals with basal terminations. The crystals occur in fibroradial groups to a length of 5 mm, creating solid coverage to 1.5 x 2.5 cm.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1315.999207.987
59.72%
23VVanadiumVanadium250.942101.884
29.25%
12MgMagnesiumMagnesium124.30524.305
6.98%
1HHydrogenHydrogen141.00814.112
4.05%
Total348.288100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Dickthomsseniet
  • IMA2000-047

In other languages

German
Dickthomssenit · IMA 2000-047
Italian
Dickthomssenite

Classification

Strunz
10th ed.

4.HD.25

  • 4OxidesClass
  • 4.HV[5,6] VanadatesDivision
  • 4.HDInovanadatesGroup
  • 4.HD.25DickthomsseniteSpecies

Literature, links & citation

Citations
  1. 2001Hughes, J. M., Cureton, F. E., Marty, J., Gault, R. A., Gunter, M. E., Campana, C. F., Rakovan, J., Sommer, A., Brueseke, M. E. (2001) Dickthomssenite, Mg(V2O6)·7H2O, a new mineral species from the Firefly-Pigmay Mine, Utah: descriptive mineralogy and arrangement of atoms. The Canadian Mineralogist, 39 (6) 1691-1700 doi:10.2113/gscanmin.39.6.1691 DOI: 10.2113/gscanmin.39.6.1691
  2. 2005(2005) Dickthomssenite. Handbook of Mineralogy. Mineralogical Society of America
