Dollaseite-(Ce)

CaCe(Mg2Al)[Si2O7][SiO4]F(OH)
IMA status
  • Approved
  • Grandfathered
IMA symbol
Dls-Ce
Also known as
  • Dollaseiet-(Ce)
  • Magnesium Orthite

Where it forms, where it's found

Type locality
Östanmossa mine
  1. Röberg ore field
  2. Norberg
  3. Västmanland County
  4. Sweden

60.0833°, 15.9333°

13recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789106.5 – 7/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Colour
Brown

In thin sections, very light brown with a pinkish tinge.

Density
3.90 g/cm³

Optical

Optical type
Biaxial
Refractive index
1.715 – 1.733
Surface relief
High
Principal indices
nα 1.715 · nβ 1.718 · nγ 1.733
Pleochroism
Weak
Dispersion
r > v
Notes

Displays abnormal bluish interference colors.

Michel-Lévy diagramhighlighted lineδ = 0.0180
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]180 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation180 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
#15
Cell parameters
a = 8.934(18) Å · b = 5.721(7) Å · c = 10.176(22) Å
Cell angles
β = 114.31(12) °
Ratio a:b:c
1 : 0.640 : 1.139
Z
2
Morphology

Massive. Subhedral crystals, often in contact with carbonate. Also radiating, aggregates of lath-like crystals that are simple twinned crystals. The laths may be extremely thin, even at high magnification, such that the aggregate is a fibrous felt.

Twinning

Can be twinned.

Type-locality form

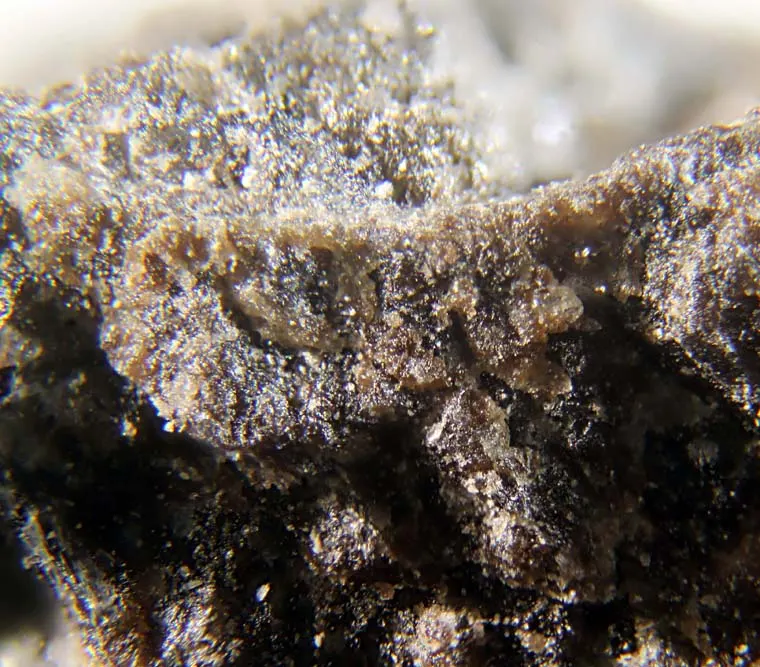

Brown, massive to subhedral 0.3-mm diameter crystals.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1215.999191.988
34.78%
58CeCeriumCerium1140.116140.116
25.38%
14SiSiliconSilicon328.08584.255
15.26%
12MgMagnesiumMagnesium224.30548.610
8.81%
20CaCalciumCalcium140.07840.078
7.26%
13AlAluminiumAluminium126.98226.982
4.89%
9FFluorineFluorine118.99818.998
3.44%
1HHydrogenHydrogen11.0081.008
0.18%
Total552.035100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Dollaseiet-(Ce)
  • Magnesium Orthite

In other languages

French
dollaseite-(Ce)
German
Dollaseit-(Ce) · IMA 87-K
Spanish
dollaseite-(Ce)
Italian
Dollaseite- · dollaseite-(Ce)
Japanese
ドレイス石
Chinese
鈰簾石 · 铈镁帘石

Classification

Strunz
10th ed.

9.BG.05

  • 9SilicatesClass
  • 9.BSorosilicatesDivision
  • 9.BGSorosilicates with mixed SiO4 and Si2O7 groups; cations in octahedral [6] and greater coordinationGroup
  • 9.BG.05Dollaseite-(Ce)Species
Dana
8th ed.

58.02.1a.06

  • 58Sorosilicates Insular, Mixed, Single, and Larger Tetrahedral GroupsClass
  • 58.02Insular, Mixed, Single, and Larger Tetrahedral Groups with cations in [6] and higher coordination; single and double groups (n = 1, 2)Type
  • 58.02.1a— unnamed intermediate level —Group
  • 58.02.1a.06Dollaseite-(Ce)Species
CIM

16.13.6

  • 16Silicates Containing Aluminum and other MetalsClass
  • 16.13Aluminosilicates of the rare earthsGroup
  • 16.13.6Dollaseite-(Ce)Species

Group, growth & confusion

In the same group
1 members

Literature, links & citation

Citations
  1. 1927Geijer, P. (1927) Some mineral associations from the Norberg District. Avhandlingar och uppsatser. Serie C Vol. 20 (4). Sveriges Geologiska Undersökning 32 pp.
  2. 1988Peacor, Donald R., Dunn, Pete J. (1988) Dollaseite-(Ce) (magnesium orthite redefined): Structure refinement and implications for F + M2+ substitutions in epidote-group minerals. American Mineralogist, 73 (7-8) 838-842
  3. 2001(2001) Dollaseite-(Ce). Handbook of Mineralogy. Mineralogical Society of America
  4. 2006Armbruster, Thomas, Bonazzi, Paola, Akasaka, Masahide, Bermanec, Vladimir, Chopin, Christian, Gieré, Reto, Heuss-Assbichler, Soraya, Liebscher, Axel, Menchetti, Silvio, Pan, Yuanming, Pasero, Marco (2006) Recommended nomenclature of epidote-group minerals. European Journal of Mineralogy, 18 (5) 551-567 doi:10.1127/0935-1221/2006/0018-0551DOI: 10.1127/0935-1221/2006/0018-0551
  5. 2007Holtstam, D., Andersson, U. B. (2007) The REE minerals of the Bastnäs-type deposits, South-Central Sweden. The Canadian Mineralogist, 45 (5) 1073-1114 doi:10.2113/gscanmin.45.5.1073DOI: 10.2113/gscanmin.45.5.1073
