Doloresite

V4+3O4(OH)4
IMA status
  • Approved
  • Grandfathered
IMA symbol
Dlr
Discovered
1957
Also known as
  • Doloresiet

Where it forms, where it's found

Geological setting

Unoxidized vanadium-uranium ores in sandstone. Secondary replacement of primary montroseite.

Type locality
La Sal No. 2 Mine
  1. Beaver Mesa
  2. Gateway Mining District
  3. Mesa County
  4. Colorado
  5. USA

38.6510°, -109.0521°

24recorded occurrences
Source · OpenStreetMap

Physical

Transparency
Translucent · Opaque

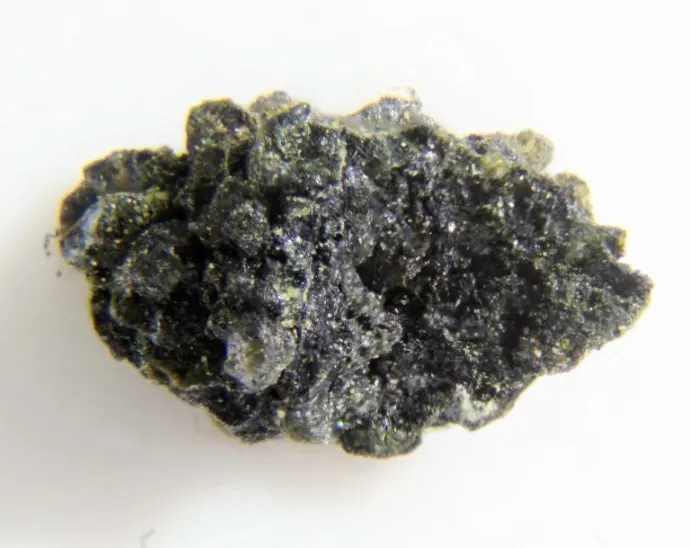

Colour
Nearly black with dark bronzy tarnish. Very fine fragments under oil immersion are reddish brown to yellow red in transmitted light.
Streak
Greenish black
Cleavage
Distinct/Good

Flaky

Fracture
Fibrous
Density
3.27 g/cm³

Optical

Optical type
Biaxial
Surface relief
Very high
Principal indices
n 1.90
Optical colour
Gray, variable along the elongation of the crystals, and shows selective absorption in plane polarized light
Anisotropism
Strong
Tropism
Anisotropic

Crystallography

Crystal system
Monoclinic
Space group
C2/m
Cell parameters
a = 19.64(6) Å · b = 2.99(1) Å · c = 4.83(2) Å
Cell angles
β = 103.91 °
Ratio a:b:c
1 : 0.152 : 0.246
Z
5
Twinning

Lamellar submicroscopic twinning.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
23VVanadiumVanadium350.942152.826
53.65%
8OOxygenOxygen815.999127.992
44.93%
1HHydrogenHydrogen41.0084.032
1.42%
Total284.850100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Doloresiet

In other languages

German
Doloresit
Italian
Doloresite

Classification

Strunz
10th ed.

4.HE.30

  • 4OxidesClass
  • 4.HV[5,6] VanadatesDivision
  • 4.HEPhyllovanadatesGroup
  • 4.HE.30DoloresiteSpecies
Dana
8th ed.

47.04.07.01

  • 47Vanadium OxysaltsClass
  • 47.04Vanadium BronzesType
  • 47.04.07— unnamed intermediate level —Group
  • 47.04.07.01DoloresiteSpecies
CIM

7.12.6

  • 7Oxides and HydroxidesClass
  • 7.12Oxides of V, Nb and TaGroup
  • 7.12.6DoloresiteSpecies

Literature, links & citation

Citations
  1. 1957Stern, T. W., Stief, L. R., Evans, H. T., Sherwood, A. M. (1957) Doloresite, a new vanadium oxide mineral from the Colorado plateau. American Mineralogist, 42 (9-10) 587-593
  2. 1958Evans, H. T., Mrose, M. E. (1958) The crystal structures of three new vanadium oxide minerals. Acta Crystallographica, 11 (1) 56-58 doi:10.1107/s0365110x58000141DOI: 10.1107/s0365110x58000141
  3. 1960Evans, H. T., Mrose, M. E. (1960) A crystal chemical study of the vanadium oxide minerals, haeggite and doloresite. American Mineralogist, 45 (11-12) 1144-1166
  4. 1975Théobald, F. (1975) Synthèse de la dolorésite. Bulletin de la Société Française de Minéralogie: 98: 193–194 (in French).
  5. 2005(2005) Doloresite. Handbook of Mineralogy. Mineralogical Society of America
