Dongchuanite

Pb4ZnZn2(PO4)4(OH)2
IMA status
  • Approved
IMA symbol
Dc
Also known as
  • Dongchuaniet
  • IMA2021-058

Where it forms, where it's found

Geological setting

Oxidation zone of layered super-large sediment-hosted stratiform copper deposits.

Type locality
Dongchuan Cu Mine
  1. Sanguozhuang
  2. Shizhuang Village
  3. Tangdan Town
  4. Dongchuan District
  5. Kunming
  6. Yunnan
  7. China

26.1267°, 103.0053°

2recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789102 – 2.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Turquoise–greenish blue · pale blue to light blue in transmitted light

Green-blue colours due to minor amounts of Cu.

Streak
colourless
Tenacity
brittle
Cleavage
Distinct/Good

on (011)

fracture: even

Density
6.06 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 70°
Surface relief
Very high
Principal indices
n 1.9
Birefringence
δ<sub>max</sub> = 0.010
Pleochroism
Weak

very weak

Dispersion
very weak, r<v
UV response
none
Michel-Lévy diagramhighlighted lineδ = 0.0100
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]100 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation100 nm
Order1st order
XPL colour

Crystallography

Crystal system
Triclinic
Space group
#2
Cell parameters
a = 4.762(1) Å · b = 8.507(2) Å · c = 10.364(2) Å
Cell angles
α = 97.11(2) ° · β = 101.46(2) ° · γ = 92.27(2) °
Ratio a:b:c
1 : 1.786 : 2.176
Z
1
Parting
insignificant
Type-locality form

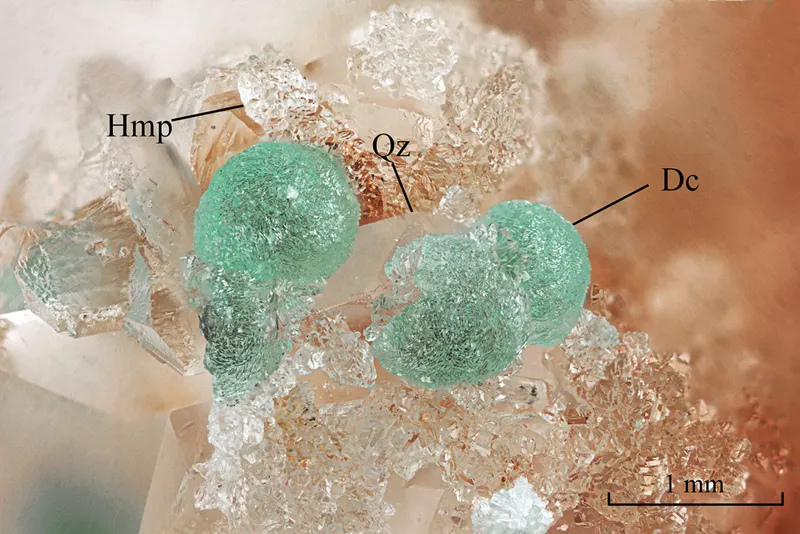

Spherical aggregates of microscopic, lamellar crystals

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
82PbLeadLead4207.200828.800
57.60%
8OOxygenOxygen1815.999287.982
20.02%
30ZnZincZinc365.380196.140
13.63%
15PPhosphorusPhosphorus430.974123.896
8.61%
1HHydrogenHydrogen21.0082.016
0.14%
Total1438.834100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Dongchuaniet
  • IMA2021-058

In other languages

German
Dongchuanit · IMA 2021-058

Classification

Strunz
10th ed.

8.BG

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.BPhosphates, etc., with additional anions, without H2ODivision
  • 8.BGWith medium-sized and large cations, (OH, etc.):RO4 = 0.5:1Group
  • 8.BGDongchuaniteSpecies

Group, growth & confusion

In the same group
3 members
Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 2021Miyawaki, Ritsuro, Hatert, Frédéric, Pasero, Marco, Mills, Stuart J. (2021) IMA Commission on New Minerals, Nomenclature and Classification (CNMNC) CNMNC Newsletter No 63. Mineralogical Magazine, 85 (6) 910-915 doi:10.1180/mgm.2021.74 DOI: 10.1180/mgm.2021.74
  2. 2022(2022) Dongchuanite. Handbook of Mineralogy. Mineralogical Society of America
  3. 2023Li, Guowu, Sun, Ningyue, Shen, Hongtao, Xue, Yuan, Hao, Jinhua, Fourestier, Jeffrey (2023) Dongchuanite, a new phosphate mineral with a new structure, from Dongchuan copper mine, Yunnan Province, China. Mineralogical Magazine, 87 (4) 611-618
