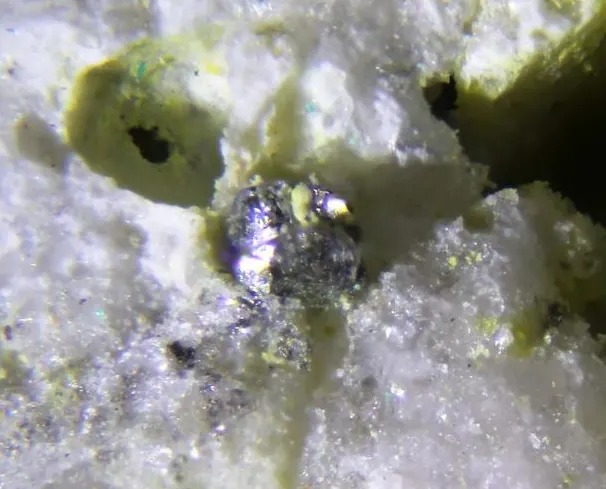

Drugmanite

Pb2Fe3+(PO4)(PO3OH)(OH)2
IMA status
  • Approved
IMA symbol
Dru
Discovered
1979
Also known as
  • Drugmaniet
  • IMA1978-081

Where it forms, where it's found

Geological setting

Weathering zone of a karst base metal deposit

Type locality
Richelle
  1. Visé
  2. Liège
  3. Wallonia
  4. Belgium

50.7171°, 5.6952°

6recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789105 – 6/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Adamantine
Colour
Pale yellow
Streak
white
Cleavage
None Observed

Optical

Optical type
Biaxial (-) · 2V measured = 33°
Refractive index
1.87
Surface relief
Very high
Principal indices
nβ 1.87
Dispersion
relatively strong
UV response
None

Crystallography

Crystal system
Monoclinic
Space group
P21/a
Cell parameters
a = 11.1 Å · b = 7.97 Å · c = 4.64 Å
Cell angles
β = 90.6 °
Ratio a:b:c
1 : 0.718 : 0.418
Morphology

Rhombs

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
82PbLeadLead2207.200414.400
59.61%
8OOxygenOxygen1015.999159.990
23.01%
15PPhosphorusPhosphorus230.97461.948
8.91%
26FeIronIron155.84555.845
8.03%
1HHydrogenHydrogen31.0083.024
0.44%
Total695.207100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Al

Synonyms

  • Drugmaniet
  • IMA1978-081

In other languages

German
Drugmanit · IMA 1978-081
Italian
Drugmanite
Chinese
水磷铁铅石

Classification

Strunz
10th ed.

8.BH.15

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.BPhosphates, etc., with additional anions, without H2ODivision
  • 8.BHWith medium-sized and large cations, (OH,etc.):RO4 = 1:1Group
  • 8.BH.15DrugmaniteSpecies
Dana
8th ed.

41.10.11.01

  • 41Anhydrous Phosphates, Etc.containing Hydroxyl or HalogenClass
  • 41.10(AB)3(XO4)2ZqType
  • 41.10.11— unnamed intermediate level —Group
  • 41.10.11.01DrugmaniteSpecies
CIM

19.10.5

  • 19PhosphatesClass
  • 19.10Phosphates of Pb, Th, V and BiGroup
  • 19.10.5DrugmaniteSpecies

Literature, links & citation

Citations
  1. Van Der Meersche, Eddy, De Paepe, Paul, Stoops, Georges (n.d.) Minerals with Belgian Roots - from hopeite (1824) to tazieffite (2009) Academia Press, Ghent.
  2. 1979Van Tassel, R., Fransolet, A.-M., Abraham, K. (1979) Drugmanite, Pb2(Fe3+,Al) (PO4)2(OH) · H2O, a new mineral from Richelle, Belgium. Mineralogical Magazine, 43 (328) 463-467 doi:10.1180/minmag.1979.043.328.03 DOI: 10.1180/minmag.1979.043.328.03
  3. 1980Fleischer, M. et al. (1980) New Mineral names. American Mineralogist, 65, 808-814.
  4. 1988King, Geoffrey S.D., Sengier-Roberts, Lieve (1988) Drugmanite, Pb2(Fe0.78Al0.22)H(PO4)2(OH)2 : its crystal structure and place in the datolite group. Bulletin de Minéralogie, 111 (5). 431-437 doi:10.3406/bulmi.1988.8089DOI: 10.3406/bulmi.1988.8089
  5. 1989Jambor, John L., Vanko, David A. (1989) New mineral names. American Mineralogist, 74 (7-8) 946-951
