Eakerite

Ca2Sn4+Al2Si6O18(OH)2 · 2H2O
IMA status
  • Approved
IMA symbol
Ea
Discovered
1966
IMA approved
1969
Also known as
  • Eakeriet
  • IMA1969-019

Where it forms, where it's found

Geological setting

Spodumene-rich pegmatite.

Type locality
Foote Lithium Co. Mine
  1. Kings Mountain
  2. Cleveland County
  3. North Carolina
  4. USA

35.2111°, -81.3556°

3recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Colourless · white
Cleavage
None Observed
Fracture
Conchoidal
Density
2.93 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 35° · 2V calc = 42°
Refractive index
1.584 – 1.6
Surface relief
Moderate
Principal indices
nα 1.584 · nβ 1.586 · nγ 1.600
Dispersion
small
Michel-Lévy diagramhighlighted lineδ = 0.0160
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]160 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation160 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
P21/a
Cell parameters
a = 15.83 Å · b = 7.72 Å · c = 7.44 Å
Cell angles
β = 101.31 °
Ratio a:b:c
1 : 0.488 : 0.470
Z
2
Morphology

Prismatic crystals. Forms, in order of abundance (type material) are: (111), (210), (410), (201), {_20l}, (001), and {100.}

Parting
None observed
Type-locality form

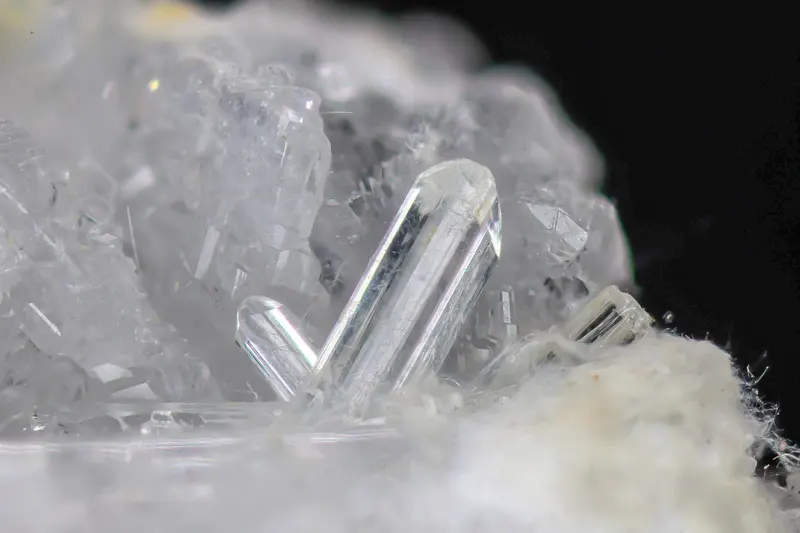

Transparent prismatic crystals

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen2215.999351.978
45.16%
14SiSiliconSilicon628.085168.510
21.62%
50SnTinTin1118.710118.710
15.23%
20CaCalciumCalcium240.07880.156
10.29%
13AlAluminiumAluminium226.98253.964
6.92%
1HHydrogenHydrogen61.0086.048
0.78%
Total779.366100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Eakeriet
  • IMA1969-019

In other languages

German
Eakerit · IMA 1969-019
Italian
eakerite
Chinese
硅铝锡钙石

Classification

Strunz
10th ed.

9.CG.05

  • 9SilicatesClass
  • 9.CCyclosilicatesDivision
  • 9.CG[Si4O12]8- branched 4-membered single ringsGroup
  • 9.CG.05EakeriteSpecies
Dana
8th ed.

72.01.05.01

  • 72Phyllosilicates Two-dimensional Infinite Sheets with Other Than Six-membered RingsClass
  • 72.01Two-Dimensional Infinite Sheets with Other Than Six-Membered Rings with 4-membered ringsType
  • 72.01.05— unnamed intermediate level —Group
  • 72.01.05.01EakeriteSpecies
CIM

16.14.12

  • 16Silicates Containing Aluminum and other MetalsClass
  • 16.14Aluminosilicates of Ti, Zr, Sn and PbGroup
  • 16.14.12EakeriteSpecies

Literature, links & citation

Citations
  1. 1970Leavens, Peter B., White, John Sampson, Hey, Max H. (1970) Eakerite-- a New Tin Silicate. The Mineralogical Record, 1 (3) Tucson. 92-96
  2. 1971Fleischer, Michael (1971) New Mineral Names. American Mineralogist, 56 (3-4) 631-640
  3. 1976Kossiakoff, Anthony A., Leavens, Peter B. (1976) The crystal structure of eakerite, a calcium-tin silicate. American Mineralogist, 61 (9-10) 956-962
  4. 1982Gaydukova, V.S., Grigor'yev, I.M., Dubinchuk, V.T., Il'yasov, A.M., Kuz'min, V.I., Sidorenko, G.A. (1982) Exsolution of stanniferous garnets. Doklady Akademii Nauk SSSR: 250: 151-153. (in Russian)
  5. 2001(2001) Eakerite. Handbook of Mineralogy. Mineralogical Society of America
