Eclarite

(Cu,Fe)Pb9Bi12S28
IMA status
  • Approved
IMA symbol
Ecl
Discovered
1982
IMA approved
1982
Also known as
  • Echlarit
  • Echlarita
  • Echlarite
  • +2 more

Where it forms, where it's found

Geological setting

Gold bearing sulfide copper ores in quartz veins.

Type locality
Bärenbad Mine
  1. Scharnbachgraben
  2. Hollersbach im Pinzgau
  3. Zell am See District
  4. Salzburg
  5. Austria

47.2478°, 12.4017°

16recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789102.5 – 3.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Metallic
Transparency
Opaque
Colour
Whitish-grey
Streak
Lead grey
Cleavage
Distinct/Good

Distinct on (010) poor on {0kl}

Density
6.75 g/cm³

Optical

Pleochroism
Visible
Optical colour
Whitish gray; oil - bluish gray
Anisotropism
Distinct in air, strong in oil
Tropism
Anisotropic
Reflectance R%
(45.2,51.2) 480, (42.9,47.2) 546, (42.0,46.1) 589, (40.2,45.0) 644
Reflected-light panel
42.6 %anisotropic · dual curve
Specimen sRGB 227, 163, 94
White reference100 % reflector under same lamp
R₁ R₂
Mode
Anisotropism
Distinct in air, strong in oil
Reflected colour
Whitish gray; oil - bluish gray

Crystallography

Crystal system
Orthorhombic
Space group
Pnma
Cell parameters
a = 54.76(4) Å · b = 4.030(3) Å · c = 22.75(3) Å
Ratio a:b:c
1 : 0.074 : 0.415
Z
4
Morphology

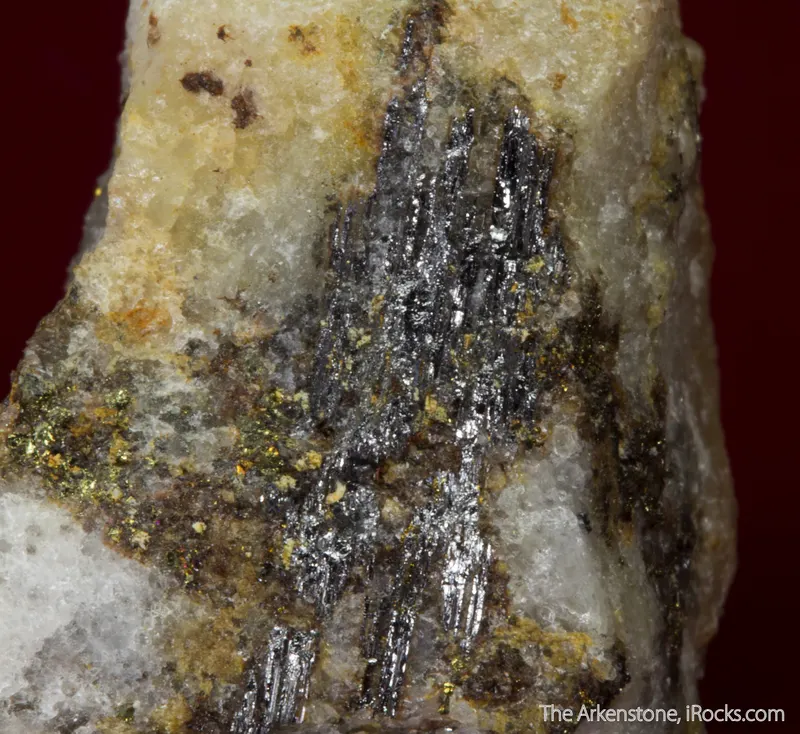

Fan shaped aggregates of acicular crystals, prismatic; granular.

Type-locality form

Fan-shaped aggregates of needle-like crystals up to 1.5 cm long, or as granular fracture-fillings in pyrite and arsenopyrite.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
83BiBismuthBismuth12208.9802507.760
46.53%
82PbLeadLead9207.2001864.800
34.60%
16SSulfurSulfur2832.060897.680
16.65%
29CuCopperCopper163.54663.546
1.18%
26FeIronIron155.84555.845
1.04%
Total5389.631100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Ag
  • Sb

Synonyms

  • Echlarit
  • Echlarita
  • Echlarite
  • Eclariet
  • IMA1982-092

In other languages

German
Eclarit · IMA 1982-092
Italian
Eclarite
Chinese
艾铋铜铅矿

Classification

Strunz
10th ed.

2.HB.10c

  • 2Sulfides and SulfosaltsClass
  • 2.HSulfosalts of SnS archetypeDivision
  • 2.HBWith Cu, Ag, Fe, Sn and PbGroup
  • 2.HB.10cEclariteSpecies
Dana
8th ed.

03.06.10.01

  • 03SulfosaltsClass
  • 03.062 < ø < 2.49Type
  • 03.06.10— unnamed intermediate level —Group
  • 03.06.10.01EclariteSpecies
CIM

5.7.19

  • 5Sulphosalts - Sulpharsenites and Sulphobismuthites (those containing Sn, Ge,or V are in Section 6)Class
  • 5.7Sulpharsenites etc. of Pb and other metalsGroup
  • 5.7.19EclariteSpecies

Literature, links & citation

Citations
  1. 1983Paar, W. H., Chen, T. T., Kupcik, V., Hanke, U., Paar, W. H., Chen, T. T., Kupcik, V., Hanke, U. (1983) Eclarit, (Cu,Fe)Pb9Bi12S28, ein neues Sulfosalz von Bärenbad, Hollersbachtal, Salzburg, Österreich. TMPM Tschermaks Mineralogische und Petrographische Mitteilungen, 32 (2). 103-110 doi:10.1007/bf01081104DOI: 10.1007/bf01081104
  2. 1984Kupčik, V. (1984) Die Kristallstruktur des Minerals Eclarit, (Cu,Fe)Pb9Bi12S28. TMPM Tschermaks Mineralogische und Petrographische Mitteilungen, 32 (4). 259-269 doi:10.1007/bf01081617DOI: 10.1007/bf01081617
  3. 1985Dunn, Pete J., Chao, George Y., Fleischer, Michael, Ferraiolo, James A., Langley, Richard H., Pabst, Adolf, Zilczer, Janet A. (1985) New mineral names. American Mineralogist, 70 (1-2) 214-221
  4. 2005(2005) Eclarite. Handbook of Mineralogy. Mineralogical Society of America
  5. 2008Pršek, Jaroslav, Ozdín, Daniel, Sejkora, Jiří (2008) Eclarite and associated Bi sulfosalts from the Brezno-Hviezda occurrence (Nízke Tatry Mts, Slovak Republic) Neues Jahrbuch für Mineralogie - Abhandlungen, 185 (2) 117-130 doi:10.1127/0077-7757/2008/0112DOI: 10.1127/0077-7757/2008/0112
