Edgarbaileyite

Hg1+6Si2O7
IMA status
  • Approved
IMA symbol
Ebl
Discovered
1963
Also known as
  • Edgarbaileyiet
  • IMA1988-028

Where it forms, where it's found

Type locality
Clear Creek claim
  1. Goat Mountain
  2. San Benito County
  3. California
  4. USA

36.3842°, -120.7367°

8recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789104/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous · Resinous
Transparency
Translucent · Opaque

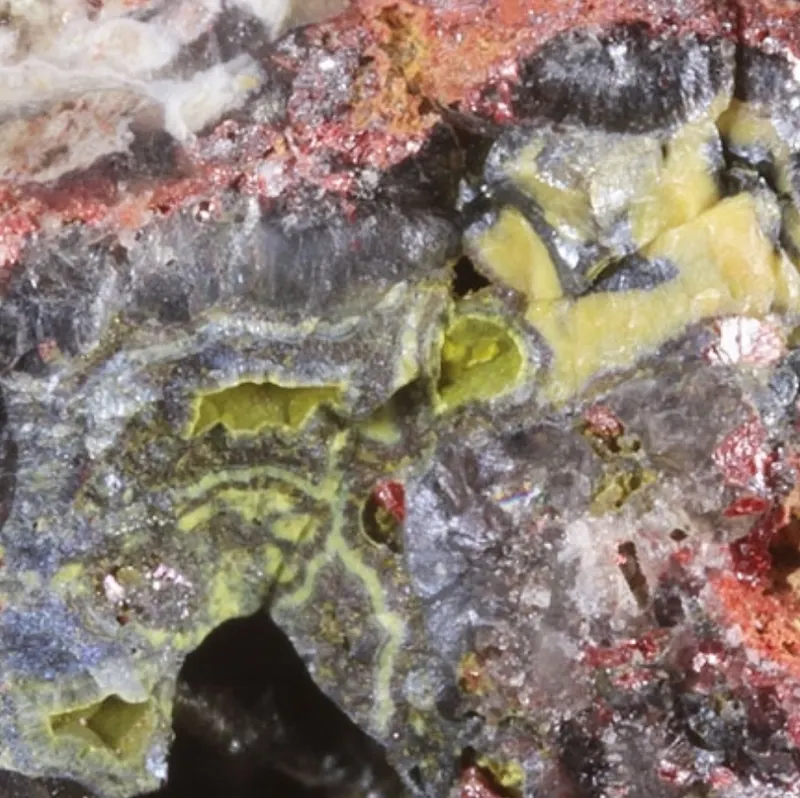

Colour
Freshly exposed material is lemon-yellow to orangish yellow · exposed surfaces range from dark olive-green to a lighter yellowish green to dark green-brown
Streak
Pale green with a yellow tinge
Tenacity
brittle
Fracture
Sub-Conchoidal
Density
9.4 g/cm³

Optical

Optical type
Biaxial
Refractive index
2.1 – 2.58
Surface relief
Very high
Principal indices
nα 2.10 · nγ 2.58
Pleochroism
Weak

In polished section, not pleochroic

Dispersion
strong
Optical colour
gray to slightly lighter gray,
Bireflectance
Weak to strong
Internal reflections
pale lemon-yellow
Tropism
Anisotropic
UV response
Nonfluorescent
Michel-Lévy diagramhighlighted lineδ = 0.4800
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]4800 nmhigh order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation4800 nm
Orderhigh order
XPL colour

Crystallography

Crystal system
Monoclinic
Cell parameters
a = 11.72 Å · b = 7.69 Å · c = 5.96 Å
Cell angles
β = 112.07 °
Ratio a:b:c
1 : 0.656 : 0.509
Z
2
Twinning

Polysynthetically twinned on (100)

Type-locality form

Thin crusts on fracture surfaces; disseminated rounded to mammillary masses; hollow mammillary nodules.

Comment

Point Group: 2/m; m; or 2:;: Space Group: C2/m; Cm; or C2: a

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
80HgMercuryMercury6200.5921203.552
87.74%
8OOxygenOxygen715.999111.993
8.16%
14SiSiliconSilicon228.08556.170
4.10%
Total1371.715100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Edgarbaileyiet
  • IMA1988-028

In other languages

German
Edgarbaileyit · IMA 1988-028
Italian
Edgarbaileyite

Classification

Strunz
10th ed.

9.BC.25

  • 9SilicatesClass
  • 9.BSorosilicatesDivision
  • 9.BCSi2O7 groups, without non-tetrahedral anions; cations in octahedral [6] and greater coordinationGroup
  • 9.BC.25EdgarbaileyiteSpecies
Dana
8th ed.

55.05.01.01

  • 55Sorosilicates Si2o7 Groups, Generally with No Additional AnionsClass
  • 55.05Si2O7 Groups, Generally with No Additional Anions with dimeric cationsType
  • 55.05.01— unnamed intermediate level —Group
  • 55.05.01.01EdgarbaileyiteSpecies
CIM

14.11.6

  • 14Silicates not Containing AluminumClass
  • 14.11Silicates of Th and HgGroup
  • 14.11.6EdgarbaileyiteSpecies

Literature, links & citation

Citations
  1. 1990Angel, R. J., Cressey, G., Criddle, A. (1990) Edgarbaileyite, Hg6Si2O7: The crystal structure of the first mercury silicate. American Mineralogist, 75 (9-10) 1192-1196
  2. 1990Jambor, John L., Burke, Ernst A. J. (1990) New Mineral Names. American Mineralogist, 75 (11-12) 1431-1437
  3. 1990Erd, Richard C., Laflamme, J.H.G., Bonardi, Maurizio, Criddle, Alan J., Stanley, Christopher J., Cressey, Gordon, Angel, Ross J., Roberts, Andrew C. (1990) Edgarbaileyite, the First Known Silicate of Mercury, from California and Texas. The Mineralogical Record, 21 (3) 215-220
  4. 1997Mandarino, Joseph A. (1997) New Minerals 1990-1994. The Mineralogical Record Inc., Tuscon, Arizona. 220pp.
  5. 2001(2001) Edgarbaileyite. Handbook of Mineralogy. Mineralogical Society of America
