Edwindavisite

Cu(C2O4)(NH3)
IMA status
  • Approved
IMA symbol
Ewd
IMA approved
2023
Also known as
  • Edwindavisiet

Where it forms, where it's found

Geological setting

The area where the edwindavisite specimens were collected has an unusual bat guano-related, secondary mineral assemblage, from which a number of new mineral species have been discovered. This mine is a former Cu-Pb-Au-Ag-Mo-V-baryte-fluorspar mine that exploited veins presumed to be related to the intrusion of an andesite porphyry dike into Tertiary volcanic rocks.

Type locality
125 foot level
  1. Rowley Mine
  2. Theba
  3. Painted Rock Mining District
  4. Painted Rock Mountains
  5. Maricopa County
  6. Arizona
  7. USA

33.0492°, -113.0330°

1recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789102/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
green
Streak
pale green
Tenacity
brittle
Cleavage
Perfect

(100)

Density
2.55 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 26° · 2V calc = 2.64°
Refractive index
1.55 – 1.755
Surface relief
High
Principal indices
nα 1.550 · nβ 1.559 · nγ 1.755
Pleochroism
Visible

pleochroism is X = light green, Y = pale green, Z = deep green, with Y < X << Z.

Dispersion
dispersion is distinct with r > v.
Michel-Lévy diagramhighlighted lineδ = 0.2050
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]2050 nm4th order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation2050 nm
Order4th order
XPL colour

Crystallography

Crystal system
Orthorhombic
Space group
Pbca
Cell parameters
a = 11.1998(10) Å · b = 9.4307(9) Å · c = 8.3977(7) Å
Ratio a:b:c
1 : 0.842 : 0.750
Z
8
Twinning

none

Parting
none
Type-locality form

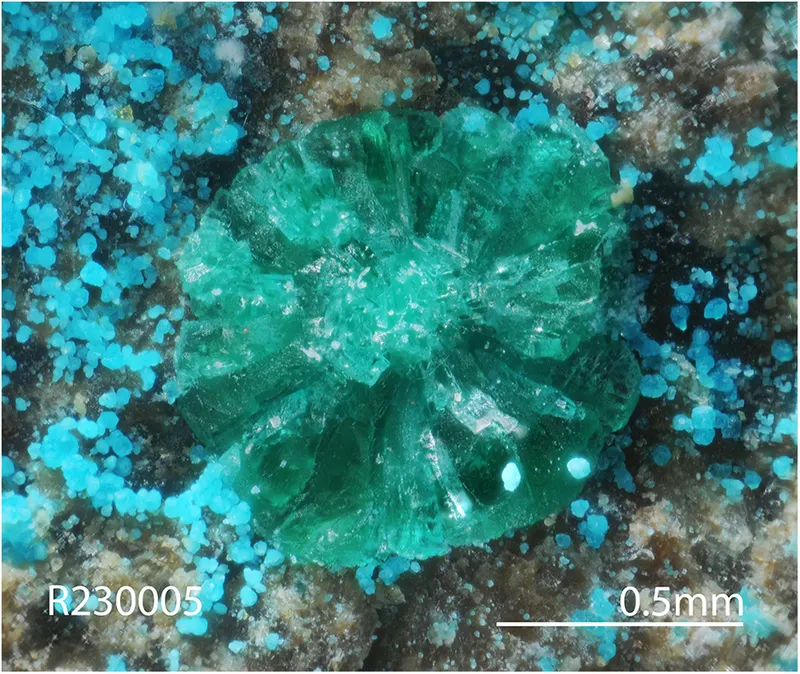

occurs as fans or sprays of bladed or prismatic crystals (up to 0.50 x 0.08 x 0.06 mm),

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen415.99963.996
37.96%
29CuCopperCopper163.54663.546
37.69%
6CCarbonCarbon212.01124.022
14.25%
7NNitrogenNitrogen114.00714.007
8.31%
1HHydrogenHydrogen31.0083.024
1.79%
Total168.595100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From Mindat formula

Synonyms

  • Edwindavisiet

In other languages

German
Edwindavisit · IMA 2023-056

Classification

Strunz
10th ed.

10.AB

  • 10Organic CompoundsClass
  • 10.ASalts of organic acidsDivision
  • 10.ABOxalatesGroup
  • 10.ABEdwindavisiteSpecies

Literature, links & citation

Citations
  1. 2023Bosi, Ferdinando, Hatert, Frédéric, Pasero, Marco, Mills, Stuart J. (2023) Newsletter 75. Mineralogical Magazine, 1-4 doi:10.1180/mgm.2023.76DOI: 10.1180/mgm.2023.76
  2. 2025Yang, Hexiong; Gu, Xiangping; Kampf, Anthony R.; Marty, Joe; Gibbs, Ronald B.; Downs, Robert T. (2025) Edwindavisite, Cu(C2O4)(NH3), a new oxalate mineral, from the Rowley mine, Maricopa County, Arizona, USA. Mineralogical Magazine, 89 (4). 526-534 doi:10.1180/mgm.2025.16DOI: 10.1180/mgm.2025.16
