Elyite

CuPb4(SO4)O2(OH)4 · H2O
IMA status
  • Approved
IMA symbol
Ely
Discovered
1971
IMA approved
1971
Also known as
  • Elyiet
  • IMA1971-043

Where it forms, where it's found

Geological setting

Voids in oxidizing Lead-Copper-Zinc sulfide ores.

Slag product.

Type locality
Caroline tunnel
  1. Ward Mine
  2. Ward Mining District
  3. White Pine County
  4. Nevada
  5. USA

39.0791°, -114.8706°

85recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789102/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent

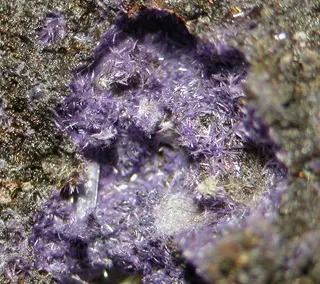

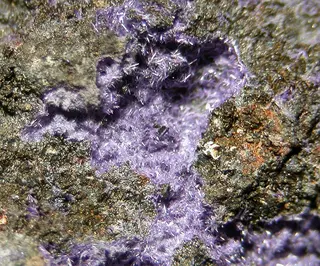

Colour
Purple
Streak
pale violet to white
Tenacity
sectile
Cleavage
Distinct/Good

(001) good

Density
6 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 66° · 2V calc = 58°
Refractive index
1.99 – 1.994
Surface relief
Very high
Principal indices
nα 1.990 · nβ 1.993 · nγ 1.994
Pleochroism
Visible

Deep to pale purple.

Dispersion
r > v
UV response
None
Michel-Lévy diagramhighlighted lineδ = 0.0040
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]40 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation40 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
P21/c
Cell parameters
a = 14.233(2) Å · b = 11.532(1) Å · c = 14.611(1) Å
Cell angles
β = 100.45(2) °
Ratio a:b:c
1 : 0.810 : 1.027
Unit cell volume
2358.4 ų
Z
8
Twinning

Mirror twinning on (100)

Type-locality form

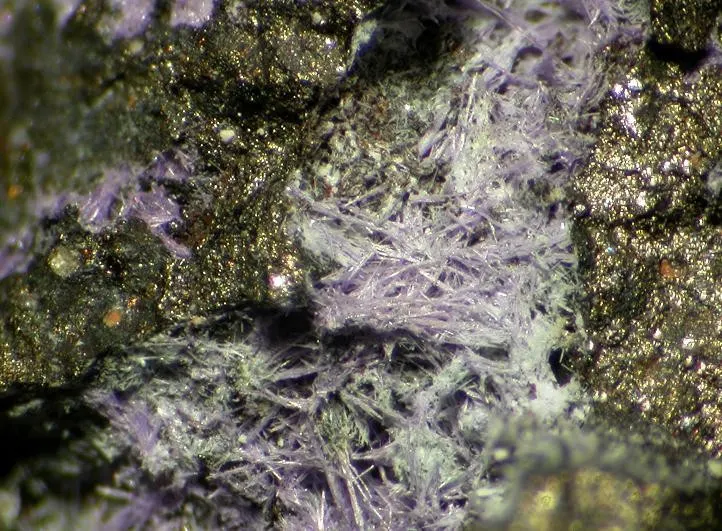

Light violet prismatic crystals.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
82PbLeadLead4207.200828.800
74.91%
8OOxygenOxygen1115.999175.989
15.90%
29CuCopperCopper163.54663.546
5.74%
16SSulfurSulfur132.06032.060
2.90%
1HHydrogenHydrogen61.0086.048
0.55%
Total1106.443100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Elyiet
  • IMA1971-043

In other languages

German
Elyit · IMA 1971-043
Spanish
Elyita
Italian
Elyite

Classification

Strunz
10th ed.

7.DF.65

  • 7SulfatesClass
  • 7.DSulfates (selenates, etc.) with additional anions, with H2ODivision
  • 7.DFWith large and medium-sized cationsGroup
  • 7.DF.65ElyiteSpecies
Dana
8th ed.

30.01.02.01

  • 30Anhydrous Sulfates Containing Hydroxyl or HalogenClass
  • 30.01(AB)m(XO4)pZq, where m:p>2:1Type
  • 30.01.02— unnamed intermediate level —Group
  • 30.01.02.01ElyiteSpecies
CIM

25.7.7

  • 25SulphatesClass
  • 25.7Sulphates of PbGroup
  • 25.7.7ElyiteSpecies

Literature, links & citation

Citations
  1. 1972Williams, Sidney A. (1972) Elyite, basic lead-copper sulfate, a new mineral from Nevada. American Mineralogist, 57 (3-4) 364-367
  2. 1997Miyawaki, R., Matsubara, S., and Hashimoto, E. (1997) Elyite from the Mizuhiki Mine, Fukushima Prefecture, Japan. Bulletin of the National Science Museum, Series C: Geology and Paleontology: 23: 27-33.
  3. 1998Jambor, John L., Roberts, Andrew C. (1998) New mineral names. American Mineralogist, 83 (3-4) 400-403
  4. 2000Kolitsch, Uwe, Giester, Gerald (2000) Elyite, Pb4Cu(SO4)O2(OH)4·H2O: Crystal structure and new data. American Mineralogist, 85 (11) 1816-1821 doi:10.2138/am-2000-11-1226 DOI: 10.2138/am-2000-11-1226
  5. 2005(2005) Elyite. Handbook of Mineralogy. Mineralogical Society of America
