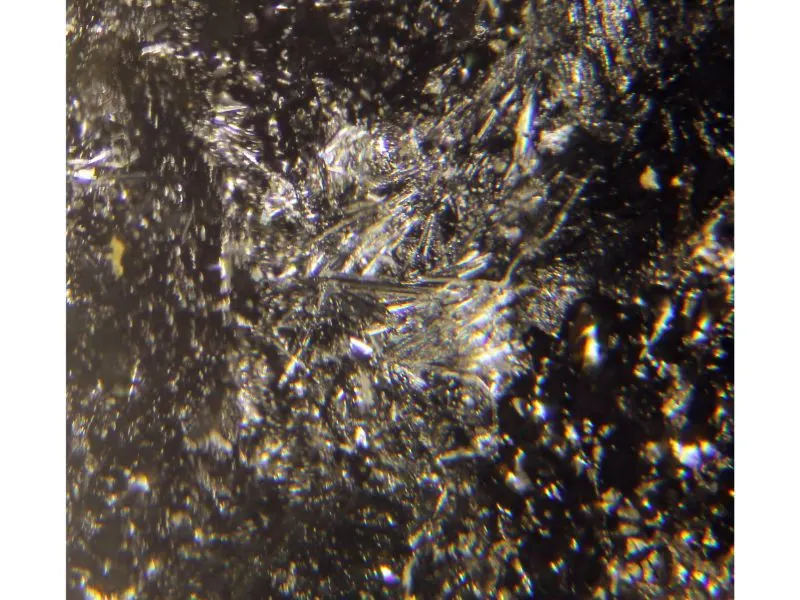

Erlianite

Fe2+4Fe3+2Si6O15(OH)8
IMA status
  • Approved
IMA symbol
Ern
Discovered
1986
Also known as
  • Erlianiet
  • IMA1985-042

Where it forms, where it's found

Geological setting

Shear planes in iron ore.

Type locality
Harhada Mine
  1. Wenduermiao Fe deposit
  2. Erenhot City (Erlianhaote Co.)
  3. Xilingol League (Xilinguole Prefecture)
  4. Inner Mongolia
  5. China

Physical

Hardness
123456789103.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Opaque
Colour
Black
Streak
Brownish
Cleavage
Perfect

(001) and (100)

Density
3.11 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 56 – 59° · 2V calc = 80°
Refractive index
1.667 – 1.679
Surface relief
High
Principal indices
nα 1.667 · nβ 1.674 · nγ 1.679
Pleochroism
Weak

Y = Z = dark brown; X = light brown.

Dispersion
r > v or r < v
UV response
Not fluorescent.
Notes

Absorption: Z ≈ Y > X.

Michel-Lévy diagramhighlighted lineδ = 0.0120
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]120 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation120 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Cell parameters
a = 23.2 Å · b = 9.2 Å · c = 13.18 Å
Ratio a:b:c
1 : 0.397 : 0.568
Type-locality form

Fibres or flakes. Aggregates are lath-like, and up to 1-2 cm.

Comment

space group may be Pmmn or Pm21n, but no suitable single crystal was found.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen2315.999367.977
41.83%
26FeIronIron655.845335.070
38.09%
14SiSiliconSilicon628.085168.510
19.16%
1HHydrogenHydrogen81.0088.064
0.92%
Total879.621100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Ti
  • Al
  • Mn
  • Ca
  • K
  • Na
  • P

Synonyms

  • Erlianiet
  • IMA1985-042

In other languages

German
Erlianit · IMA 1985-042
Italian
Erlianite

Classification

Strunz
10th ed.

9.HC.05

  • 9SilicatesClass
  • 9.HUnclassified silicatesDivision
  • 9.HCWith Mn, FeGroup
  • 9.HC.05ErlianiteSpecies
Dana
8th ed.

78.05.05.01

  • 78Unclassified SilicatesClass
  • 78.05Unclassified silicates possible phyllosilicatesType
  • 78.05.05— unnamed intermediate level —Group
  • 78.05.05.01ErlianiteSpecies
CIM

14.14.6

  • 14Silicates not Containing AluminumClass
  • 14.14Silicates of V and BiGroup
  • 14.14.6ErlianiteSpecies

Literature, links & citation

Citations
  1. 1986Feng, Xiancan; Yang, Ruiying; Song, Guisen; Li, Chenggui; and Lu, Guojun (1986): Erlianite, a new vanadium- and iron-bearing silicate mineral. Acta Mineralogica Sinica, 6(4), 333-337.
  2. 1986Feng, Xiancan, Yang, Ruiying (1986) Erlianite, a new vanadium- and iron-bearing silicate mineral. Mineralogical Magazine, 50 (356) 285-289 doi:10.1180/minmag.1986.050.356.13 DOI: 10.1180/minmag.1986.050.356.13
  3. 1987Hawthorne, Frank C., Jambor, John L., Bladh, Kenneth W., Burke, Ernst A. J., Grice, Joel D., Phillips, Don, Roberts, Andrew C., Schedler, Robert A., E., James (1987) New mineral names. American Mineralogist, 72 (9-10) 1023-1028
  4. 2001(2001) Erlianite. Handbook of Mineralogy. Mineralogical Society of America
