Fassinaite

Pb2(CO3)(S2O3)
IMA status
  • Approved
IMA symbol
Fas
IMA approved
2011
Also known as
  • Fassinaiet
  • IMA2011-048
  • Unnamed (Pb Thiosulphate Carbonate)

Where it forms, where it's found

Geological setting

The mineralization is linked to Mid-Triassic calc-alkaline magmatism. Hydrothermal fluids related to volcanism deposited sulphides, baryte and Fe- and Mn-bearing minerals at the boundary between Ladinic volcanites and limestone of the Mount Spitz Formation. Supergene minerals including sulphates, carbonates and arsenates of Zn, Pb and Cu are very common.

Type locality
Trentini Mine
  1. Contrada Trentini
  2. Monte Naro - Riolo Valley side
  3. Monte Naro
  4. Torrebelvicino
  5. Vicenza Province
  6. Veneto
  7. Italy

45.7108°, 11.3050°

17recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789101.5 – 2/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Colourless · white
Streak
White
Tenacity
brittle
Cleavage
None Observed
Fracture
Irregular/Uneven
Density
6.084 g/cm³

Optical

Surface relief
Very high
Principal indices
n 2.13
Birefringence
Very high.
Extinction
Straight. Crystals are length-slow.
Notes

Fassinaite has intense internal reflections, which do not allow satisfactory optical data to be collected; the crystals are length-slow and have very high birefringence.

Crystallography

Crystal system
Orthorhombic
Space group
#71
Cell parameters
a = 16.343(1) Å · b = 8.760(2) Å · c = 4.592(3) Å
Ratio a:b:c
1 : 0.536 : 0.281
Unit cell volume
657.4 ų
Z
2
Morphology

The crystals are acicular to prismatic [010], with a flattened diamond-shaped cross-section. The Austrian crystals are sufficiently well developed to allow determination of some of the crystal forms: the prism (101) is large and dominant, with a flat chisel-shaped {<em>hk</em>0} termination, possibly (110). Small faces which are possibly (011) are rarely present. Further forms are minute and difficult to measure as they are commonly rounded.

Twinning

None observed.

Type-locality form

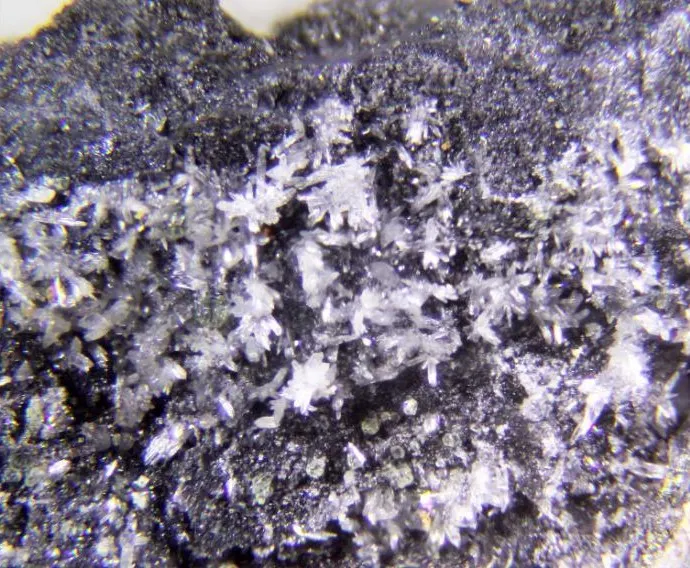

Radiating aggregates of acicular, colourless crystals up to 0.2 mm long.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
82PbLeadLead2207.200414.400
70.65%
8OOxygenOxygen615.99995.994
16.37%
16SSulfurSulfur232.06064.120
10.93%
6CCarbonCarbon112.01112.011
2.05%
Total586.525100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Fassinaiet
  • IMA2011-048
  • Unnamed (Pb Thiosulphate Carbonate)

In other languages

German
Fassinait · IMA 2011-048
Italian
fassinaite

Classification

Strunz
10th ed.

7.JA.15

  • 7SulfatesClass
  • 7.JThiosulfatesDivision
  • 7.JAThiosulfates of PbGroup
  • 7.JA.15FassinaiteSpecies

Literature, links & citation

Citations
  1. 2010Kolitsch, U. (2010) Pb2(S2O3)(CO3): The first naturally occurring thiosulphate carbonate and its atomic arrangement. 20th General Meeting of the IMA (IMA2010), abstract in CD of Abstracts. Budapest, Hungary. 489pp.
  2. 2011Nestola, F., Bindi, L., Guastoni, A., Zorzi, F., Nasdala, L. (2011) Pb2(CO3)(S2O3), the first mineral with coexisting carbonate and thiosulfate groups from Trentini mine, Vicenza, Italy. Geoitalia 2011,, abstract in Plinius 37. Turin, Italy,. 308pp.
  3. 2011Williams, P. A., Hatert, F., Pasero, M., Mills, S. J. (2011) New minerals and nomenclature modifications approved in 2011, CNMNC Newsletter No. 10. Mineralogical Magazine, 75 (5) 2549-2561 doi:10.1180/minmag.2011.075.5.2549 DOI: 10.1180/minmag.2011.075.5.2549
  4. 2011Bindi, L., Nestola, F., Kolitsch, U., Guastoni, A., Zorzi, F. (2011) Fassinaite, Pb22+(S2O3)(CO3), the first mineral with coexisting thiosulphate and carbonate groups: description and crystal structure. Mineralogical Magazine, 75 (6) 2721-2732 doi:10.1180/minmag.2011.075.6.2721DOI: 10.1180/minmag.2011.075.6.2721
  5. 2012Kolitsch, U., Bindi, L., Nestola, F., Guastoni, A., Zorzi, F., Poeverlein, R. (2012) Fassinait, ein neues Bleimineral aus Italien, Österreich und Deutschland. Lapis, 37 (1) 52-53
