Fluoborite

Mg3(BO3)F3
IMA status
  • Approved
  • Grandfathered
IMA symbol
Fbo
Discovered
1926
Also known as
  • Fluoboriet
  • Noceran
  • Nocerin
  • +4 more

Where it forms, where it's found

Geological setting

Contact metasomatic magnetite deposit.

Type locality
Tallgruvan
  1. Häste ore field
  2. Norberg
  3. Västmanland County
  4. Sweden

60.1111°, 15.9954°

51recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous · Silky
Transparency
Transparent · Translucent
Colour
Colourless · violet or white · colourless in transmitted light
Streak
White
Cleavage
Distinct/Good

good On [0001].

Density
2.98 g/cm³

Optical

Optical type
Uniaxial (-)
Refractive index
1.534 – 1.57
Surface relief
Moderate
Principal indices
nω 1.570 · nε 1.534
UV response
White (SW UV)(Franklin Marble, NJ & NY, USA).
Michel-Lévy diagramhighlighted lineδ = 0.0360
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]360 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation360 nm
Order1st order
XPL colour

Crystallography

Crystal system
Hexagonal
Space group
#108
Cell parameters
a = 8.8612(12) Å · c = 3.1021(6) Å
Z
3

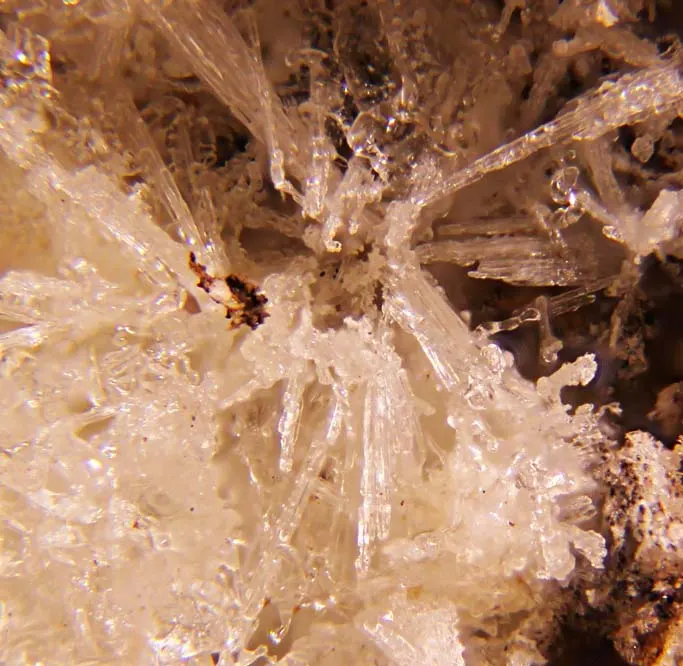

Morphology

Acicular hexagonal prisms without measurable terminal faces. Fan-shaped or stellate groups. Fluffy, felted aggregates; rice-like grains.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
12MgMagnesiumMagnesium324.30572.915
38.64%
9FFluorineFluorine318.99856.994
30.20%
8OOxygenOxygen315.99947.997
25.43%
5BBoronBoron110.81010.810
5.73%
Total188.716100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Fluoboriet
  • Noceran
  • Nocerin
  • Nocerina
  • Nocerit
  • Nocerita
  • Nocerite

In other languages

French
Fluoborite
German
Fluoborit
Italian
fluoborite
Chinese
氟硼镁石

Classification

Strunz
10th ed.

6.AB.50

  • 6BoratesClass
  • 6.AMonoboratesDivision
  • 6.ABBO3, with additional anions; 1(D) + OH, etc.Group
  • 6.AB.50FluoboriteSpecies
Dana
8th ed.

25.01.02.01

  • 25Anhydrous Borates Containing Hydroxyl or HalogenClass
  • 25.01MonoboratesType
  • 25.01.02— unnamed intermediate level —Group
  • 25.01.02.01FluoboriteSpecies
CIM

10.1.4

  • 10Borates with other anionsClass
  • 10.1Borates with halideGroup
  • 10.1.4FluoboriteSpecies

Group, growth & confusion

Often grow together
2 minerals
Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 1926Geijer, Per (1926) Norbergite and Fluoborite, two new minerals from the Norberg mining district. Geologiska Föreningen i Stockholm Förhandlingar, 48 (1). 84-85 doi:10.1080/11035892609445642DOI: 10.1080/11035892609445642
  2. 1927Foshag, W.F. (1927) New Mineral Names. American Mineralogist, 12 (6). 265-266
  3. 1927Geijer (1927) Sver. Geol. Undersök, Ser. C, no. 343, Yearbook 20, no. 4: 26.
  4. 1929Bauer, L. H., Berman, Harry (1929) Mooreite, a new mineral, and fluoborite from Sterling Hill, New Jersey. American Mineralogist, 14 (5) 165-172
  5. 1938Scherillo A. (1938) Ricerche sulla struttura cristallina della nocerite (= Fluoborite). Periodico di Mineralogia – Roma, 229- 248.
