Fluoro-edenite

NaCa2Mg5(Si7Al)O22F2
IMA status
  • Approved
IMA symbol
Fled
IMA approved
2000
Also known as
  • Fluoredenite
  • Fluoro-edeniet
  • IMA1994-059
  • +1 more

Where it forms, where it's found

Geological setting

In <G>autoclasts</G> of altered <G>benmoreitic</G> lavas.

Type locality
Mt Calvario
  1. Biancavilla
  2. Metropolitan City of Catania
  3. Sicily
  4. Italy

37.6411°, 14.8758°

34recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105 – 6/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous
Transparency
Transparent
Colour
Light green to light yellow · grey-black
Streak
Grey-white, yellowish white
Tenacity
brittle
Cleavage
Perfect

on (110)

Fracture
Conchoidal
Density
3.09 g/cm³

Optical

Optical type
Biaxial (-) · 2V calc = 78°
Refractive index
1.6058 – 1.6245
Surface relief
Moderate
Principal indices
nα 1.6058 · nβ 1.6170 · nγ 1.6245
Pleochroism
Not Visible
Dispersion
r < v
Extinction
Y ≡ β ⊥ (010), γ ⊥ Z = 26°.
Luminescence
Nonfluorescent
Michel-Lévy diagramhighlighted lineδ = 0.0187
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]187 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation187 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
#13
Cell parameters
a = 9.847 Å · b = 18.017 Å · c = 5.268 Å
Cell angles
β = 104.84 °
Ratio a:b:c
1 : 1.830 : 0.535
Unit cell volume
903.45 ų
Z
2
Morphology

Prismatic to acicular with forms (110), (010), and {0kl}.

Twinning

None mentioned.

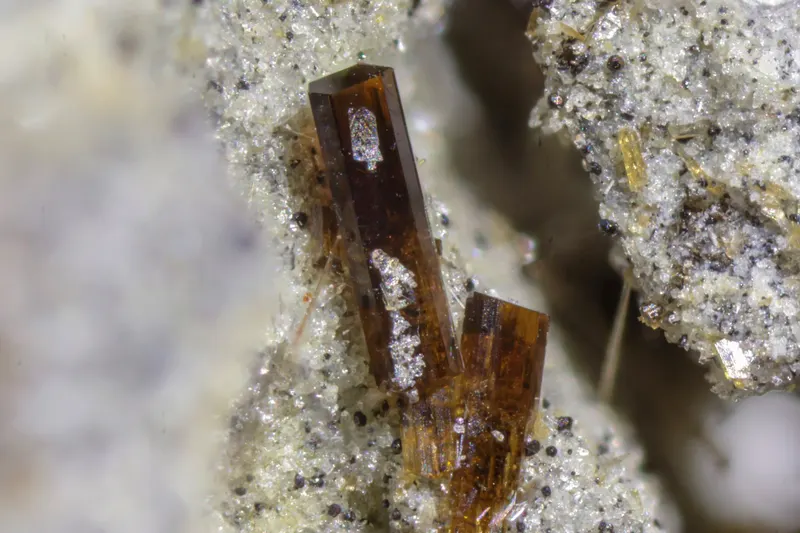

Type-locality form

Prismatic and acicular crystals, often occurring as parallel bundles. The largest prismatic crystals (≥2 mm) are embedded in the matrix, whereas smaller acicular crystals line cavities where they are often perched on bright lamellar hematite and commonly show fibrous and asbestiform terminations.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen2215.999351.978
41.99%
14SiSiliconSilicon728.085196.595
23.46%
12MgMagnesiumMagnesium524.305121.525
14.50%
20CaCalciumCalcium240.07880.156
9.56%
9FFluorineFluorine218.99837.996
4.53%
13AlAluminiumAluminium126.98226.982
3.22%
11NaSodiumSodium122.99022.990
2.74%
Total838.222100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Fluoredenite
  • Fluoro-edeniet
  • IMA1994-059
  • IMA2000-049

In other languages

German
Fluoredenit · Fluoro-Edenit · Fluoroedenit
Italian
fluoro-edenite

Classification

Strunz
10th ed.

9.DE.15

  • 9SilicatesClass
  • 9.DInosilicatesDivision
  • 9.DEInosilicates with 2-periodic double chains, Si4O11; ClinoamphibolesGroup
  • 9.DE.15Fluoro-edeniteSpecies

Group, growth & confusion

In the same group
3 members

Literature, links & citation

Citations
  1. 1955Kohn, J. A.; Comeforo, J. E. (1955) Synthetic asbestos investigations, II: X-ray and other data on synthetic fluor-richterite, -edenite, and boron edenite. American Mineralogist, 40 (5-6). 410-421
  2. 1970Coffee, Robert (1970) Franklin #254 Fluoredenite. The Picking Table, 11(2), 4-6.
  3. 1994Boschmann, K.F., Burns, P.C., Hawthorne, F.C., Raudsepp, M., Turnock, A.C. (1994) A-site disorder in synthetic fluor-edenite: a crystal-structure study. The Canadian Mineralogist, 32, 21-30.
  4. 2001Gianfagna, Antonio, Oberti, Roberta (2001) Fluoro-edenite from Biancavilla (Catania, Sicily, Italy): Crystal chemistry of a new amphibole end-member. American Mineralogist, 86 (11) 1489-1493 doi:10.2138/am-2001-11-1217 DOI: 10.2138/am-2001-11-1217
  5. 2006Hawthorne, F. C., Oberti, R. (2006) On the classification of amphiboles. The Canadian Mineralogist, 44 (1) 1-21 doi:10.2113/gscanmin.44.1.1DOI: 10.2113/gscanmin.44.1.1
